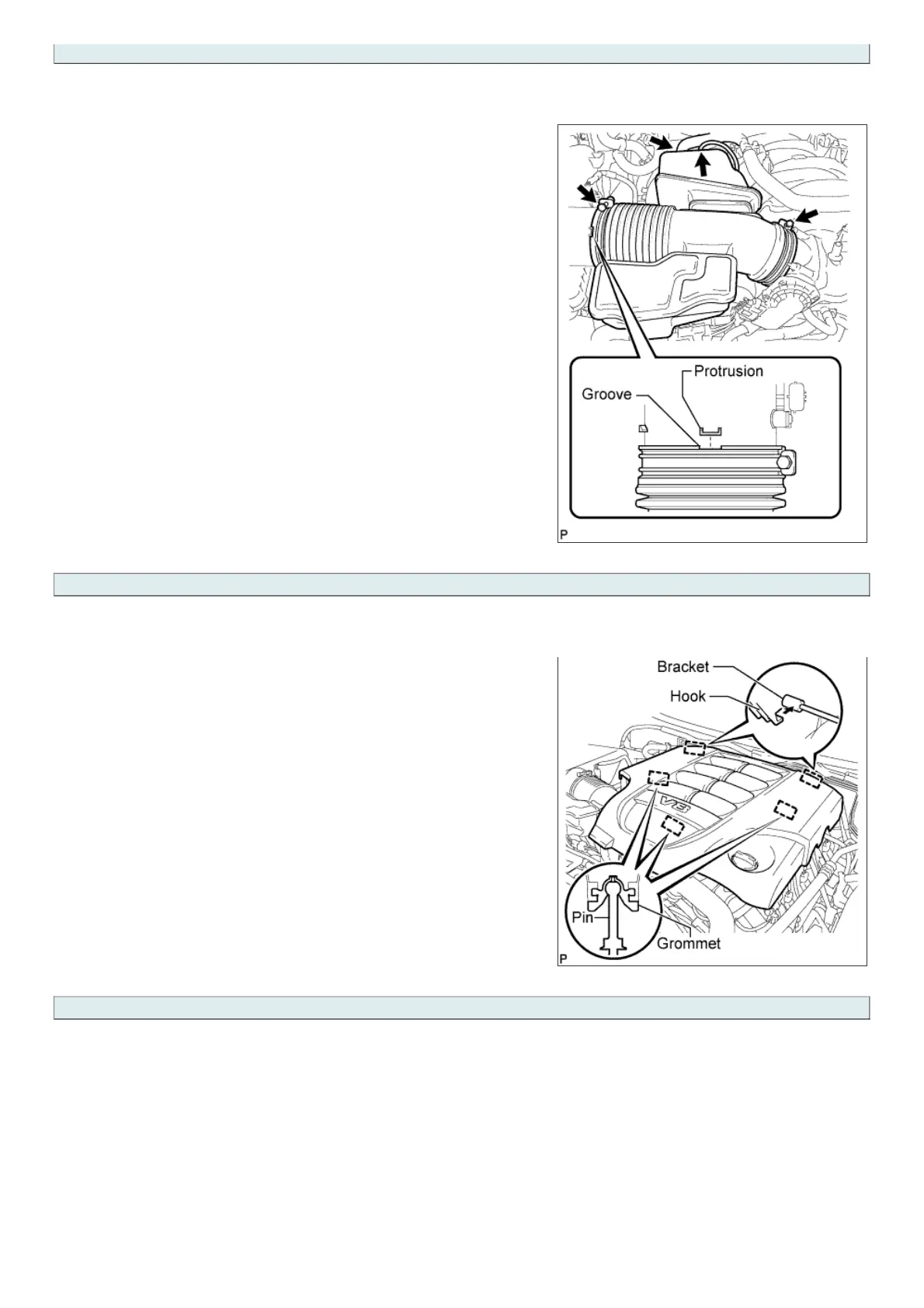

7. INSTALL AIR CLEANER HOSE ASSEMBLY
a. Install the air cleaner hose so that the protrusion of the air cleaner cap aligns
with the groove of the hose as shown in the illustration.
b. Tighten the 2 clamps.
Torque:
5.0 N*m{ 51 kgf*cm , 44 in.*lbf }
c. Connect the vacuum hose.
d. Connect the No. 2 ventilation hose.
8. INSTALL V-BANK COVER SUB-ASSEMBLY
a. Attach the 2 V-bank cover hooks to the bracket. Then align the 3 V-bank cover
grommets with the 3 pins, and press down on the V-bank cover to attach the
pins.
9. INSTALL FRONT FENDER APRON SEAL FRONT RH
a. Install the fender apron seal with the 3 clips.
To Next Page
