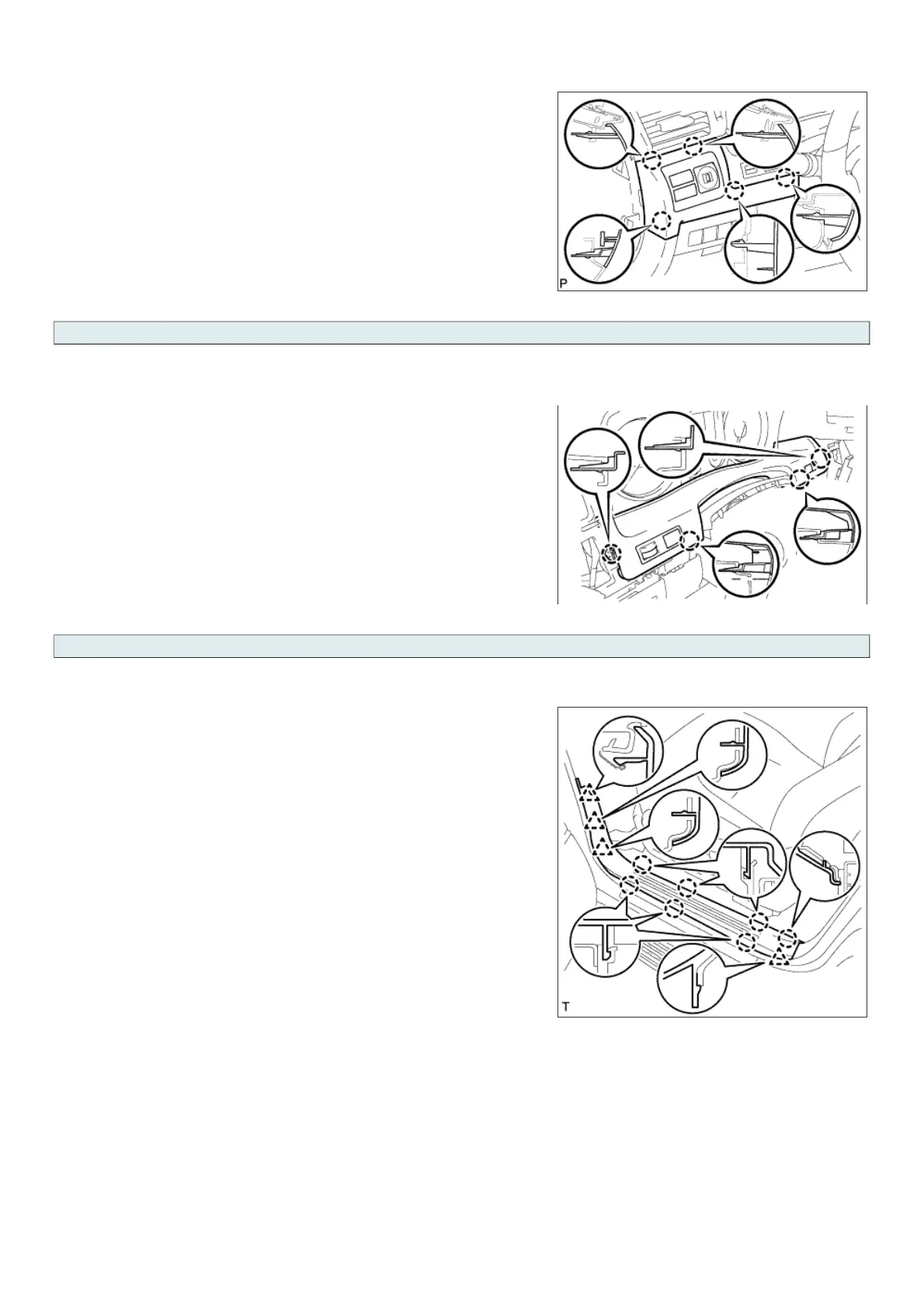

a. Detach the 5 claws.
b. Disconnect the connectors and remove the switch hole base.
17. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
a. Detach the 4 claws.
b. Disconnect the connectors and remove the finish panel.
18. REMOVE FRONT DOOR SCUFF PLATE LH
a. w/o Illumination:
i. Detach the 7 claws and 4 clips, and remove the scuff plate.
b. w/ Illumination:
i. Detach the 7 claws and 4 clips.
ii. Disconnect the connector and remove the scuff plate.
