24

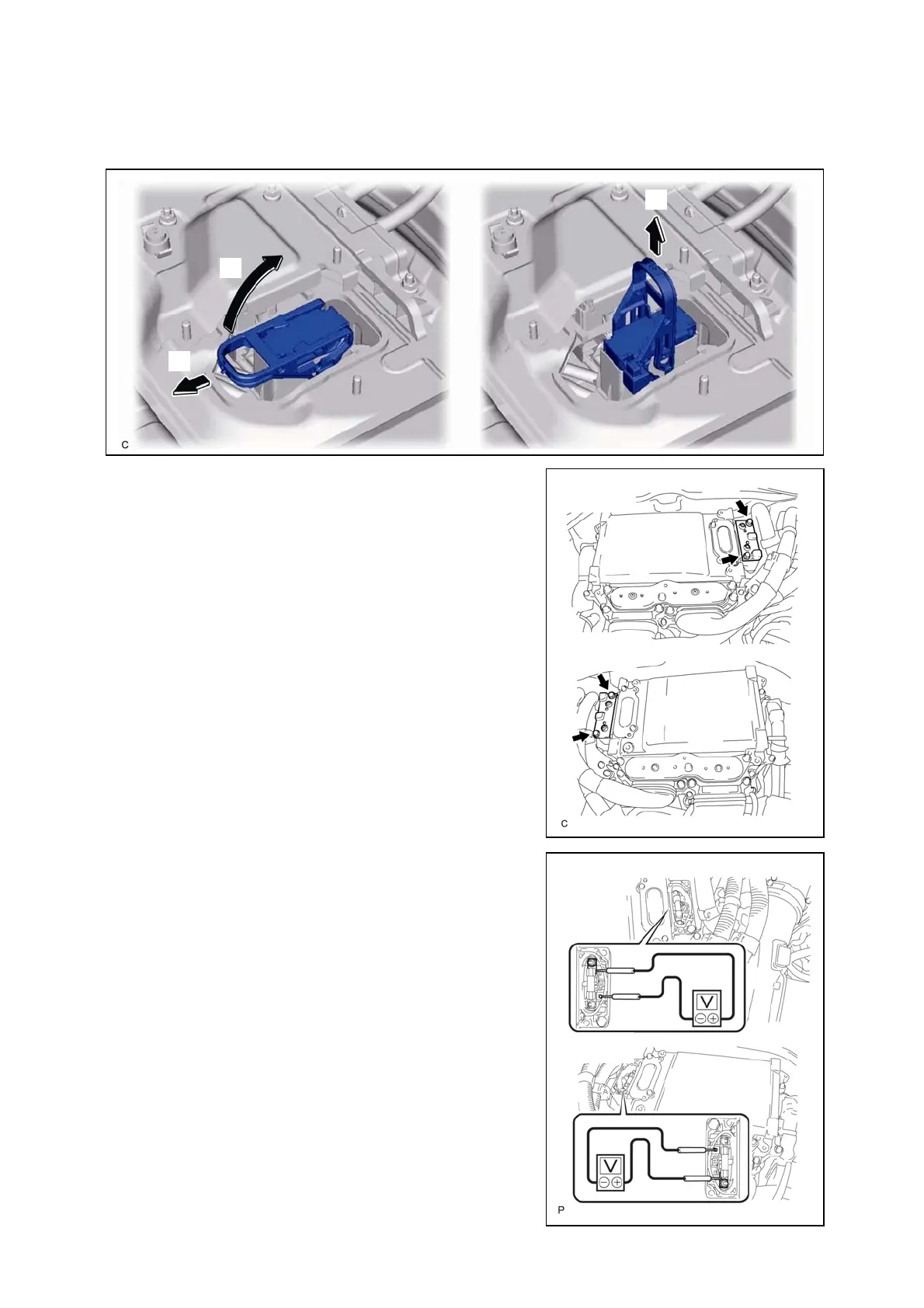

(1) Wear insulated gloves and rotate the handle of the service plug grip and remove the service
plug grip as indicated by the arrows, in the order shown in the illustration.
11. REMOVE CONNECTOR COVER ASSEMBLY
Caution:
Wear insulated gloves.
(1) Remove the 2 bolts and connector cover assembly
from the inverter with converter assembly.
Notice:
Make sure to pull the connector cover assembly
straight up, as a connector is connected to the bottom
of the cover.
12. CHECK TERMINAL VOLTAGE
Caution:
Wear insulated gloves.
Notice:
Do not allow any foreign matter or water to enter the
inverter with converter assembly.
(1) Using a voltmeter, measure the voltage between the
terminals of the 2 phase connectors.
Standard Voltage:
0 V
Hint:
Use a measuring range of DC 750 V or more on the
voltmeter.
1
2
3
for LHD:
for RHD:
for LHD:
for RHD:
To Next Page
