18. DISCONNECT REAR SEAT 3 POINT TYPE
OUTER BELT ASSEMBLY LH

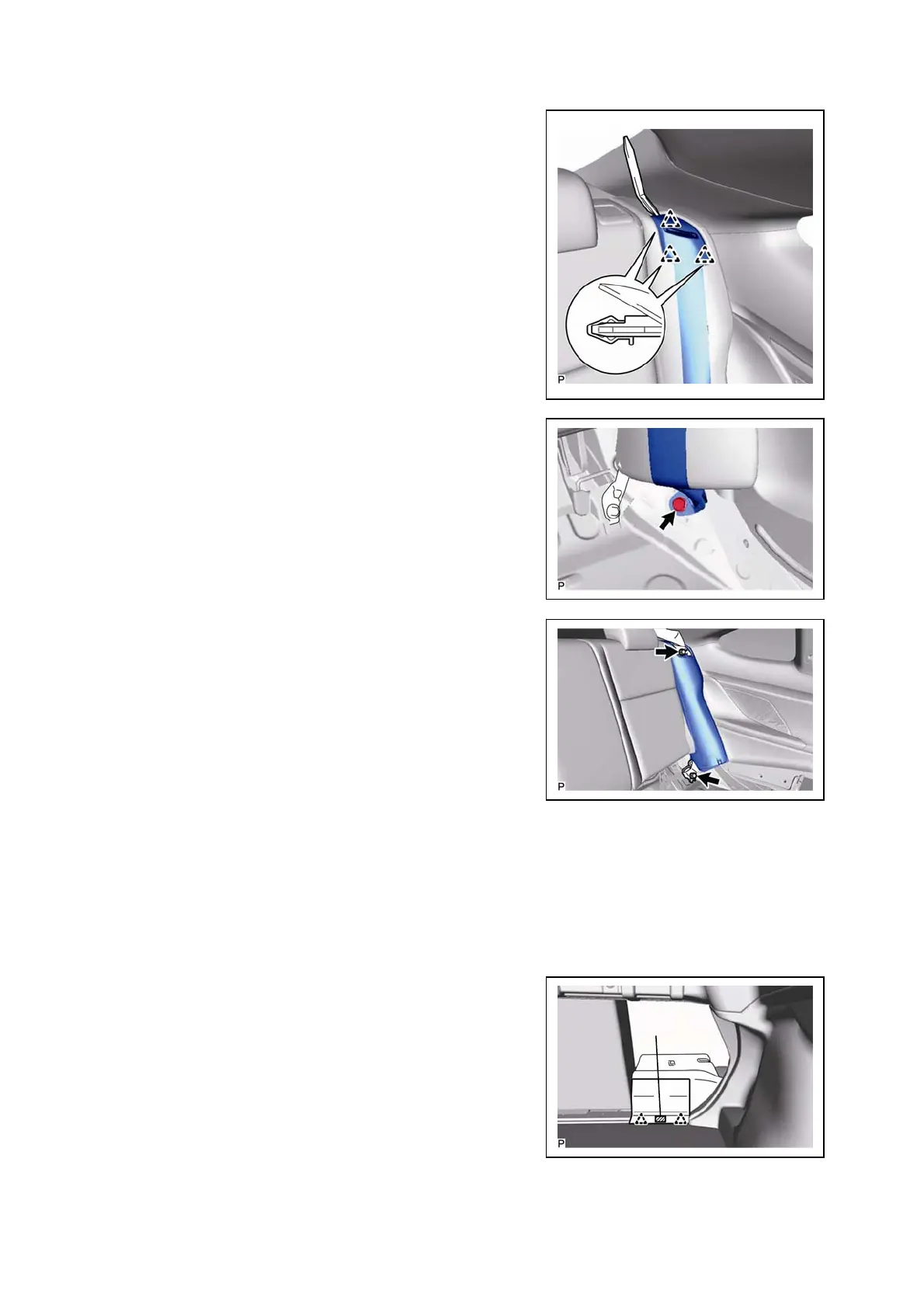

(1) Using a moulding remover, disengage the 3 clips
to disconnect the belt guide unit of the rear seat
3 point type outer belt assembly LH.
(2) Remove the bolt and disconnect the floor anchor
of the rear seat 3 point type outer belt assembly.
19. REMOVE REAR SIDE SEATBACK ASSEMBLY
LH
(1) Remove the 2 bolts.
(2) Pass the rear seat 3 point type outer belt assembly
LH through the rear side seatback assembly LH
and remove the rear side seatback assembly LH.
20. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH
Hint:
Use the same procedure as for the LH side.
21. REMOVE REAR SIDE SEATBACK ASSEMBLY RH
Hint:
Use the same procedure as for the LH side.
22. REMOVE REAR SEATBACK ASSEMBLY RH
(1) Fold the rear seatback assembly RH forward.
(2) Disengage the 2 clips and fastener.
Fastener
