Item Description Size Cat. Nr.
1 Union coupling + seal G2 F/M 711 18 025
2 Nipple G2 M/M - 150 mm
long
711 18 035
3 Threaded flange adapter G2 M - DN 63 ISO-K 711 18 126
4 Centering ring 63 ISO-K AL/NBR 268 07
5 Set of 4 clamps for M10 x 24 267 01
ISO-K flanges
6 Adapter for tubing G2 DN 50 711 18 015
7 PVC tubing 50 mm, 1 m long 711 18 325
8 Adapter for tubing G2 DN 60 711 18 016
9 PVC tubing 60 mm, 1 m long 711 18 326
10 Right-angle bend 90° 63 ISO K 887 25
11 Dust filter, paper
Dust filter, charcoal
Dust filter metal
Dust filter polyester
63 ISO K 951 68
711 27 125
711 27 126
711 27 127
12 Ball valve G2 F/F 711 30 107
13 Tee reducer bush G2-G2-G1/2 F/F/F 711 18 265
14 Elbow 90° G2 F/F 711 18 215
15 Dust filter, paper
Dust filter, charcoal
Dust filter, metal
Dust filter polyester
G2 M/F 951 65
711 27 122
711 27 123
711 27 124
16 Vacuum gauge G1/2 M 951 92
17 Ball valve G1/2 M/F 711 30 113
18 Threaded flange adapter G1/2 M - DN 16 KF 711 18 120
21 Condensate Trap G2 F -G2 F 951 44

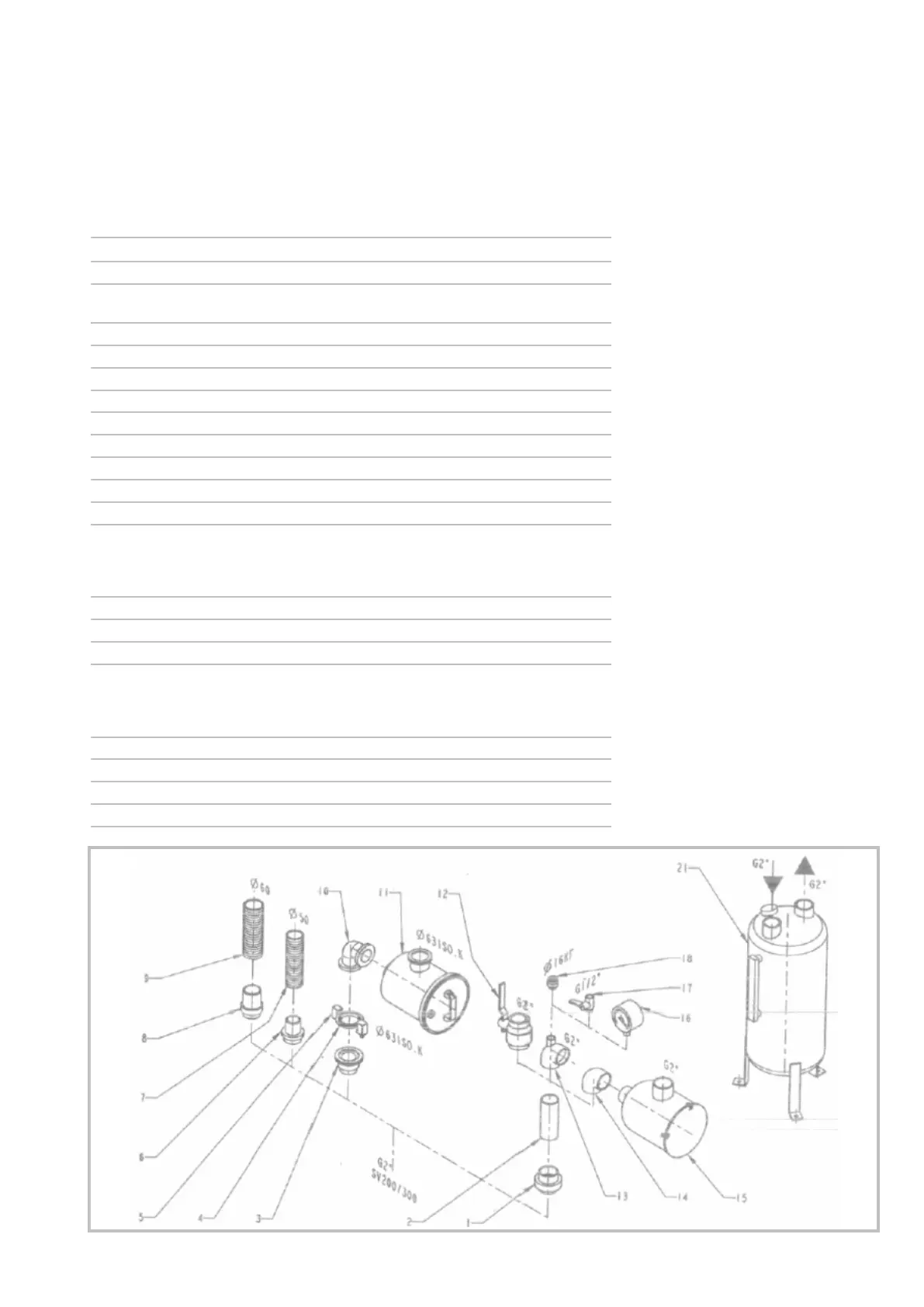

Fig. 3
1.4 Connection fittings
