| Installing the Switch
Installing an Optional SFP Transceiver
– 33 –
N
OTE
:
For International use, you may need to change the AC line cord. You
must use a line cord set that has been approved for the wall socket type in
your country.
3. Check the front-panel LEDs as the device is powered on to be sure the
Power LED is on green. If not, check that the power cable is correctly
plugged in.
INSTALLING AN OPTIONAL SFP TRANSCEIVER

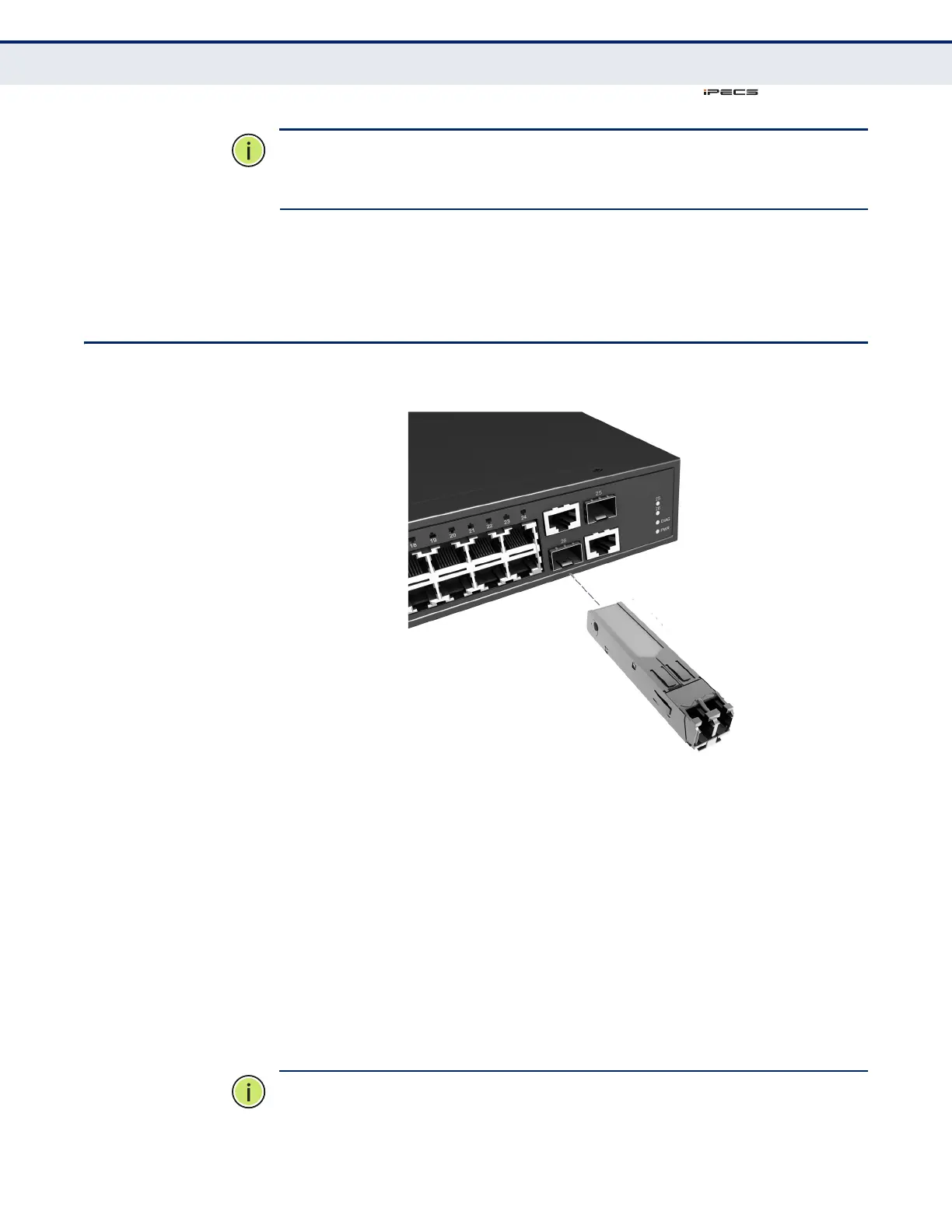

Figure 18: Installing an Optional SFP Transceiver into a Slot
These switches support 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, and
100BASE-FX SFP-compatible transceivers. To install an SFP transceiver, do
the following:To install an SFP transceiver, do the following:
To install an SFP transceiver, do the following:
1. Consider network and cabling requirements to select an appropriate
SFP transceiver type.
2. Insert the transceiver with the optical connector facing outward and the
slot connector facing down. Note that SFP transceivers are keyed so
they can only be installed in one orientation.
3. Slide the SFP transceiver into the slot until it clicks into place.
N
OTE
:
SFP transceivers are hot-swappable. The switch does not need to be
powered off before installing or removing the transceiver. However, always
first disconnect the network cable before removing the transceiver.
