PREPARATION
L( MONO)
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
ANTENNA IN
L( MONO)
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
ANTENNA
IN
Only 32/37/42/47/55LH5
***
, 42/47LH9
***
ANTENNA IN
L/MONO
R
AUDIO
VIDEO
AV IN2
IN 4
10
2
7
1
ANTENNA IN
RGB IN (PC)
RS-232C IN
(CONTROL&SERVICE)
AUDIO IN
1
2
COMPONENT IN
AUDIO
VIDEO
1(DVI)
2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
AV IN1
/DVI IN
3
(RGB/DVI)
OPTICAL DIGITAL
AUDIO OUT
3
2
8
5
9
4
6
7

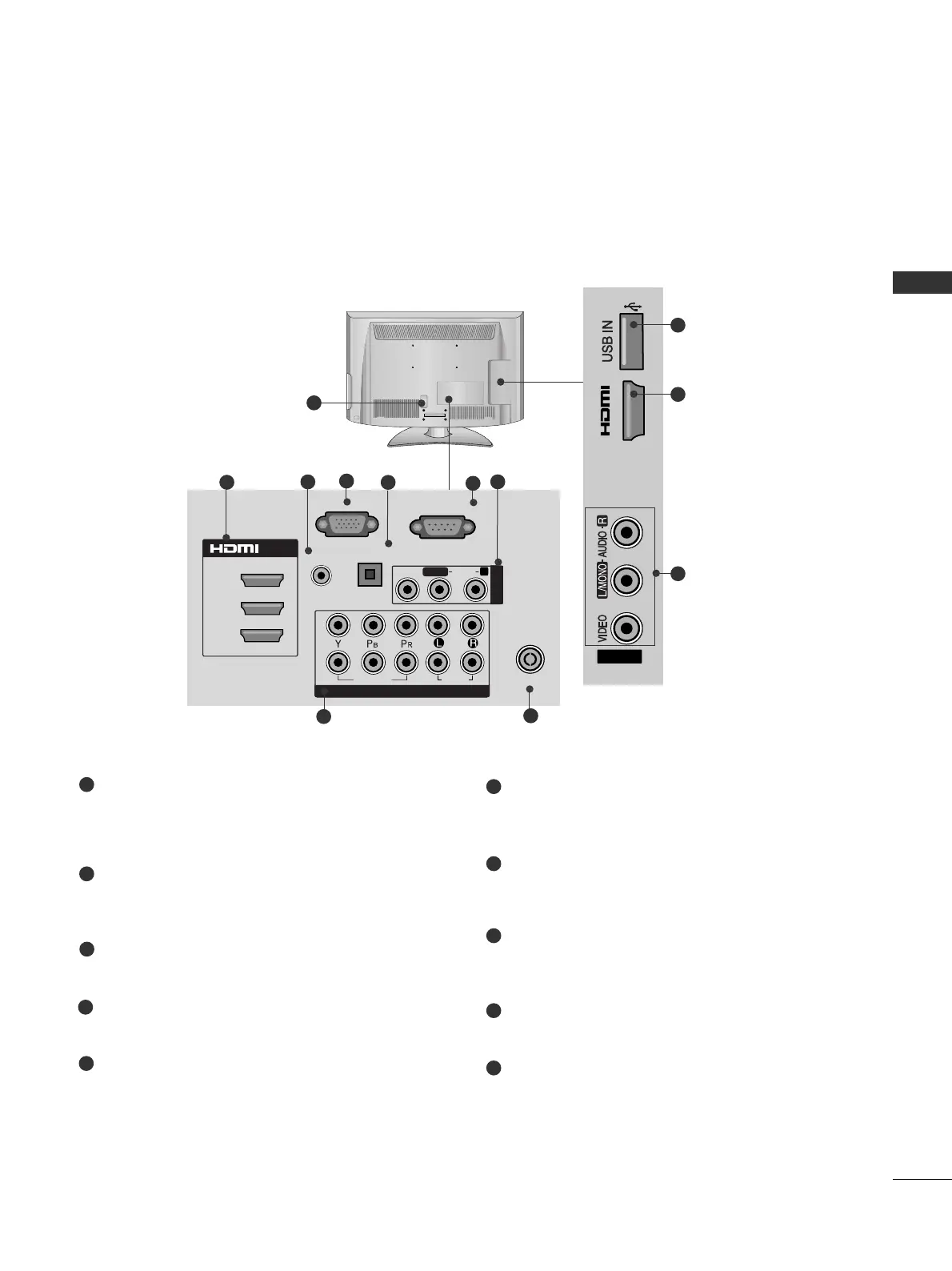

Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
HDMI/DVI IN Input
Connect a HDMI signal to HDMI IN. Or DVI (VIDEO)
signal to HDMI/DVI port with DVI to HDMI cable.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
RGB IN Input
Connect the output from a PC.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
Connect RF antenna to this jack.
USB IN Input
Connect USB storage device to this jack.
1
2
3
4
5
6
7
8
9
10
■
Here shown may be somewhat different from your TV.
