- 23 -
LGE Internal Use Only
Copyright © LG Electronics. Inc. All right reserved.
Only for training and service purposes

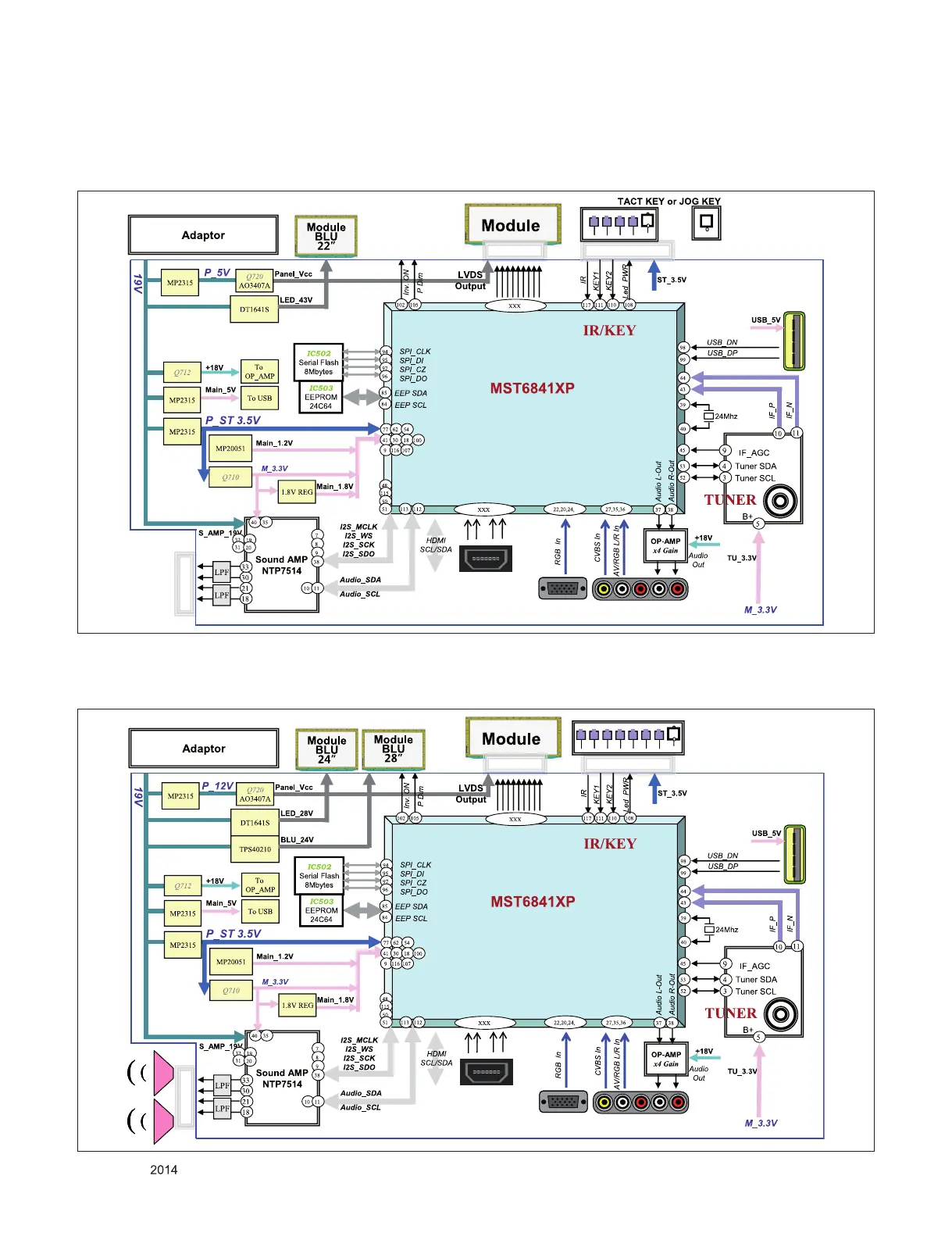

BLOCK DIAGRAM
- 22"
- 24"
