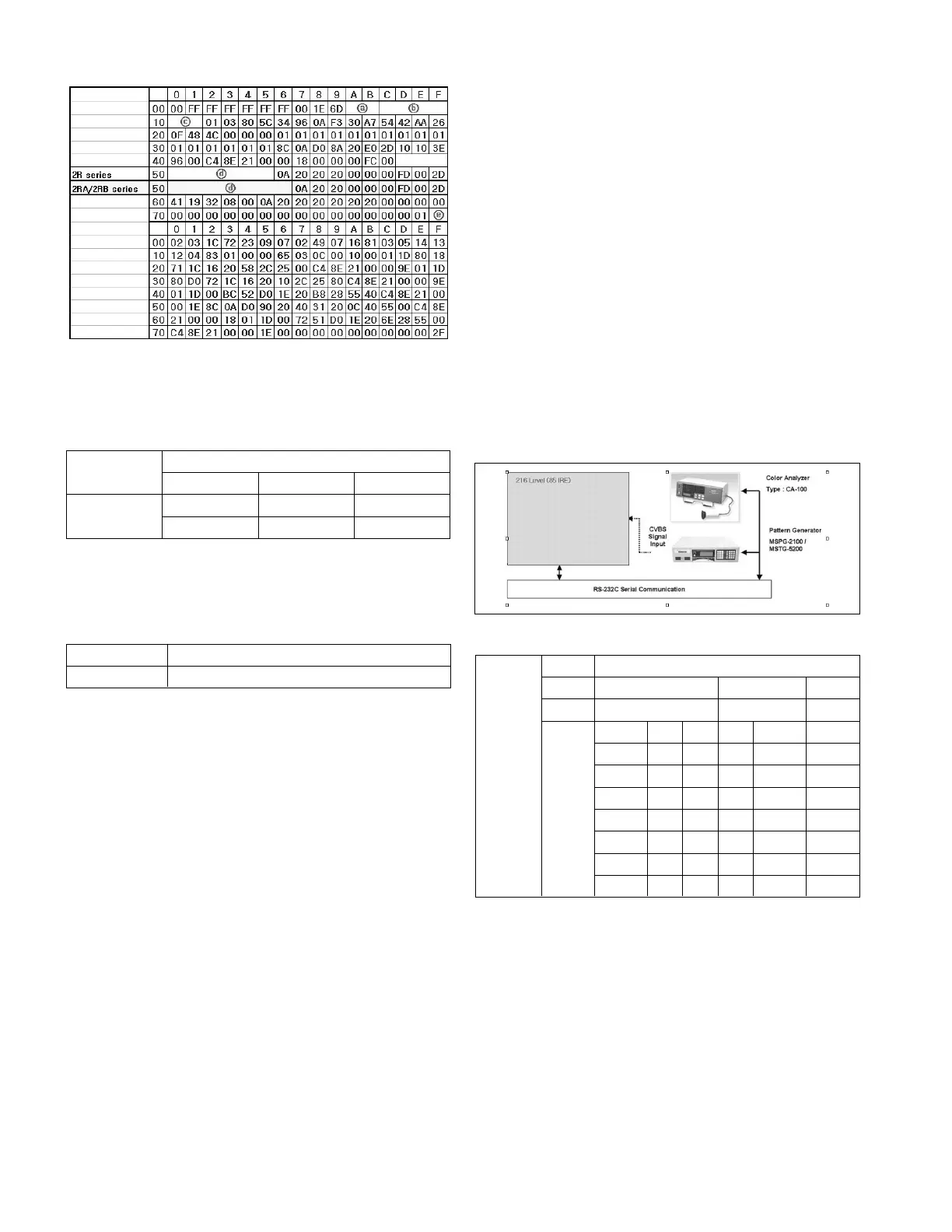

< EDID DATA HDMI Set : 256bytes>
[LC2R SERIES & LC2RA/LC2RB SERIES & LC3R SEIRIES
ONLY different 70 Line because of Model name]
=> Detail EDID Options are below(a, b, c, d, e)
a. Product ID
b. Serial No : Controlled on production line
c. Month, Year : Controlled on production line
ex) Montly: '03' => '03'
Year: '2005' => '0F'
d. Model Name(Hex):
e. Checksum: Changeable by total EDID data
6. Adjustment of White Balance
* In case of White Balance rework, you have to RESET
the previous White Balance data.
(You can do that by pushing the "IN-START" key in
adjust remocon and reset)
6.1 Required Equipment
- Remote controller for adjustment
-
l Color Analyzer (CA-110 or CA-210 or same product; ch : 9)
- Auto W/B adjustment instrument(only for Auto
adjustment)
- AV Pattern Generator
ZJ, TJ, CJ – model : 202(PAL-BDGHI),
pattern:78(216 Gray)
MJ – model : 207 (NTSC-J),
pattern : 78 (216 Gray)
6.2 Connecting diagram of equipment for
measuring (For Automatic Adjustment)
[Push the "POWER ON" key at the Adjust
Remocon before Adjustment of W/B, the Baud
rate & PSM, CSM will change 115200bps,
Standard (MJ: Optimum), Normal]
# Auto adjustment Map(RS-232C)
- 15 -
Model Name Model Name(HEX)
32LC3R-ZJ 33 32 4C 43 35 52 2D 5A 4A
Communication
Type LP61A/C, LN61A
Protocol
Baud Rate
Data bit Stop bit Parity
115200 8 1 None
Protocol Index Cmd 1 Cmd 2 Data
Min Value
Max Value
Setting
Input Select
xb b
R Gain j a 00(00) 255(FF)
G Gain j b 00(00) 255(FF)
B Gain j c 00(00) 255(FF)
R Offset j d 00(00) 255(FF)
G Offset j e 00(00) 255(FF)
B Offset j f 00(00) 255(FF)
Model Name
Product ID
DEC HEX EDID TABLE
32LC3R 30087(A) 7587 8775
30088(D) 7588 8875
