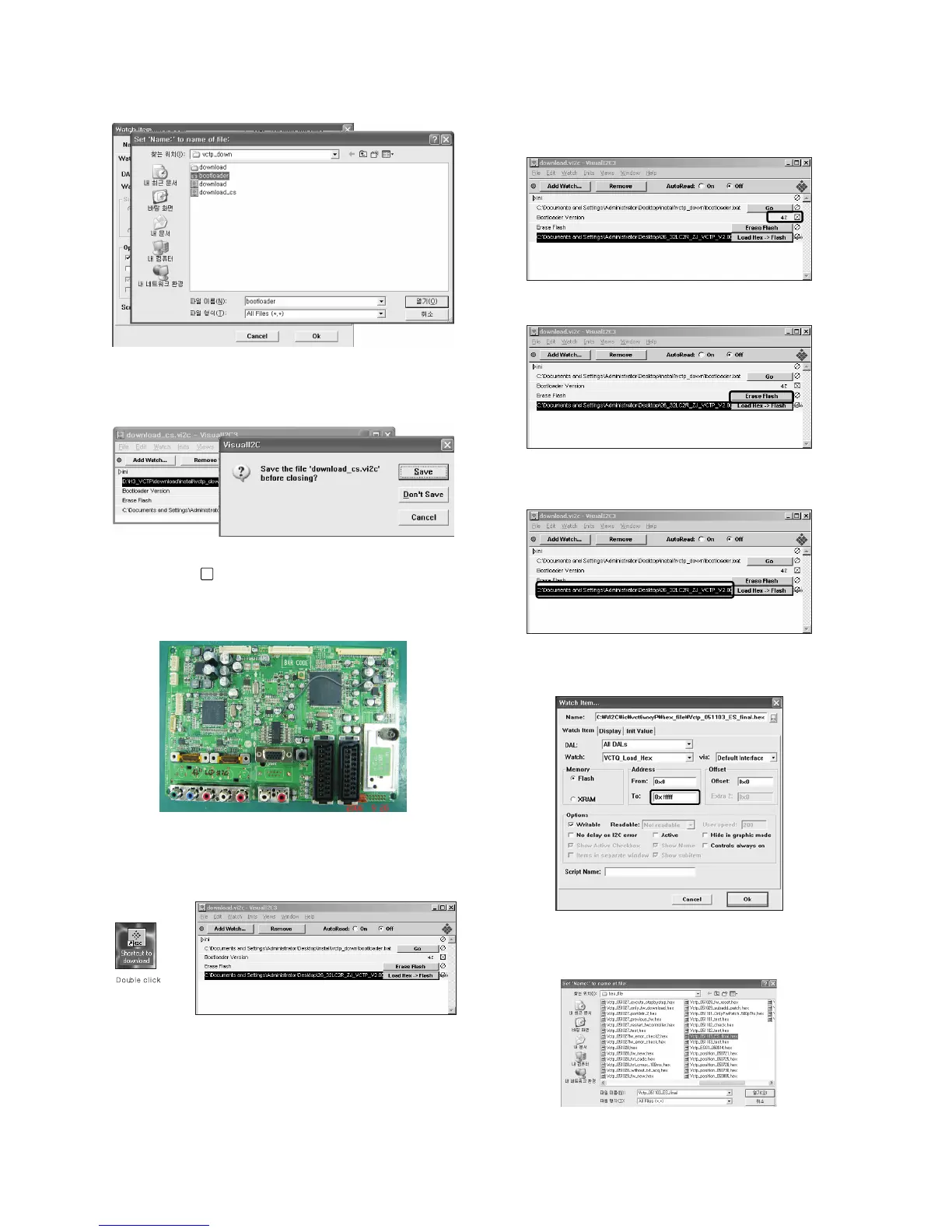

=> Select the "Bootloader.bat" file(install > VCTP_download >
Bootloader)
=> Push "OK"
=> Finish the program, after saving the file "download_cs.vi2c"
(if you click , the massage appears automatically)
4.2. S/W program download
(1) Download method 1 (PCB Ass’y)
1) Connect the download jig to D-sub jack.
2) Execute ‘Download.vi2c’ program in PC, then a main
window will be opened.
3) Double click the blue box and confirm "Bootloader
Version" as 42.
4) Click the "Erase Flash" button.
5) Double click the download file low, then "edit" window
will be opened.
6) Click the choice button in the “edit window”, then “file
choice window” will be opened.
7) Choose the Hex file in folder and execute downloading
with click " open" button.
x
