PREPARATION
27
■
Image shown may differ from your TV.
Fix the 4 screws securely using the holes in the
back of the TV.
4
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
Assemble the parts of the
SSttaanndd BBooddyy
with
the
SSttaanndd BBaassee
of the TV.

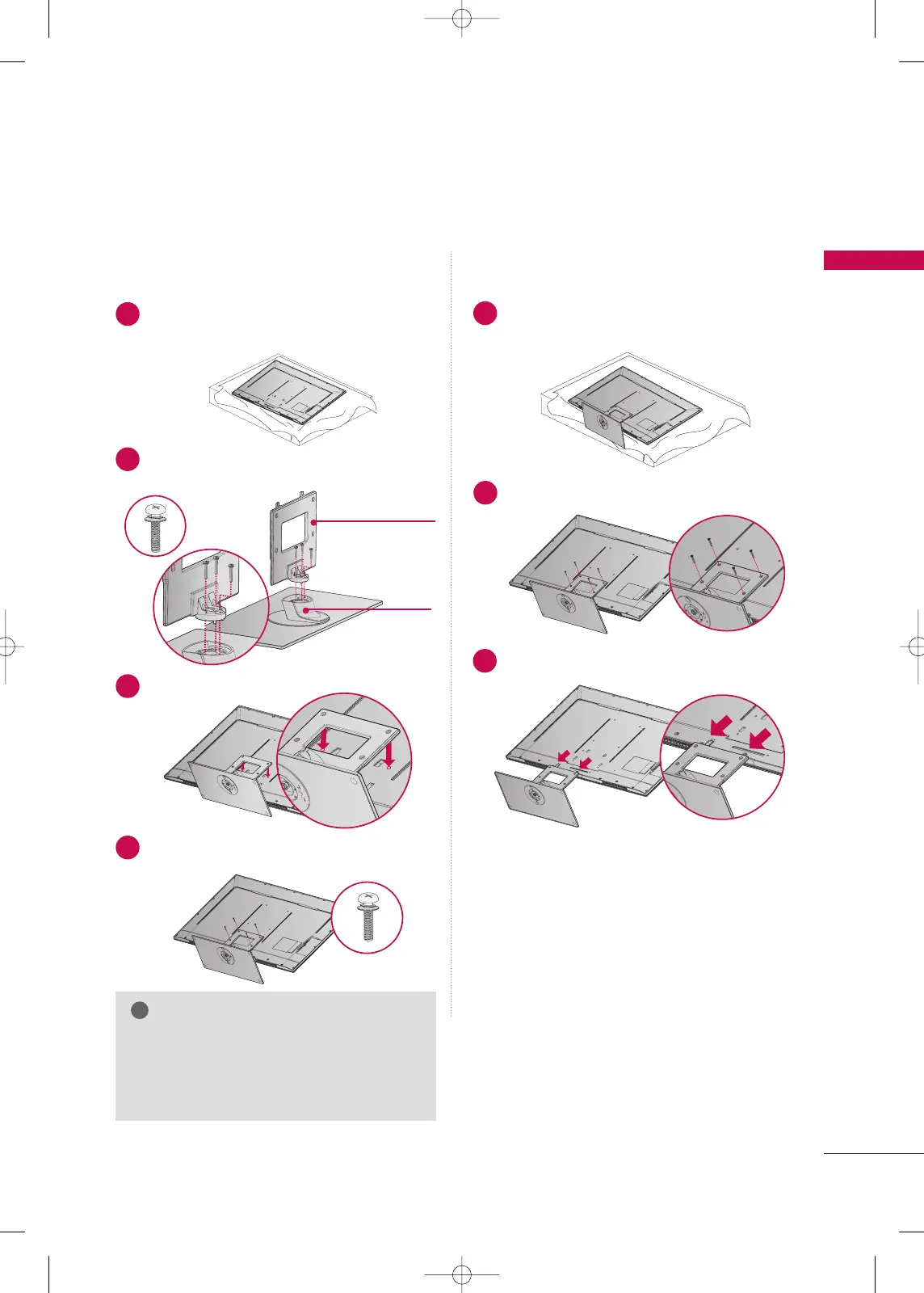

Assemble the TV as shown.
1
2
3
INSTALLATION
GG
When assembling the desk type stand, make sure
the screws are fully tightened (If not tightened
fully, the TV can tilt forward after the product
installation). Do not over tighten.
NOTE
DETACHMENT
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
1
Remove the screws from the TV.
2
Detach the stand from TV.
3
SSTTAANNDD BBOODDYY
SSTTAANNDD BBAASSEE
16 m m
20 mm
For 42/47SL90QR
