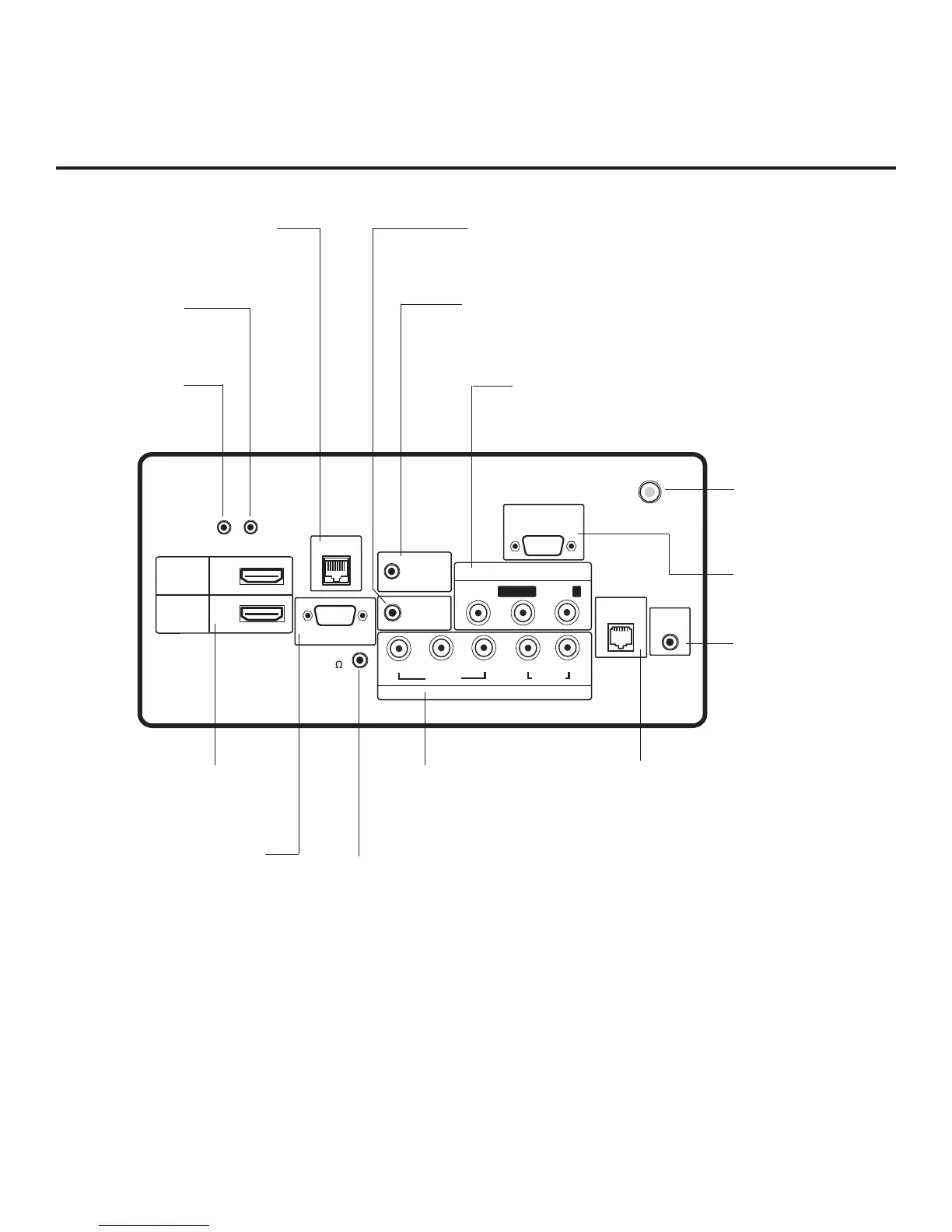

LD320H/LD325H Rear Jack Panel
RGB IN (PC)
Connection for RGB
output from PC.
TV-LINK CFG
Use for local FTG
configuration.
UPDATE
Restricted to
software updates.
RESET
Press RESET to
re-initialize the TV.
GAME CONTROL
*
EBL in LodgeNet PPV Mode only.
AUDIO/VIDEO IN 1
Connection for composite audio/
video output from external device.
SPEAKER OUT (8Ω) **
Connect to 8 ohm self-powered
speaker input. Intended for special
applications, such as a powered bath-
room speaker with volume control.
REMOTE CONTROL OUT
IR output for controlling an
auxiliary device.
RS-232C IN
Use for downloading
software updates, etc.
COMPONENT IN
Connection for component
output from external device.
AUDIO IN (RGB/DVI)
Audio connection for
RGB or DVI device.
RJP
Connection for Remote Jack
Pack (RJP) Control cable.
HDMI/DVI IN
Connection for HDMI/DVI
output from external device.
ANTENNA IN
26LD320H only.
Connect to Antenna/
CATV.
* For 26LD320H TVs, this is a GAME CONTROL/MPI port. GAME CONTROL function as described
above. When the EBL is in Pass-through Mode, the MPI function enables an external MPI control device
(i.e., clone programmer, VOD/PPV STB, etc.) to control the TV.
** This stereo jack provides a mono speaker fixed-level, 1 watt output (audio +, audio -, w/ground shield).
Do NOT plug in a mono connector, as this may damage the TV.
