EXTERNAL EQUIPMENT SETUP
47

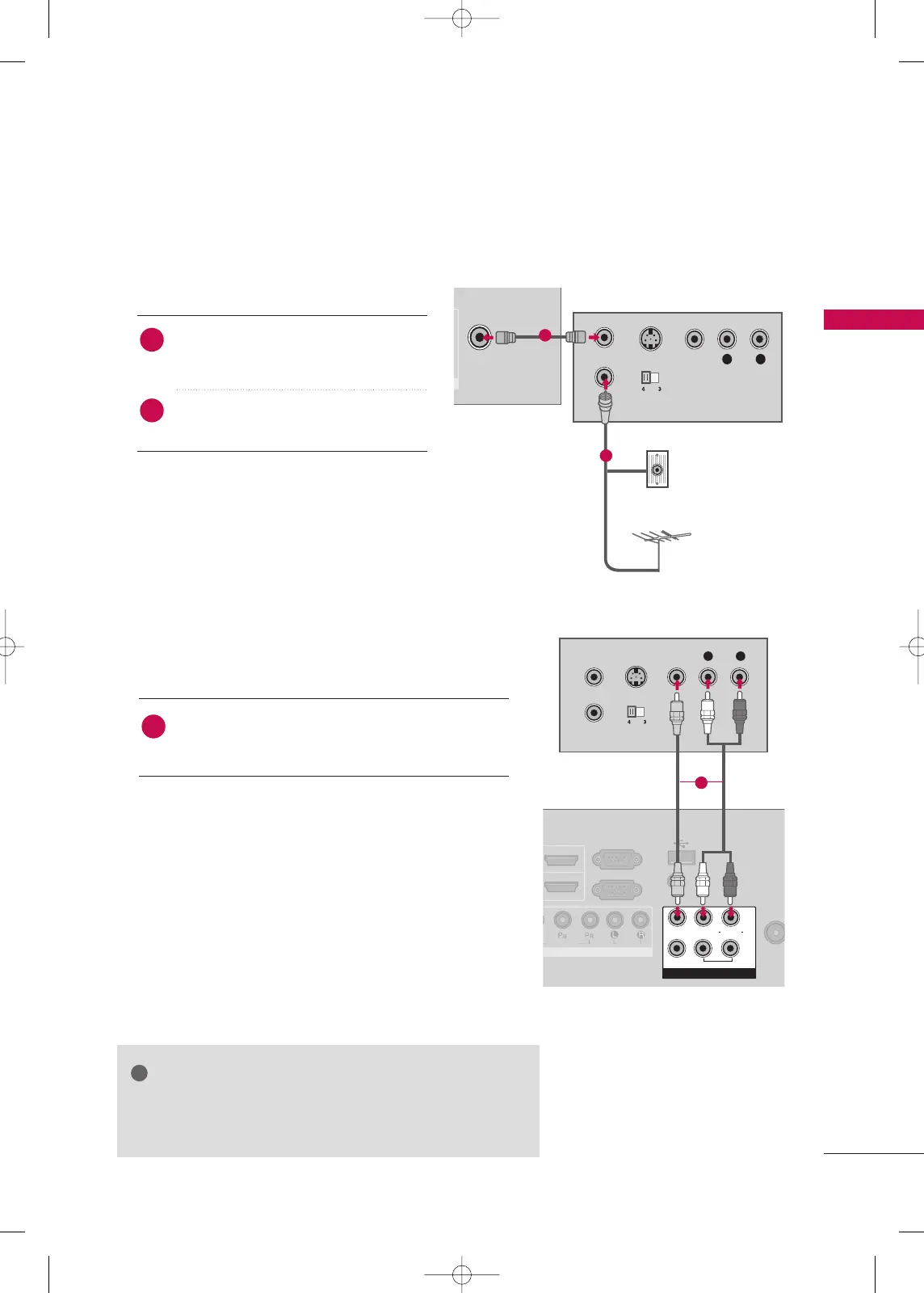

VCR SETUP
Antenna Connection
ANTENNA
IN
ANTENNA
IN
T
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1
2
Connect the RF antenna out socket of the
VCR to the
AANNTTEENNNNAA IINN
socket on the
TV.
Connect the antenna cable to the RF
antenna in socket of the VCR.
1. How to connect
2. How to use
■
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
■
Insert a video tape into the VCR and press
PLAY on the VCR.
(
Refer to the VCR owner’s
manual.
)
2
1
*
AA VV
: For 19/22/26/32/37/42LH20R, 19LU50R, 22LU50FR,
22LU40R, 42/47SL90QR, 22LD330
*
AAVV11
/
22
: For 32/42LF20FR, 32/37/42/47LH30FR,
26LU50FR, 42/47/55LH50YR, 32/42/47LH70YR,
42/47LH90QR, 32/42/47/55SL80YR, 26/32LD330,
32/42LD410, 32/42LD420, 32LD340, 26/32LD331C
Composite (RCA) Connection
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
■
Select the
AA VV
* or
AAVV11
*/
22
* input source on the TV using
the
IINNPPUUTT
button on the remote control.
1
GG
If you have a mono VCR, connect the audio cable from the VCR
to the
AAUUDDIIOO LL//((MMOONNOO))
*or
AAUUDDIIOO LL//MMOONNOO
* jack of
the TV.
NOTE
!
RS-232C IN
(CONTROL)
RGB IN (PC)
USB IN
SERVICE ONLY
AUDIO IN
(RGB/DVI)
ANTENN
IN
AVAV
COMPONENT IN
AUDIOAUDIO
VIDEOVIDEO
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L(MONO)L(MONO)
VIDEOVIDEO
ININ
RR
AUDIOAUDIO
VARIABLE AUDIO OUTVARIABLE AUDIO OUT
OUT
1
MFL58486305-Edit1-en- 5/28/10 2:32 PM Page 47
