- 7 -
4. Chroma& Brightness
4.1. Module optical specification

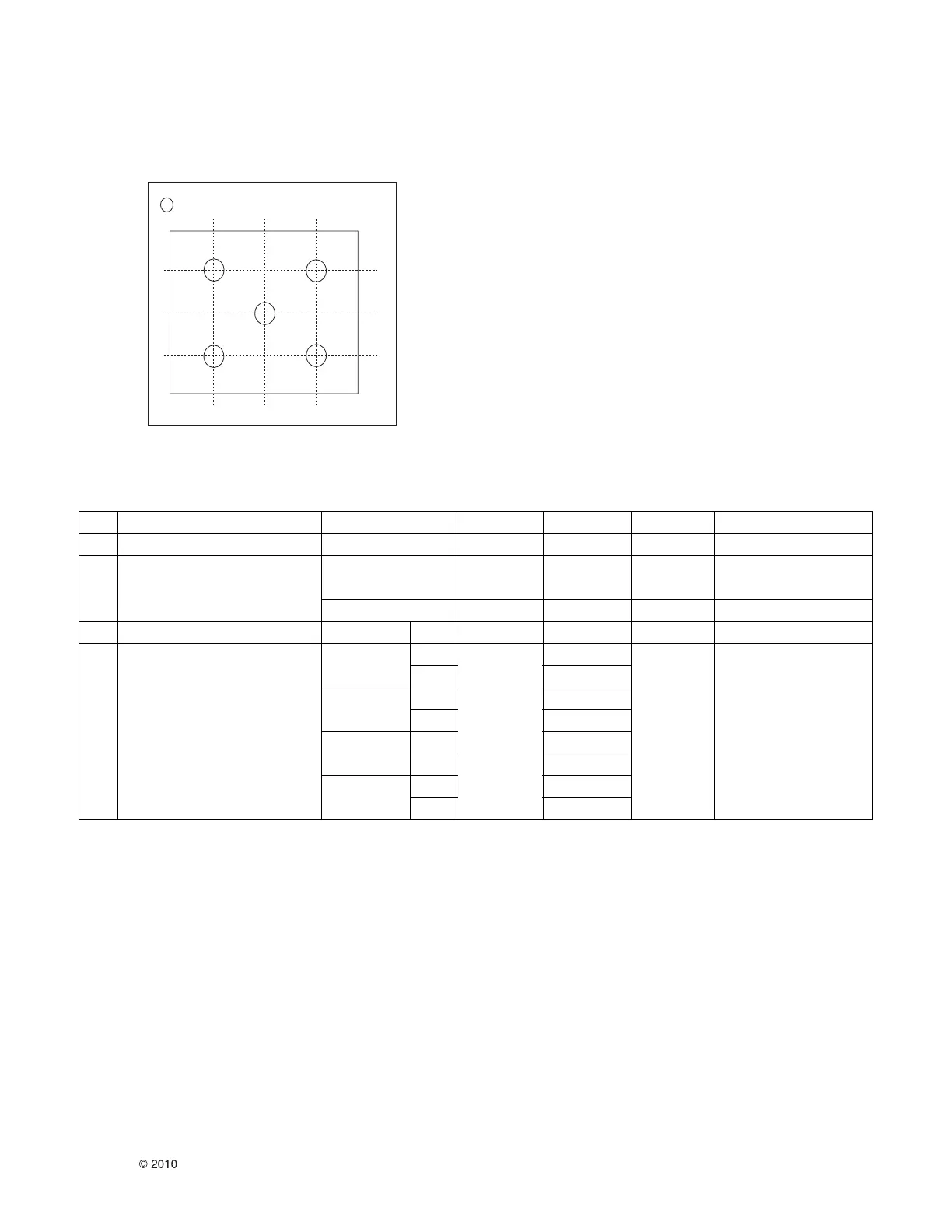

*** LGD module Uniformity Measurement Position***
P1
P2
P3
P4
P5
1W/4
2W/4
3W/4
1H/4
2H/4
3H/4
: Measurement position (5 point)
1) Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25 °C ± 2 °C
2) Surface luminance is the luminance value at center 1-point across the LCD surface 50cm from the surface with all pixels
displaying white.
No. Item Specification Min. Typ. Max. Remark
1. Viewing Angle<CR>10> Right/Left/Up/Down 70 88 CR > 10
Luminance (cd/m
2
) 360 450
2. Luminance
Variation - 1.25
3. Contrast Ratio CR 4000 5000 All white/ All black
White WX 0.278
WY Typ 0.285 Typ
RED Xr - 0.03 0.641 +0.03
4. CIE Color Coordinates Yr 0.344
Green Xg 0.280
Yg 0.607
Blue Xb 0.144
Yb 0.072
4.1.1. 32” LCD Module (SHARP) LK315D3LA57
