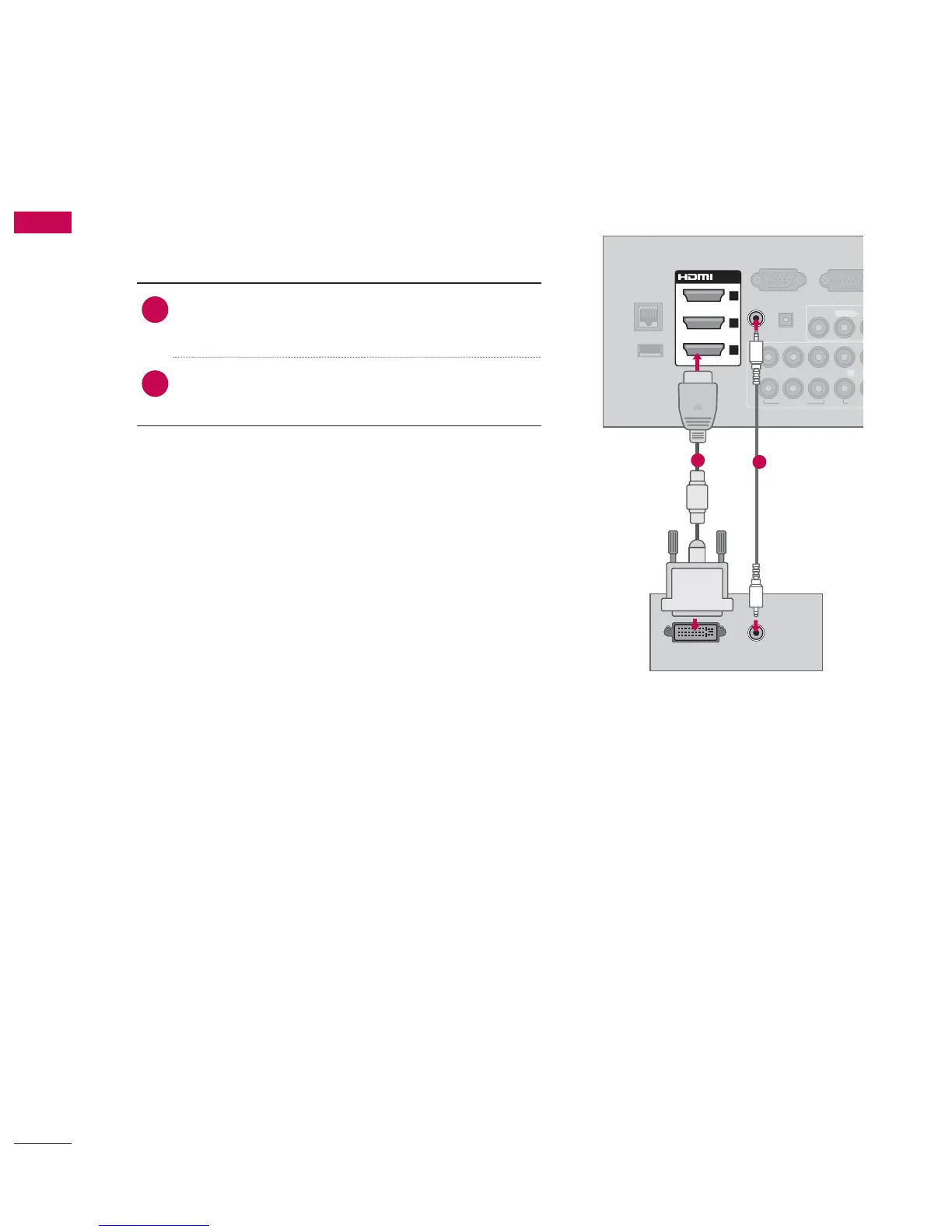

DVI to HDMI Connection
1. How to connect
1
Connect the DVI output of the PC to the HDMI/
DVI IN 1, 2, 3, or 4* jack on the TV.
2
Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
ᯫ
Turn on the PC and the TV.
ᯫ
Select the HDMI1, HDMI2, HDMI3, or HDMI4* input
source on the TV using the
INPUT button on the
remote control.
