- 17 -

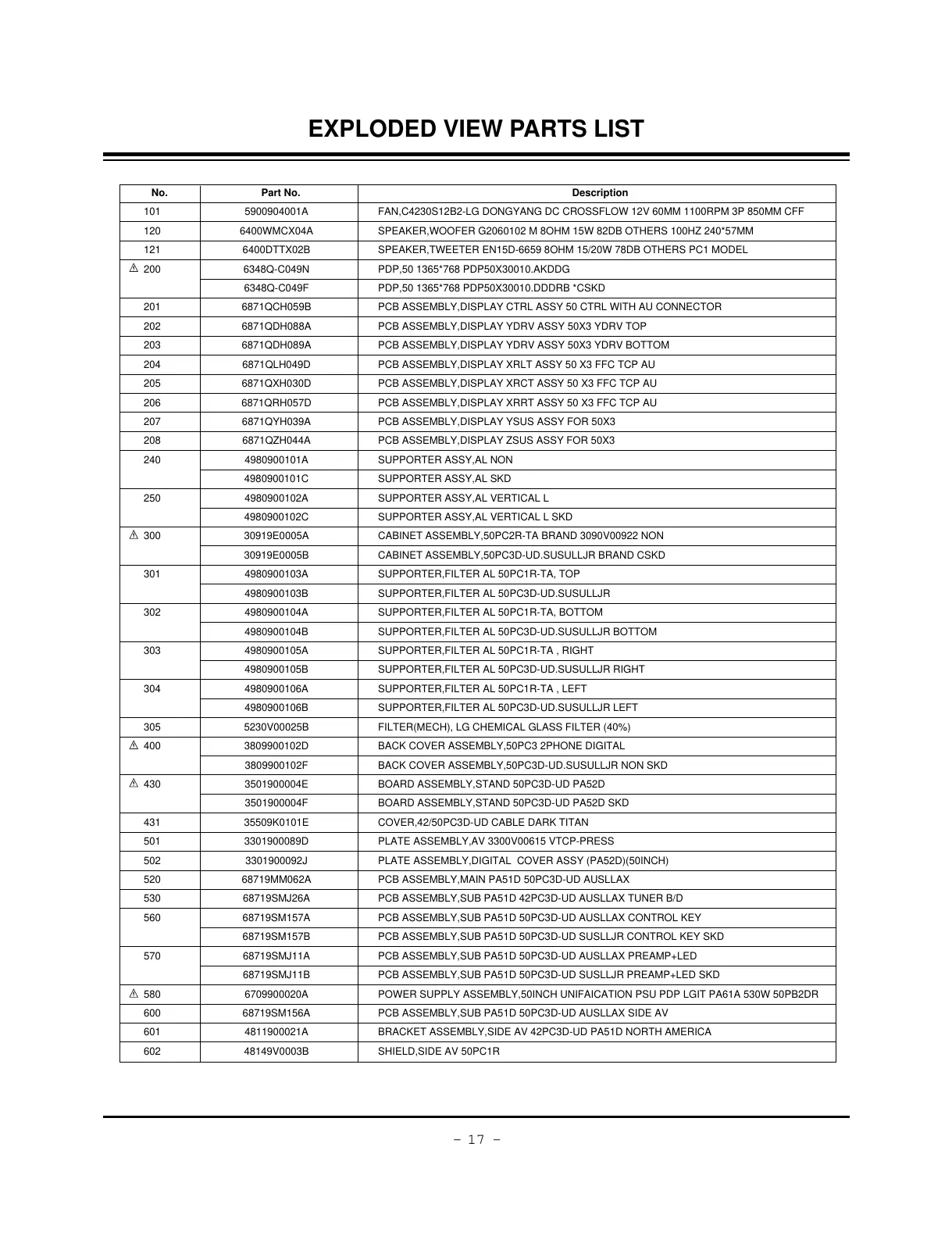

EXPLODED VIEW PARTS LIST
101 5900904001A FAN,C4230S12B2-LG DONGYANG DC CROSSFLOW 12V 60MM 1100RPM 3P 850MM CFF
120 6400WMCX04A SPEAKER,WOOFER G2060102 M 8OHM 15W 82DB OTHERS 100HZ 240*57MM
121 6400DTTX02B SPEAKER,TWEETER EN15D-6659 8OHM 15/20W 78DB OTHERS PC1 MODEL
200 6348Q-C049N PDP,50 1365*768 PDP50X30010.AKDDG
6348Q-C049F PDP,50 1365*768 PDP50X30010.DDDRB *CSKD
201 6871QCH059B PCB ASSEMBLY,DISPLAY CTRL ASSY 50 CTRL WITH AU CONNECTOR
202 6871QDH088A PCB ASSEMBLY,DISPLAY YDRV ASSY 50X3 YDRV TOP
203 6871QDH089A PCB ASSEMBLY,DISPLAY YDRV ASSY 50X3 YDRV BOTTOM
204 6871QLH049D PCB ASSEMBLY,DISPLAY XRLT ASSY 50 X3 FFC TCP AU
205 6871QXH030D PCB ASSEMBLY,DISPLAY XRCT ASSY 50 X3 FFC TCP AU
206 6871QRH057D PCB ASSEMBLY,DISPLAY XRRT ASSY 50 X3 FFC TCP AU
207 6871QYH039A PCB ASSEMBLY,DISPLAY YSUS ASSY FOR 50X3
208 6871QZH044A PCB ASSEMBLY,DISPLAY ZSUS ASSY FOR 50X3
240 4980900101A SUPPORTER ASSY,AL NON
4980900101C SUPPORTER ASSY,AL SKD
250 4980900102A SUPPORTER ASSY,AL VERTICAL L
4980900102C SUPPORTER ASSY,AL VERTICAL L SKD
300 30919E0005A CABINET ASSEMBLY,50PC2R-TA BRAND 3090V00922 NON
30919E0005B CABINET ASSEMBLY,50PC3D-UD.SUSULLJR BRAND CSKD
301 4980900103A SUPPORTER,FILTER AL 50PC1R-TA, TOP
4980900103B SUPPORTER,FILTER AL 50PC3D-UD.SUSULLJR
302 4980900104A SUPPORTER,FILTER AL 50PC1R-TA, BOTTOM
4980900104B SUPPORTER,FILTER AL 50PC3D-UD.SUSULLJR BOTTOM
303 4980900105A SUPPORTER,FILTER AL 50PC1R-TA , RIGHT
4980900105B SUPPORTER,FILTER AL 50PC3D-UD.SUSULLJR RIGHT
304 4980900106A SUPPORTER,FILTER AL 50PC1R-TA , LEFT
4980900106B SUPPORTER,FILTER AL 50PC3D-UD.SUSULLJR LEFT
305 5230V00025B FILTER(MECH), LG CHEMICAL GLASS FILTER (40%)
400 3809900102D BACK COVER ASSEMBLY,50PC3 2PHONE DIGITAL
3809900102F BACK COVER ASSEMBLY,50PC3D-UD.SUSULLJR NON SKD
430 3501900004E BOARD ASSEMBLY,STAND 50PC3D-UD PA52D
3501900004F BOARD ASSEMBLY,STAND 50PC3D-UD PA52D SKD
431 35509K0101E COVER,42/50PC3D-UD CABLE DARK TITAN
501 3301900089D PLATE ASSEMBLY,AV 3300V00615 VTCP-PRESS
502 3301900092J PLATE ASSEMBLY,DIGITAL COVER ASSY (PA52D)(50INCH)
520 68719MM062A PCB ASSEMBLY,MAIN PA51D 50PC3D-UD AUSLLAX
530 68719SMJ26A PCB ASSEMBLY,SUB PA51D 42PC3D-UD AUSLLAX TUNER B/D
560 68719SM157A PCB ASSEMBLY,SUB PA51D 50PC3D-UD AUSLLAX CONTROL KEY
68719SM157B PCB ASSEMBLY,SUB PA51D 50PC3D-UD SUSLLJR CONTROL KEY SKD
570 68719SMJ11A PCB ASSEMBLY,SUB PA51D 50PC3D-UD AUSLLAX PREAMP+LED
68719SMJ11B PCB ASSEMBLY,SUB PA51D 50PC3D-UD SUSLLJR PREAMP+LED SKD
580 6709900020A POWER SUPPLY ASSEMBLY,50INCH UNIFAICATION PSU PDP LGIT PA61A 530W 50PB2DR
600 68719SM156A PCB ASSEMBLY,SUB PA51D 50PC3D-UD AUSLLAX SIDE AV
601 4811900021A BRACKET ASSEMBLY,SIDE AV 42PC3D-UD PA51D NORTH AMERICA
602 48149V0003B SHIELD,SIDE AV 50PC1R
No.
Part No.
Description
