PREPARATION
15
1
2
3
32/37/42LG500H
After removing the stand, install the included
pprrootteeccttiioonn
ccoovveerr
over the hole for the stand.
Press the
PPRROOTTEECCTTIIOONN CCOOVVEERR
into the TV until you
hear it click.
PROTECTION COVER
STAND INSTALLATION
BACK COVER FOR WIRE
ARRANGEMENT

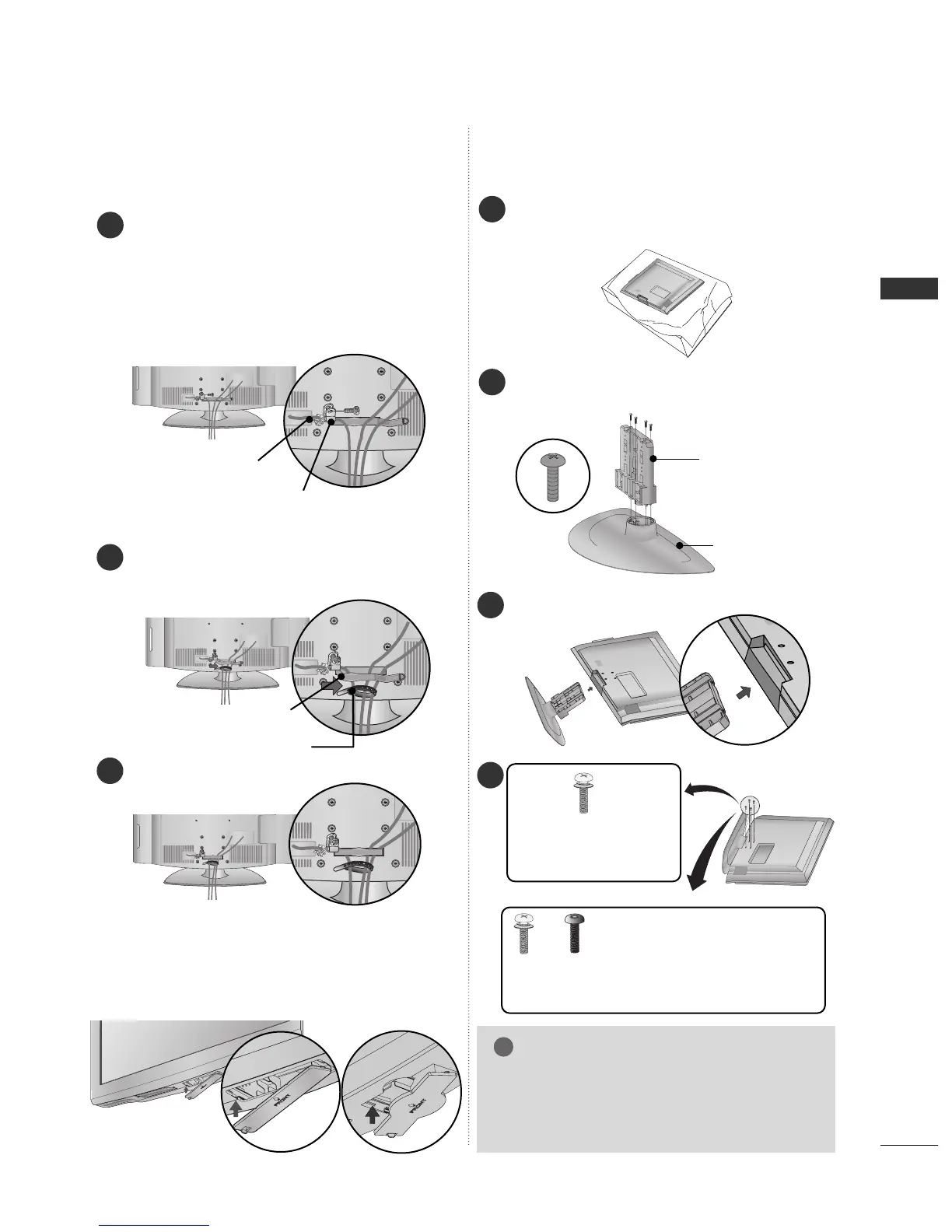

Assemble the parts of the
SSTTAANNDD BBOODDYY
with
CCOOVVEERR BBAASSEE
of the TV.
2
Assemble the TV as shown.
3
4
SSTTAANNDD BBOODDYY
CCOOVVEERR BBAASSEE
Carefully place the TV screen side down on a cush-
ioned surface to protect the screen from damage.
1
GG
When assembling the desk type stand, make sure
the bolt is fully tightened (If not tightened fully,
the TV can tilt forward after the product installa-
tion). Do not over tighten.
NOTE
!
or
x 4
Tighten the stand with the
four screws (provided as
parts of the TV).
Tighten the two of these four screws
and the two Torx plus star head screws
(provided as parts of the TV) to secure the TV. Tighten
the two Torx plus star head screws with a star head dri-
ver bit (not provided as parts of the TV).
x 2
x 2
Connect the cables as necessary.
To connect additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
Secure the power cable with the PLUG IN TYPE
HOLDER for power code and PROTECTIVE
BRACKET/Screw. It will help prevent the power
cable from being removed by accident.
PROTECTIVE BRACKET
(This feature is not available for all models.)
PLUG IN TYPE HOLDER
Install the CABLE MANAGEMENT CLIP as shown.
If your TV has the CABLE HOLDER, install it as
shown and bundle the cables.
CABLE MANAGEMENT CLIP
CABLE HOLDER
Put the cables inside the CABLE MANAGEMENT
CLIP and snap it closed.
