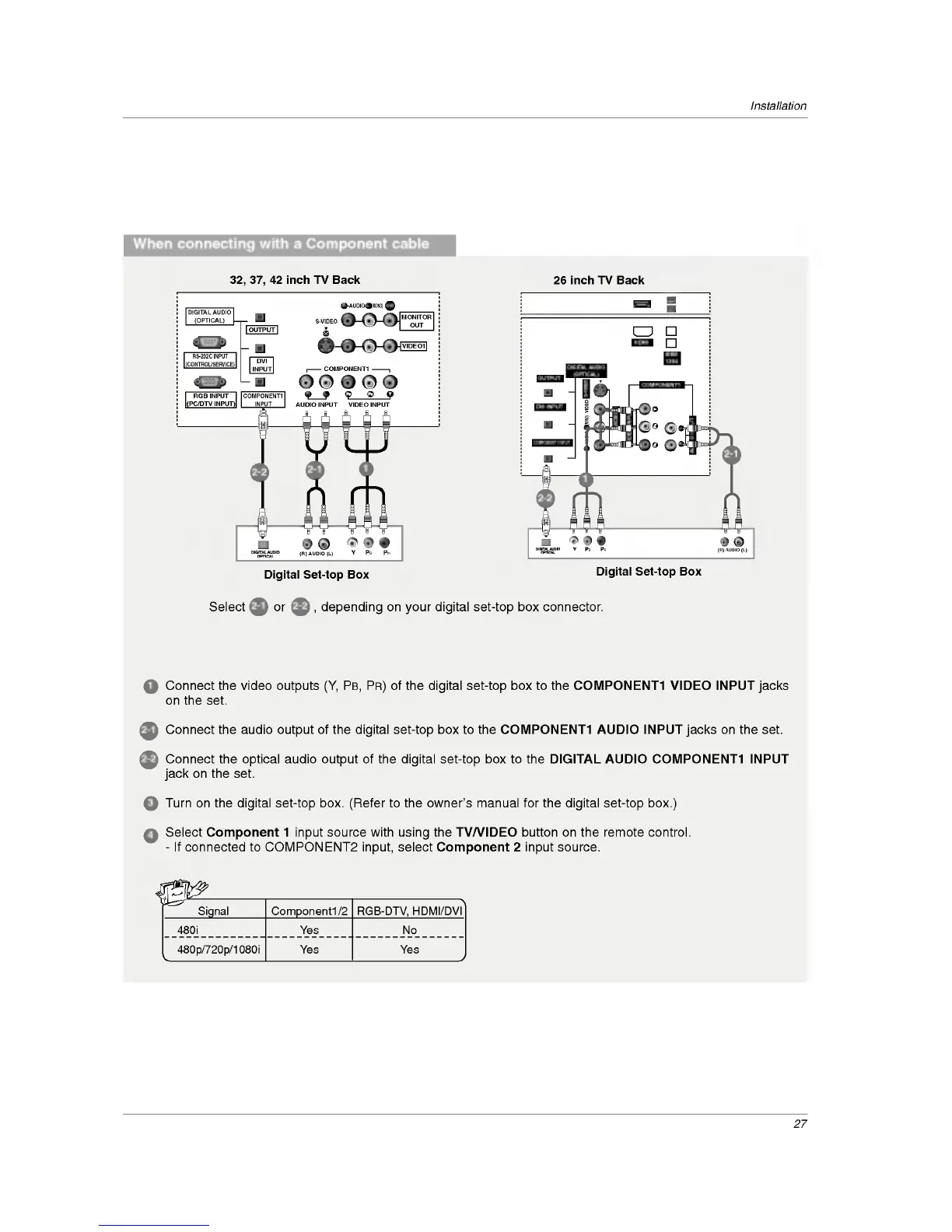

Installation
When
connecting
with a
Component
cable
1
3
4
Connect the video
outputs (Y,
PB,
PR)
of the
digital set-top
box to the COMPONENT1 VIDEO INPUT
jacks
on the set.
Connect the audio
output
of the
digital set-top
box to the COMPONENT1 AUDIO INPUT
jacks
on the set.
Connect the
optical
audio
output
of the
digital set-top
box to the DIGITAL AUDIO COMPONENT1 INPUT
jack
on the set.
Turn on the
digital set-top
box.
(Refer
to the owner's manual for the
digital set-top box.)
Select
Component
1
input
source with
using
the TV/VIDEO button on the remote control.
-
If connected to COMPONENT2
input,
select
Component
2
input
source.
B
R
(R)
AUDIO
(L)
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
VIDEO1
RGB INPUT
(PC/DTV INPUT)
RS-232C INPUT
(CONTROL/SERVICE)
AUDIO INPUT
AUDIO
(MONO)
VIDEO INPUT
COMPONENT1
RL
RL
S-VIDEO
MONITOR
OUT
VIDEO
DIGITAL AUDIO
(OPTICAL)
OUTPUT
VIDEO1
AU OIN UT
VIDEO INPUT
RL
S-VIDEO
IEEE
1394
AUDIO
VIDEO
(MONO)
RL
HDMI
DVI INPUT
COMPONENT1 INPUT
COMPONENT1
B R
(R)
AUDIO
(L)
Signal
480i
480p/720p/1080i
Component1/2
Yes
Yes
RGB-DTV,
HDMI/DVI
No
Yes
1
Digital Set-top
Box
Digital Set-top
Box
2-1
2-1
2-2
2-2
1
2-1
2-2
Select or
,
depending
on
your digital set-top
box connector.
2-2 2-1
