8.4.3. External Clock
< Equipment & Condition >
▪ Simple Jig (External Clock Assy)
▪ Power only mode

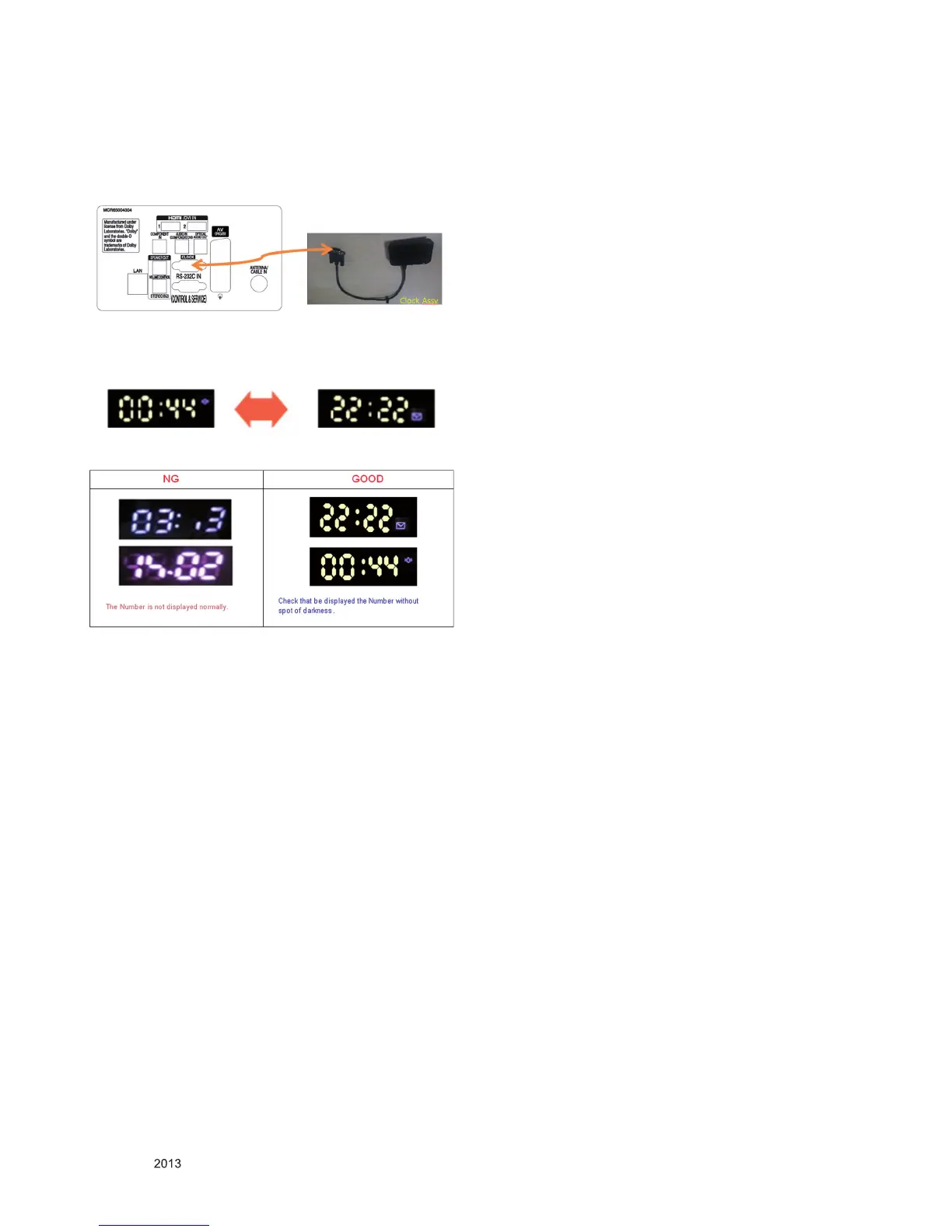

(1) Connect external Clock Assy to CLOCK INTERFACE.
(2) Check the LED CLOCK.
Check LED Clock in Power on mode.
* After nishing 8.1 ~ 8.4 inspections,
press “IN STOP” key.
