LG 40LX570H

64
206-4278
ANTENNA/
CABLE IN
RGB IN (PC)
TV-LINK CFG
SPEAKER OUT
LINE OUT
SERVICE ONLY
RJP
..........
VIDEO
L/MONO-AUDIO-R
AV IN / AUDIO IN (RGB DVI)
L R
OPTICAL
AUDIO OUT
LAN
GAME CONTROL
/ MPI
1
IN
RESET
RESET
UPDATE
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and
turns the TV OFF.
GAME CONTROL/MPI
When the TV/EBL is in Pass-through Mode, the
MPI function enables an external MPI control
device (i.e., VOD/PPV STB, etc.) to control the TV.
Game Control—EBL in SONIFI PPV Mode only.
AV IN/AUDIO IN (RGB DVI)
Connect to composite audio/
video output from external device, or
connect audio for RGB or DVI device.
SPEAKER OUT / LINE OUT
( 3.5 mm jack) Connect external audio (xed
speaker, variable speaker, or xed line level
[amplier]) equipment. See Reference
section, “External Stereo Speaker
Specifications,” for further information.
RJP
Connection for Remote Jack Pack (RJP)
Control cable.
HDMI IN 1
Connection for HDMI output
from external device.
ANTENNA/CABLE IN
Connect to Antenna/
CATV.
SERVICE ONLY
Restricted to service updates.
TV-LINK CFG
( 3.5 mm jack) Use to connect PC to TV (EBL)
for local FTG Mode via EBL configuration.

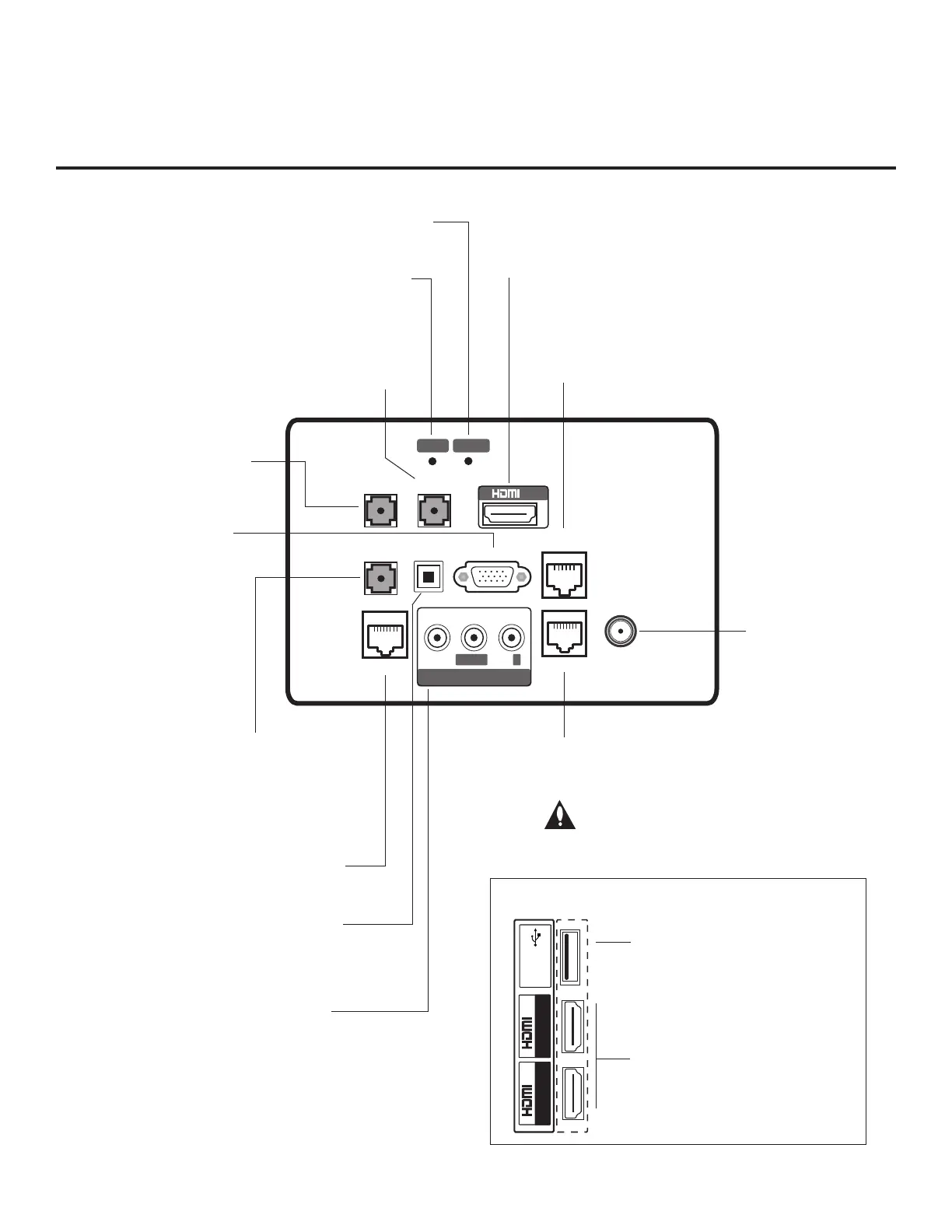

Reference: LX570H Rear and Side Jack Panels
OPTICAL AUDIO OUT
Use for amps and home theater systems.
Note: When the TV is OFF, this port is not
enabled.
Side Jack Panel
HDMI IN 2 & 3
Connection for HDMI output
from external device.
USB IN
Insert USB memory device
for software updates, cloning
purposes, FTG Mode via CPU
configuration, picture/music
entertainment, etc., as applicable.
RGB IN (PC)
Connection for RGB output
from PC.
LAN
Use for video IP and/or network connections.
..........
USB IN
..........
IN
3
IN
2
..........
USB IN
..........
IN 3
IN 2
Caution: Do NOT connect a standard
Ethernet cable to the RJP port, as this may
damage the TV and network equipment.
