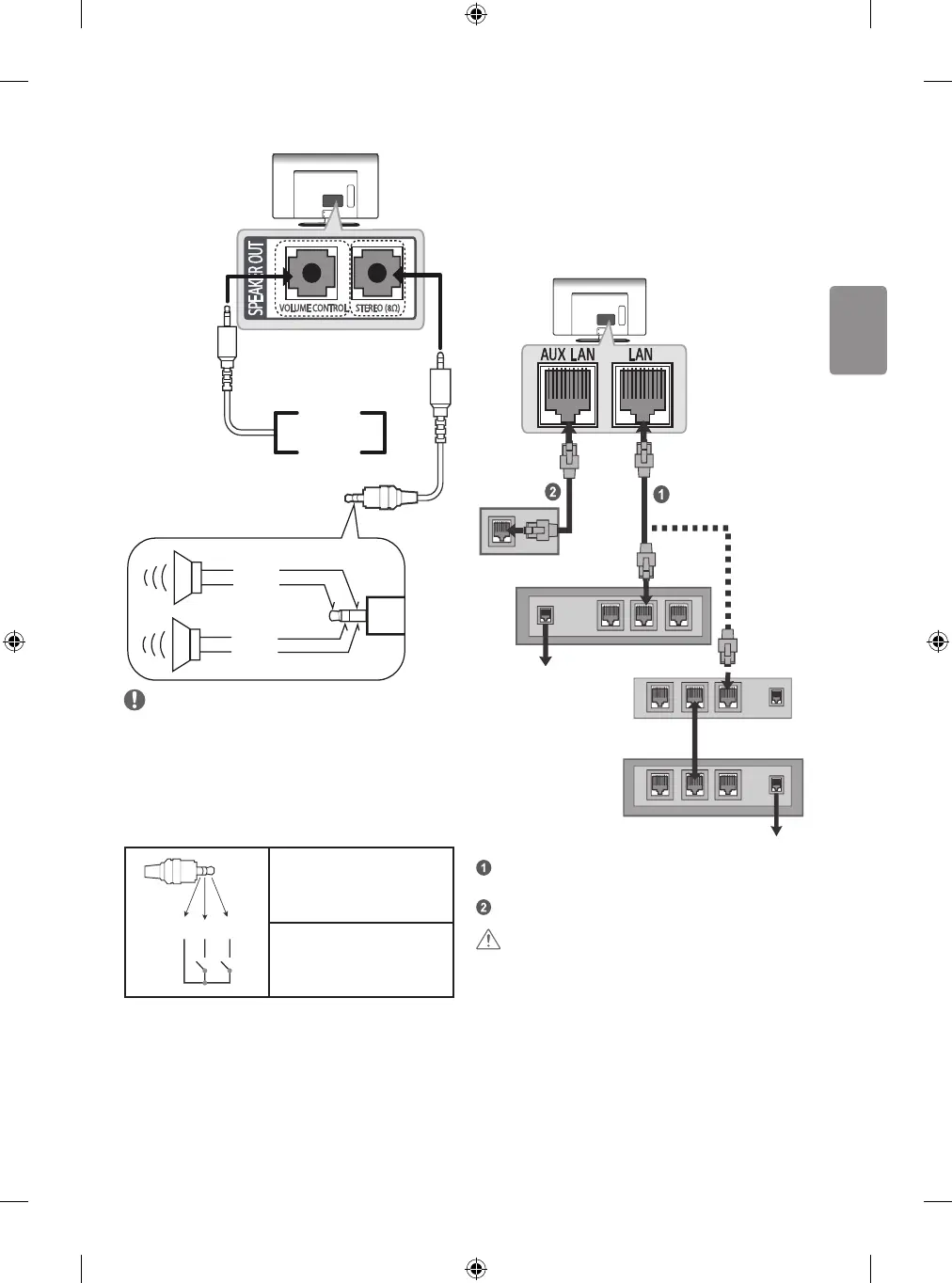

Speaker Output Setup
+ UP
- DOWN
LEFT
GND
GND
RIGHT
Control port for Speaker out
NOTE
• Use only with the 3 pole 3.5mm Stereo Jack.
• Do not connect your headphones or earphones to the port for
connecting an external speaker.
Method of Volume control port
• Cable Spec.
+ UP
- DOWN
LEFT
GND
GND
RIGHT
GND / UP / DOWN
Each Up / Down pin is pulled to 3.3V
with CPU GPIO.
CPU detects transition from 3.3V to
GND level for volume control.
Wired network connection
(Depending on model)
This TV can be connected to a Pro:Centric server via the LAN port. After
making the physical connection, the TV needs to be set up for network
communication.
Connect the LAN port of the Modem or Router from Pro:Centric server
to the LAN port on the TV.
Broadband Modem
Router
Broadband Modem
Broadband Modem
Pro:Centric Sever
Pro:Centric Sever
Connect the LAN port of the Modem or Router to the LAN port on
the TV.
Connect the LAN port of the PC to the AUX LAN port on the TV.
CAUTION
• Do not connect a modular phone cable to the LAN port
• Since there various connection methods, please follow the
sepecications of your telecommunication carrier or internet servie
provider.
