DDiiggiittaall SSeett--ttoopp BBooxx
When connecting with a HDMI to DVI cable
GG
If the digital set-top box has a DVI output and no HDMI output, a separated audio connec-
tion is necessary.
GG
If the digital set-top box supports Auto DVI function, the output resolution of the digital
set-top box will be automatically set to 1280x720p.
GG
If the digital set-top box does not support Auto DVI, you need to set the output resolution
appropriately. To get the best picture quality, adjust the output resolution of the digital set-
top box to 1280x720p.
1
1
2
2
Signal
480i/576i
480p/576p/720p/1080i
Component
Yes
Yes
RGB-DTV
No
Yes
HDMI/DVI (DTV)
No
Yes
CONNECTIONS & SETUP
■
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

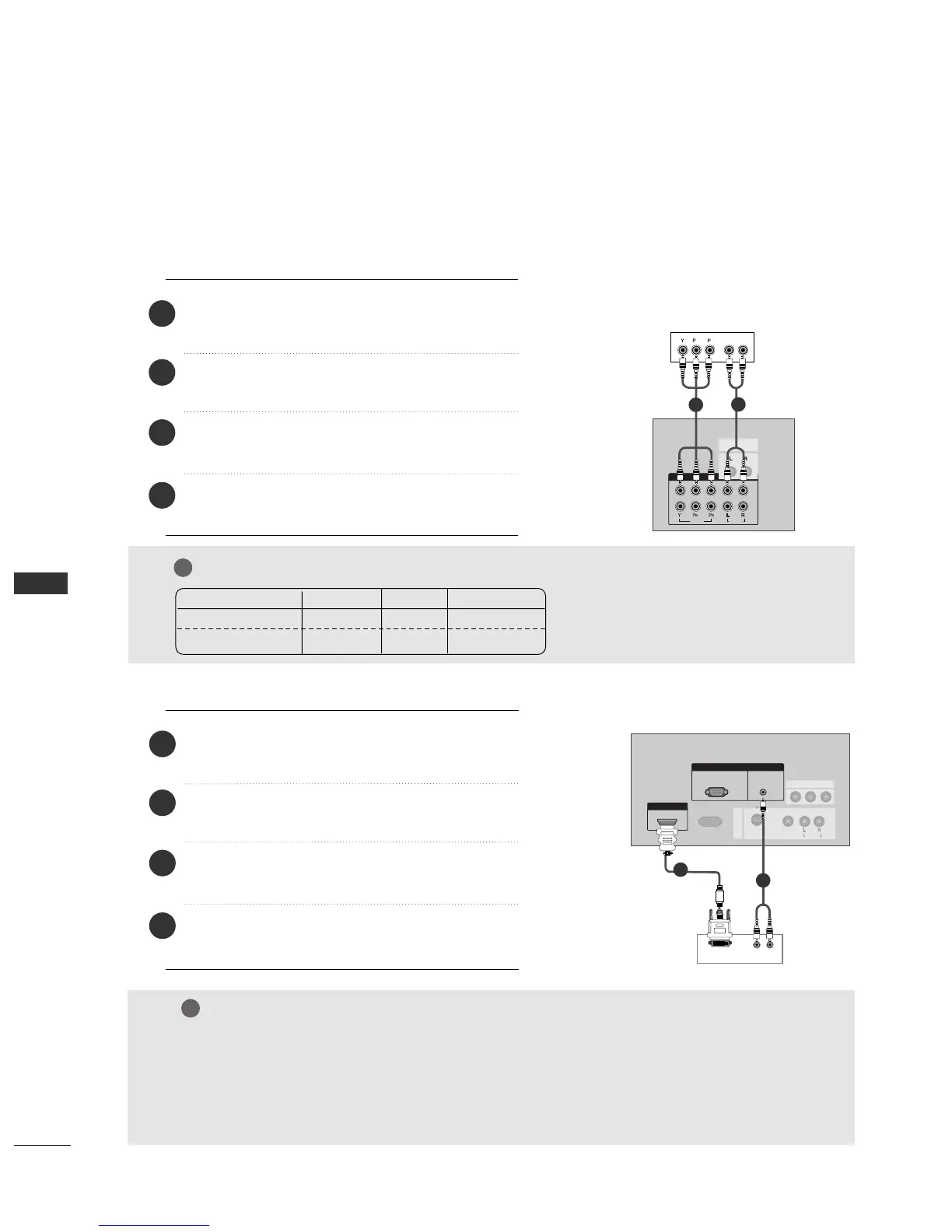

STB(SET-TOP BOX) SETUP
Connect the video outputs (Y, PB, PR) of the digital
set-top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the set.
Connect the audio output of the digital set-top box
to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select
CCoommppoonneenntt11
or
CCoommppoonneenntt22
input
source with using the
IINNPPUUTT
button on the remote control.
1
2
3
4
Connect the DVI output of the digital set-top box
to the
HHDDMMII
/
DDVVII IINN
jack on the set.
Connect the audio outputs of the set-top box to
the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select
HHDDMMII
/
DDVVII
input source with using the
IINNPPUUTT
button on the remote control.
1
2
3
4
