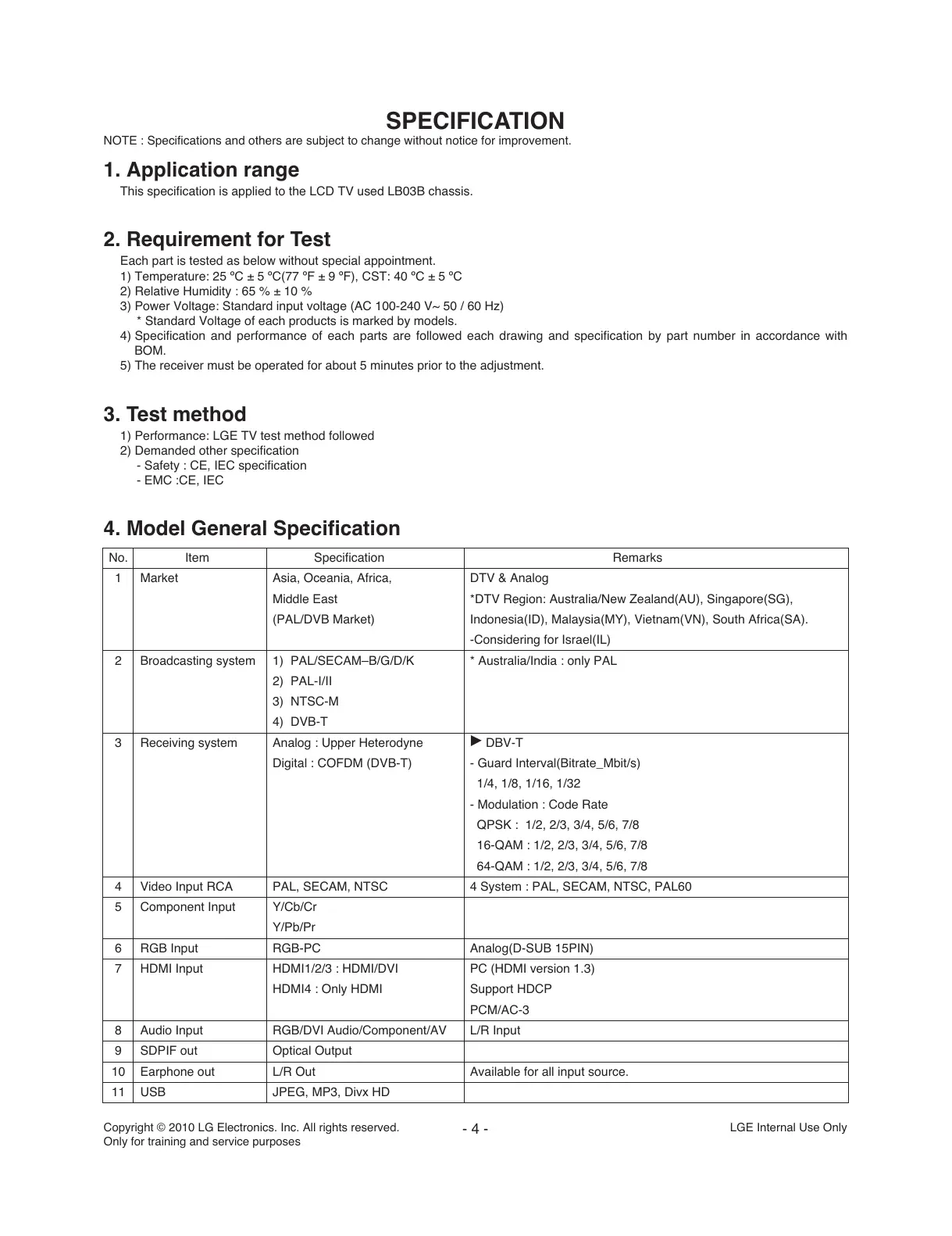

1. Application range
This specification is applied to the LCD TV used LB03B chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 ºC ± 5 ºC(77 ºF ± 9 ºF), CST: 40 ºC ± 5 ºC
2) Relative Humidity : 65 % ± 10 %
3) Power Voltage: Standard input voltage (AC 100-240 V~ 50 / 60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with
BOM.
5) The receiver must be operated for about 5 minutes prior to the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC :CE, IEC
4. Model General Specification
- 4 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
No. Item Specification Remarks
1 Market Asia, Oceania, Africa, DTV & Analog
Middle East *DTV Region: Australia/New Zealand(AU), Singapore(SG),
(PAL/DVB Market) Indonesia(ID), Malaysia(MY), Vietnam(VN), South Africa(SA).
-Considering for Israel(IL)
2 Broadcasting system 1) PAL/SECAM–B/G/D/K * Australia/India : only PAL
2) PAL-I/II
3) NTSC-M
4) DVB-T
3 Receiving system Analog : Upper Heterodyne G DBV-T
Digital : COFDM (DVB-T) - Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
4 Video Input RCA PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60
5 Component Input Y/Cb/Cr
Y/Pb/Pr
6 RGB Input RGB-PC Analog(D-SUB 15PIN)
7 HDMI Input HDMI1/2/3 : HDMI/DVI PC (HDMI version 1.3)
HDMI4 : Only HDMI Support HDCP
PCM/AC-3
8 Audio Input RGB/DVI Audio/Component/AV L/R Input
9 SDPIF out Optical Output
10 Earphone out L/R Out Available for all input source.
11 USB JPEG, MP3, Divx HD
