LG 42LS570T Service Manual

- 20 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
A22
A2
A21
A5
A10
AG1
900
300
200
400
540
521
530
800
810
710
700
910
560
410
570
120
510
501
500
310
* Set + Stand * Stand Base + Body
LV1
LV2
AG2
122
Dual Play
(Option)

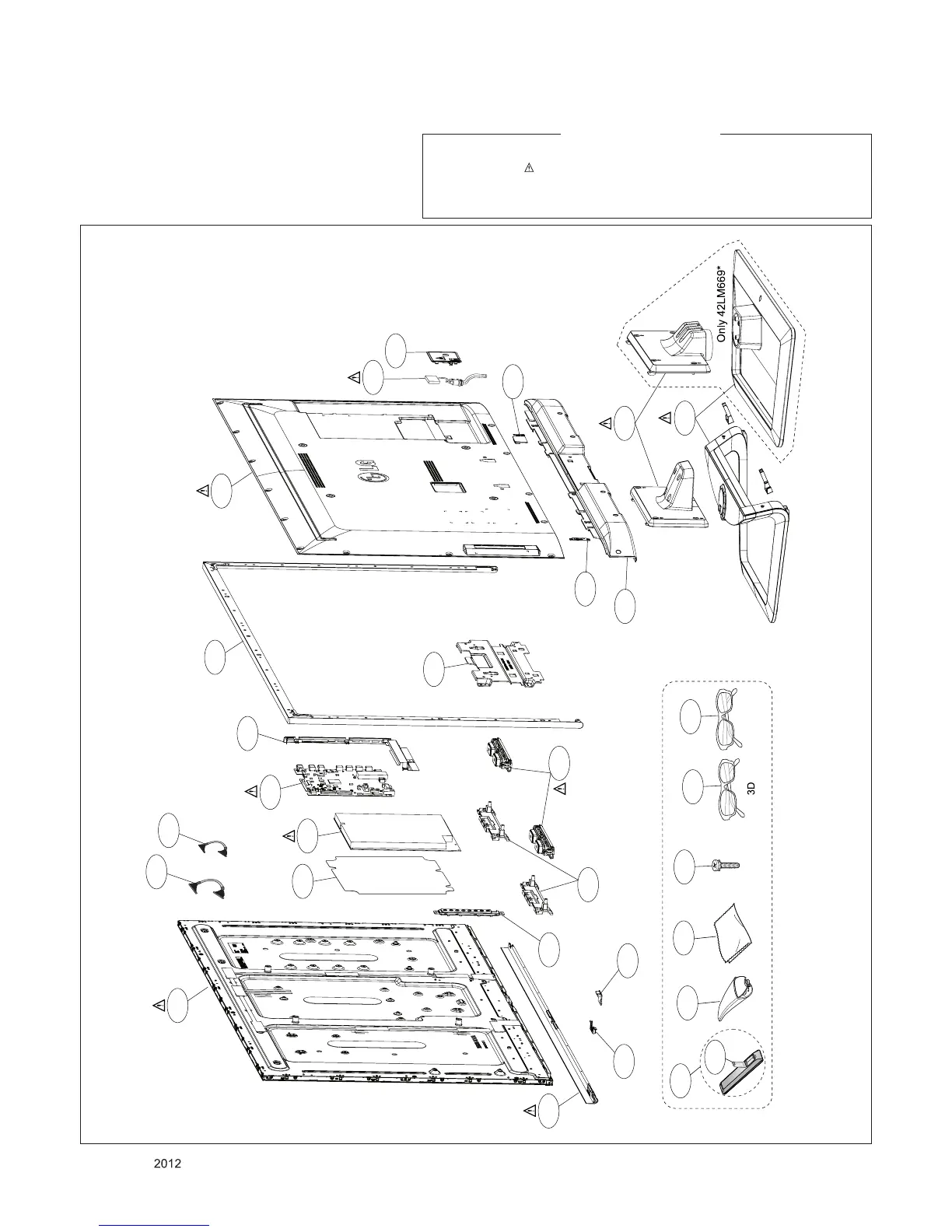

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

LG 42LS570T Specifications

General

Brand	LG
Model	42LS570T
Category	LCD TV
Language	English
