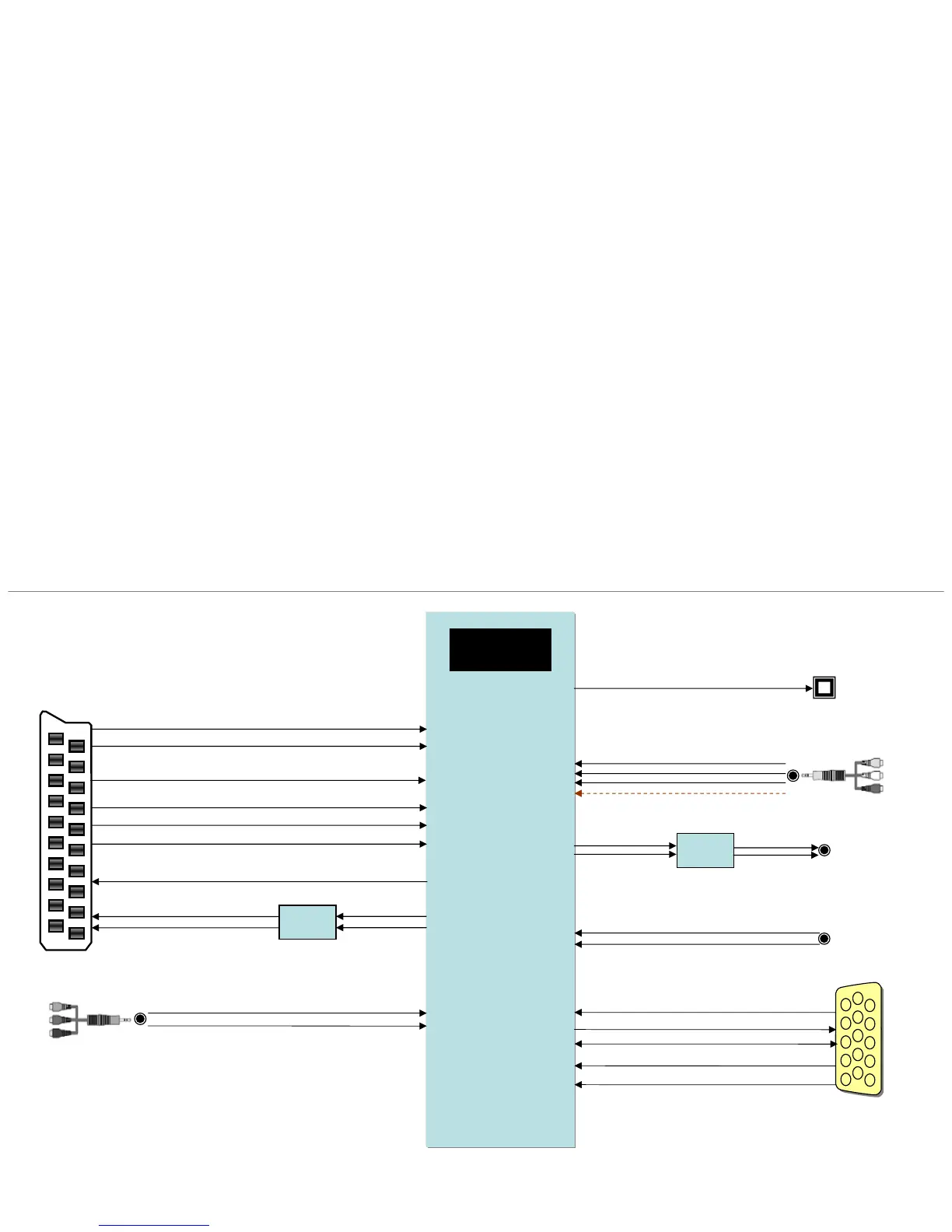

Jack Interface
[PR0P],[PB0P],[Y0P]
[OPCTRL8]
[VDACX_OUT]
[VDACY_OUT]
[AUOUTL0]
[ADIN0_SRV]
[CVBS2P]
[AIN0_L_ADDC]
[AIN0_R_AADC]
[SPDIF_OUT]
[AUOUTR0]
Main SoC
MTK
[SOY0]
[Y1P],[PB1P],[PR1P]
[OPCTRL9]
[AL0_ADAC]
[AR0_ADAC
[VGA_SCL]
[VGA_SDA]
[OPCTRL7]
[VSYNC], [HSYNC]
[RP],[GP],[BP]
[ASPDIF0]
SPDIF
SPDIF_OUT
[AIN2_L_AADC]
COMP 1 PHONE JACK
COMP1_Y/Pb/Pr
COMP1_DET
SC_DET
SC_R/G/B +
SC_ID
DTV/MNT_V_OUT
DTV/MNT_L_OUT
IC6000
AZ4580M
SC_L/R_IN
SC_CVBS_IN
[SCART_LOUT]
[SCART_ROUT]DTV/MNT_R_OUT
SC_FB
[AIN3_R_AADC]
[AIN3_L_AADC]
[CVBS0P]
[OPCTRL5]
AV1_L_IN
AV1_R_IN
AV1_CVBS_DET
AV1_CVBS_IN
CVBS 1 PHONE JACK
EARPHONE
JACK
HP_LOUT_MAIN
HP_ROUT_MAIN
RGB_PC
RGB_DDC_SCL
RGB_DDC_SDA
DSUB_DET
DSUB_VSYNC, DSUB_HSYNC
DSUB_R+, DSUB_G+, DSUB_B+
PC AUDIO
PC_L_IN
PC_R_IN
[AIN2_R_AADC]
Full Scart(18 Pin Gender)
IC6100
TPA6132A2
HP_LOUT_AMP
HP_ROUT_AMP
Copyright © 2012 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
