- 18 -

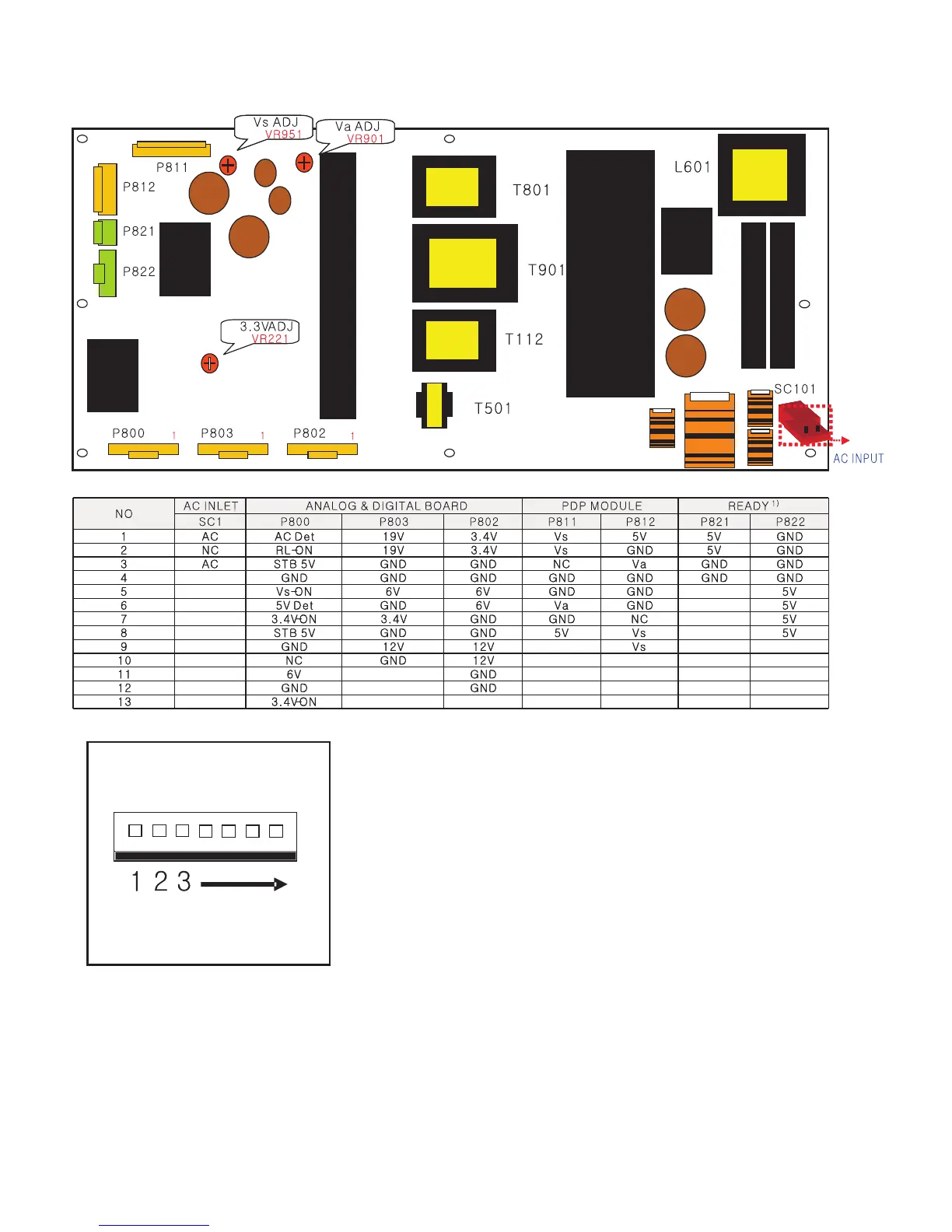

1-2. 42” Power Board Structure
T801: Vs Trans
T901: Va Trans
T112: Low Voltage Trans
T501: ST-BY Trans
T601: PFC Inductor
