LG 42PC1R Series Service Manual

- 7 -
AC IN
RS-232C IN
(CONTROL(CONTROL & SERVICE)
ANTENNA
IN
AV 1 AV 2
AUDIO OUT
VARIABLE
RGB IN
VIDEO
AUDIO
COMPONENT IN
AV IN 4
L/MONO
R
AUDIOAUDIO
VIDEOVIDEO
MONO
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
RGB IN
(PC/DTV)
AUDIO
(RGB/DVI)
2
1 (DVI)
HDMI IN
CONTROL IN
REMOTE

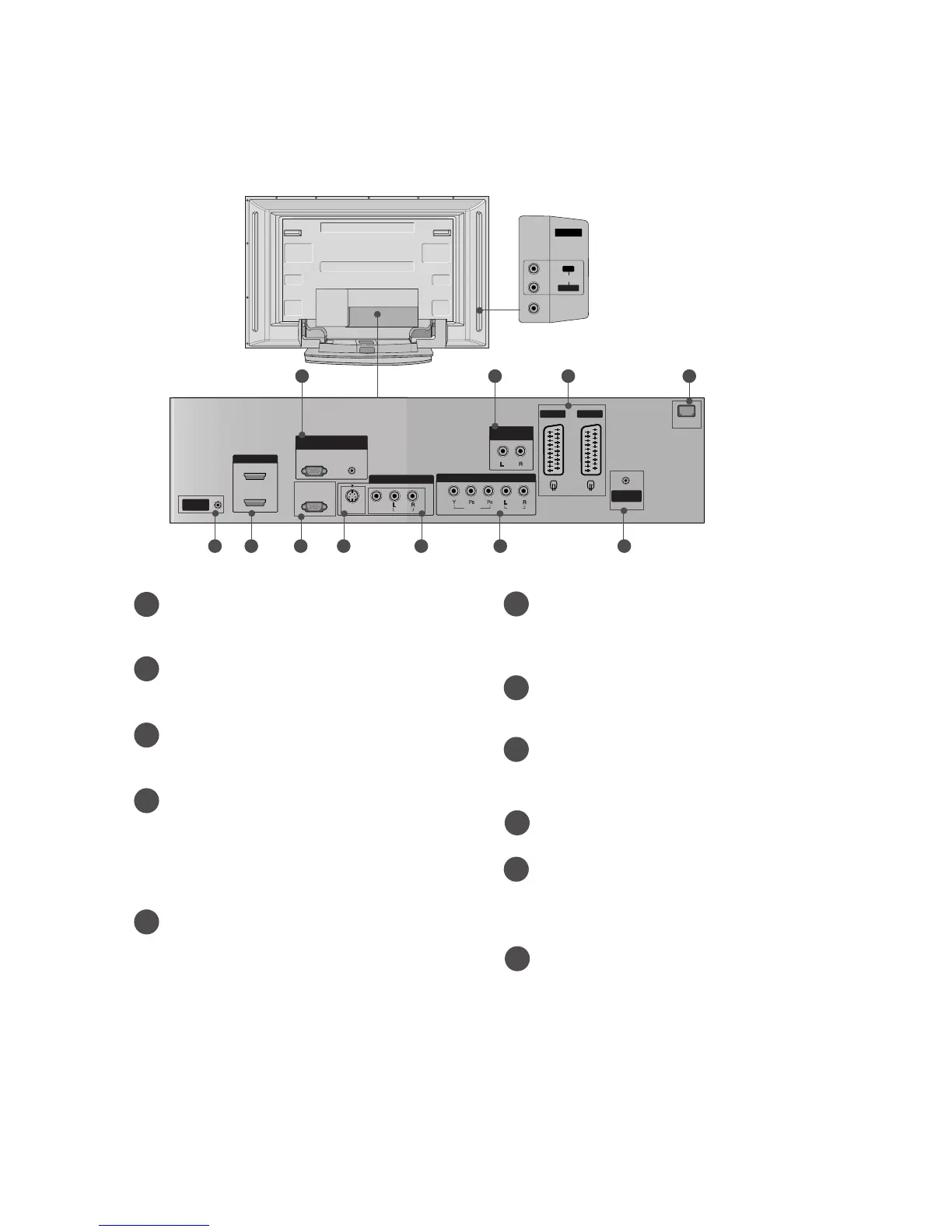

Back Connection Panel
AUDIO Input
Connections are available for listen-
ing stereo sound from an external
device.
VIDEO Input
Connects the video signal from a
video device.
RGB/Audio Input
Connect the monitor output from a PC/DTV
to the appropriate input port.
Variable Audio Output
Connect an external amplifier or add a sub-
woofer to your surround sound system.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from
an external device to these jacks.
Power Cord Socket
This TV operates on an AC power. The
voltage is indicated on the Specifications
page. Never attempt to operate the TV on
DC power.
Remote Control Port
HDMI Input
Connect a HDMI signal to HDMI IN.
Connect DVI(VIDEO) signal to HDMI/DVI
port with DVI to HDMI cable.
RS-232C Input
(CONTROL&SERVICE)Port
Connect the serial port of the control
devices to the RS-232C jack.
S-Video Input
Connect S-Video out from an S-VIDEO
device.
Audio/Video Input
Connect audio/video output from an exter-
nal device to these jacks.
Component Input
Connect a component video/audio device
to these jacks.
Antenna Input
1
2
3
4
5
6
7
8
9
10
11
4321
7 8 9
10 11
65
(except 42PC3RV
*
)
