GG
CCoommppoonneenntt IInnppuutt ppoorrttss

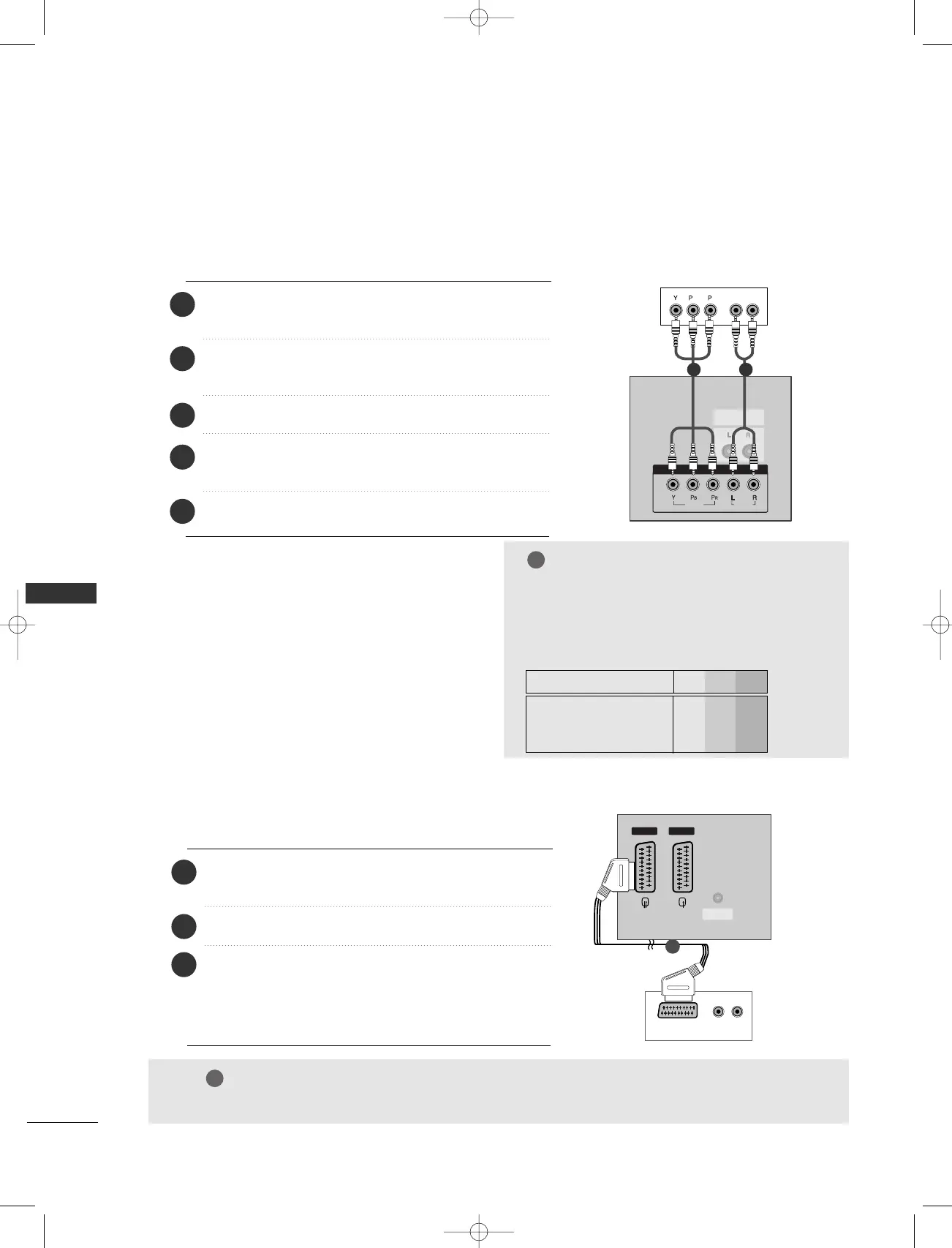

To get better picture quality, connect a DVD
player to the component input ports as
shown below.
NOTE
GG
Please use the shield scart cable.
1 2
Y P
B
P
R
Component ports on the TV
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
P
R
Video output ports
on DVD player
When connecting with a component cable
Connect the video outputs (Y, PB, PR) of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the set.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the set.
Turn on the DVD player, insert a DVD.
Select
CCoommppoonneenntt
input source with using the
IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating instructions.
1
2
3
4
5
When connecting with a Euro Scart
Connect the Euro scart socket of the DVD to the AV1
Euro scart socket on the set.
Turn on the DVD player, insert a DVD.
Select AV1 input source with using the INPUT button on
the remote control.
- If connected to
AAVV22
Euro scart socket, select
AAVV22
input source.
1
2
3
CONNECTIONS & SETUP
DVD SETUP
Hotel_0025U 11/26/07 1:33 PM Page 20
