LG 42PC1R Series User Manual

69
APPENDIX

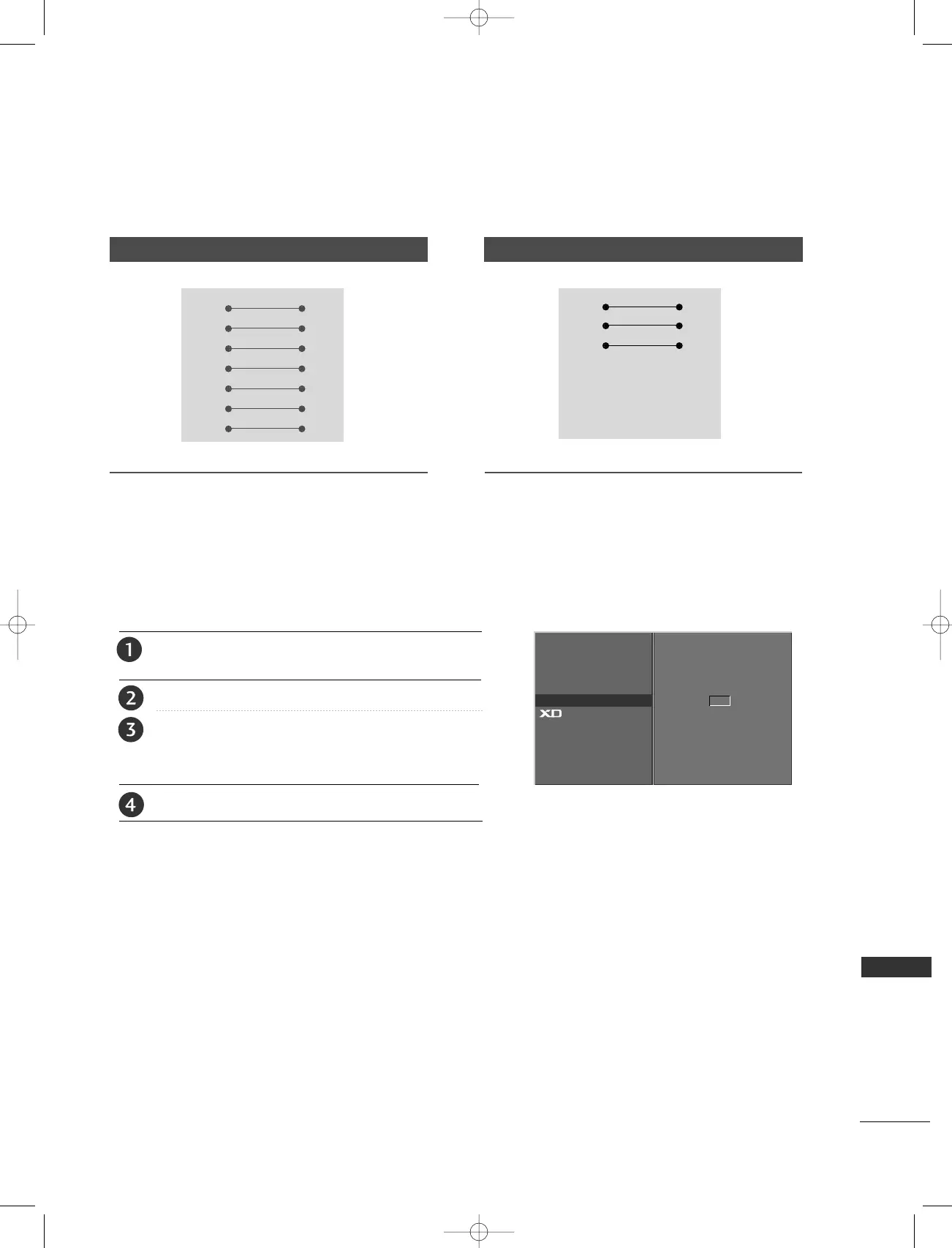

RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
1
Set ID
- Use this function to specify a set ID number.
- Refer to ‘Real Data Mapping 1’. See page 73.
Press the
MMEENNUU
button and then
DD
//
EE
button
to select the
SPECIAL menu.
Press the
GG
button and then use
DD
//
EE
button to select Set ID.
Press the
GG
button and then use
FF
//
GG
button to
adjust
Set ID to choose the desired monitor ID number.
• The adjustment range of
Set ID is 1 ~ 99.
Press the
EEXXIITT
button to return to normal TV viewing.
Language
Child lock
ISM Method
Low Power
Set ID
G
Demo
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (reverse) cable.
Hotel_0025U 11/26/07 1:33 PM Page 69
