Plasma Fall 2008 42PG20

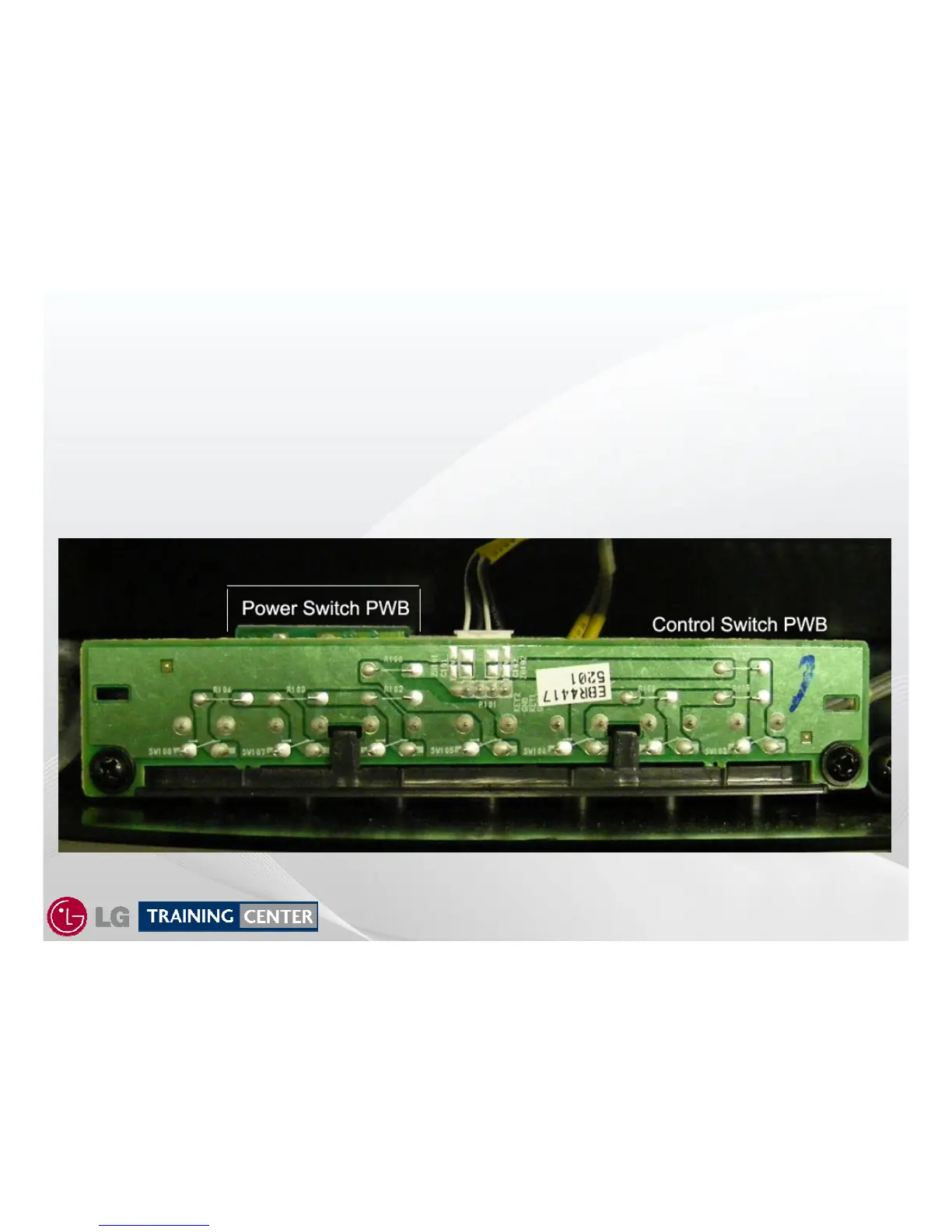

The Control Switch PWB and Power Switch PWB are located (as viewed from the
rear) in the lower left hand section.
To remove, unplug the connector P101 and remove the 2 screws. Under each screw
there is a black tab. Release these tabs to lift the PWB upward. Then remove the
connector from the Power Switch PWB and remove it’s two screws.
Ft Control PWB and Power Switch PWB Removal
Ft Control PWB and Power Switch PWB Removal
