LG 42PG20 - Page 55

55
Plasma Fall 2008 42PG20

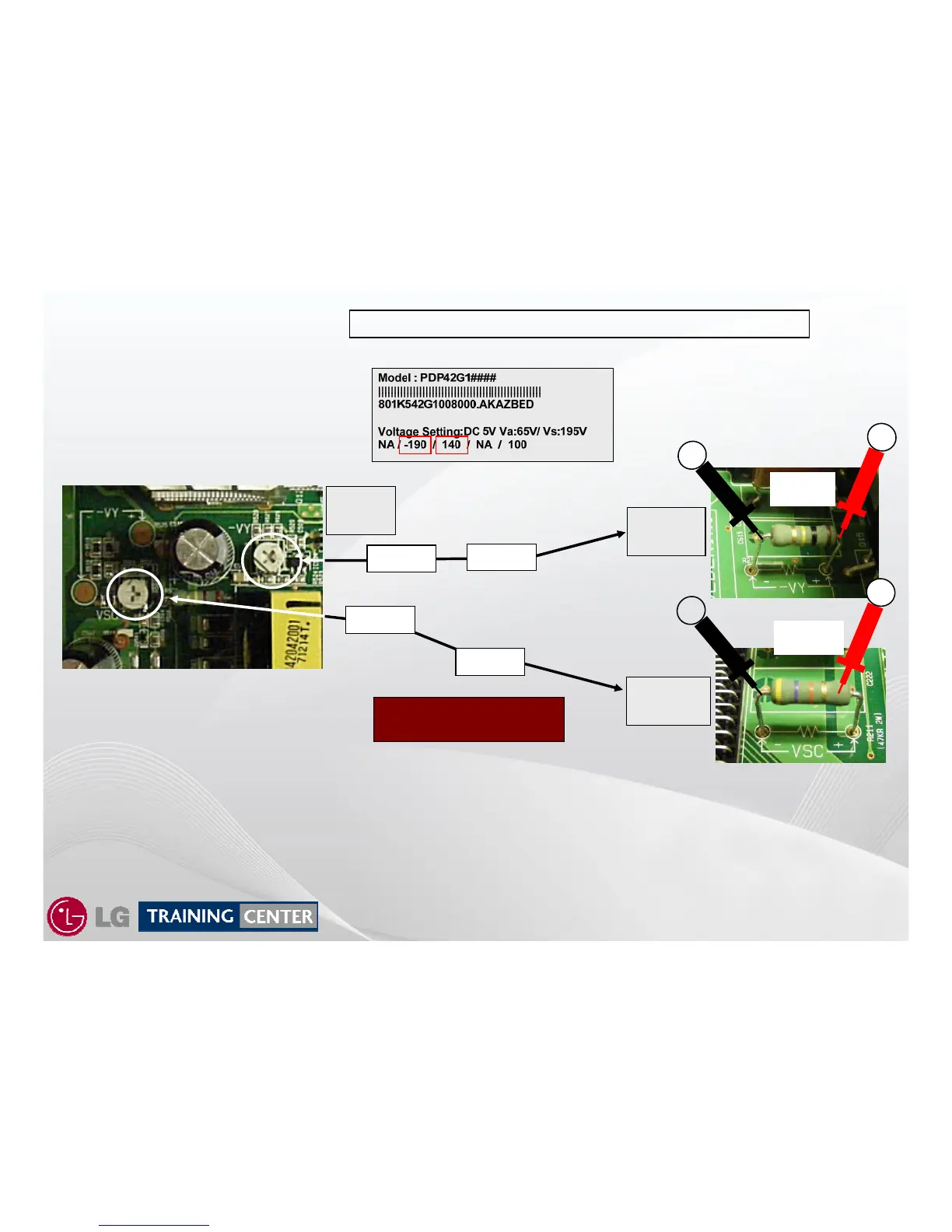

Y SUSTAIN ADJUSTMENT DETAILS
VSC and
VSC and
-
-
VY Adjustments
VY Adjustments
Lower
Left Side
Of PWB
These are DC level
Voltage Adjustments
VSC
-VY
Lower
Left Side
of PWB
VSC TP
R211
Middle
Left Side
of PWB
-Vy TP
R210
Voltage Reads Positive
VR501
Vsc TP
VR502
-Vy TP
Set should run for 15 minutes, this is the “Heat Run” mode.
Set screen to “White Wash” mode or 100 IRE White input.
Adjust –Vy to 190V (+/- 1V)
Adjust VSC to 140 (+/- 1V)
+
-
+
-
Heat Run, Vs, Va adjustments should have been completed.
