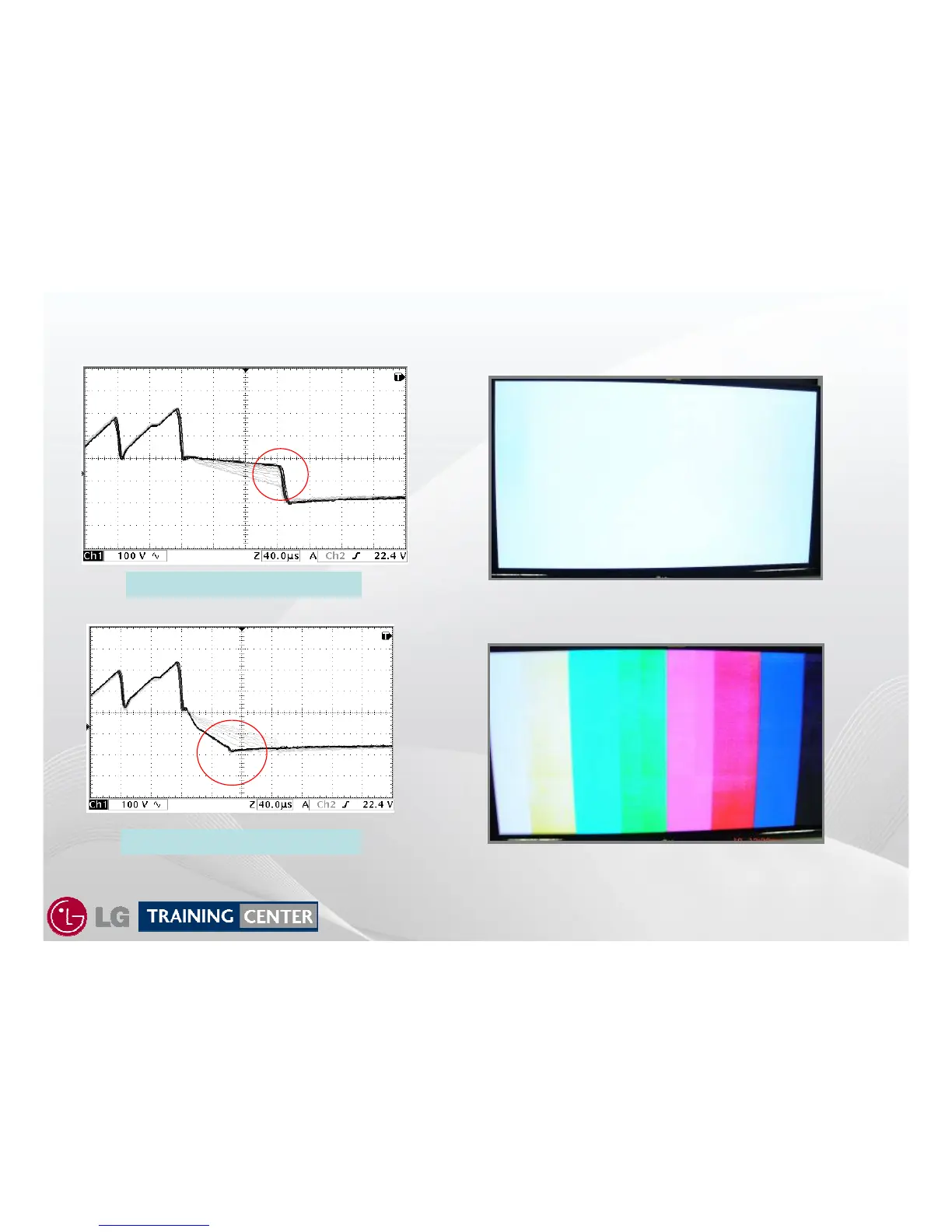

Plasma Fall 2008 42PG20
All of the center washes out due to increased Vset_DN time.
The center begins to wash out and arc due to decreased
Vset DN time.
Panel Waveform Adjustment
Vset DN too low
Vset DN too high
V Set
V Set
Dn
Dn
Too High or Low
Too High or Low
Vset Dn swing is Minimum 60uS Max 123uS
NOTE: If Vset DN too high, this set
will go to excessive bright, then
shutdown.
To correct, remove the LVDS from
control PWB and make necessary
adjustments.
To Next Page
