LG 42PG6000 - System Control and Power Diagrams

- 25 -
LGE Internal Use OnlyCopyright©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

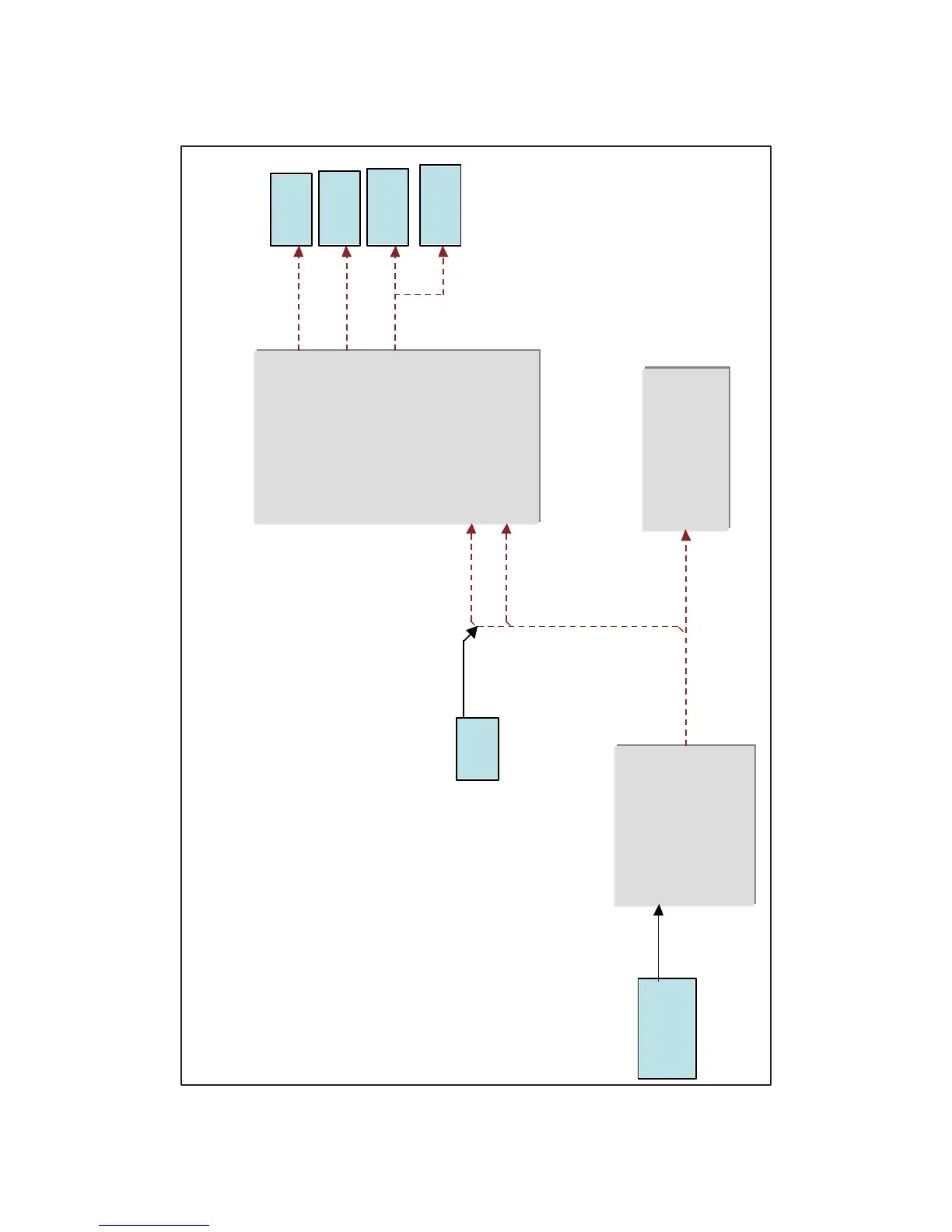

BlockDiagram (Reset)
KIA7029AF
Power On Reset
IC803
MICOM Reset
[NRST]
S29GL256N10TFI020
NOR Flash
IC404
RESET
EJTAG RESET
[EJ_RST_N]
SYS RESET
[RESET_N]
Tic S/W
NTP3000
SW_RESET
[VXO_D5]
PCMCIA
CI_RST
[POD_RESET]
TUNER
FE_RESET
[VXI_D14]
FLI10306
MICOM
[GPIOE6]
MSP
4458
