Power Voltage

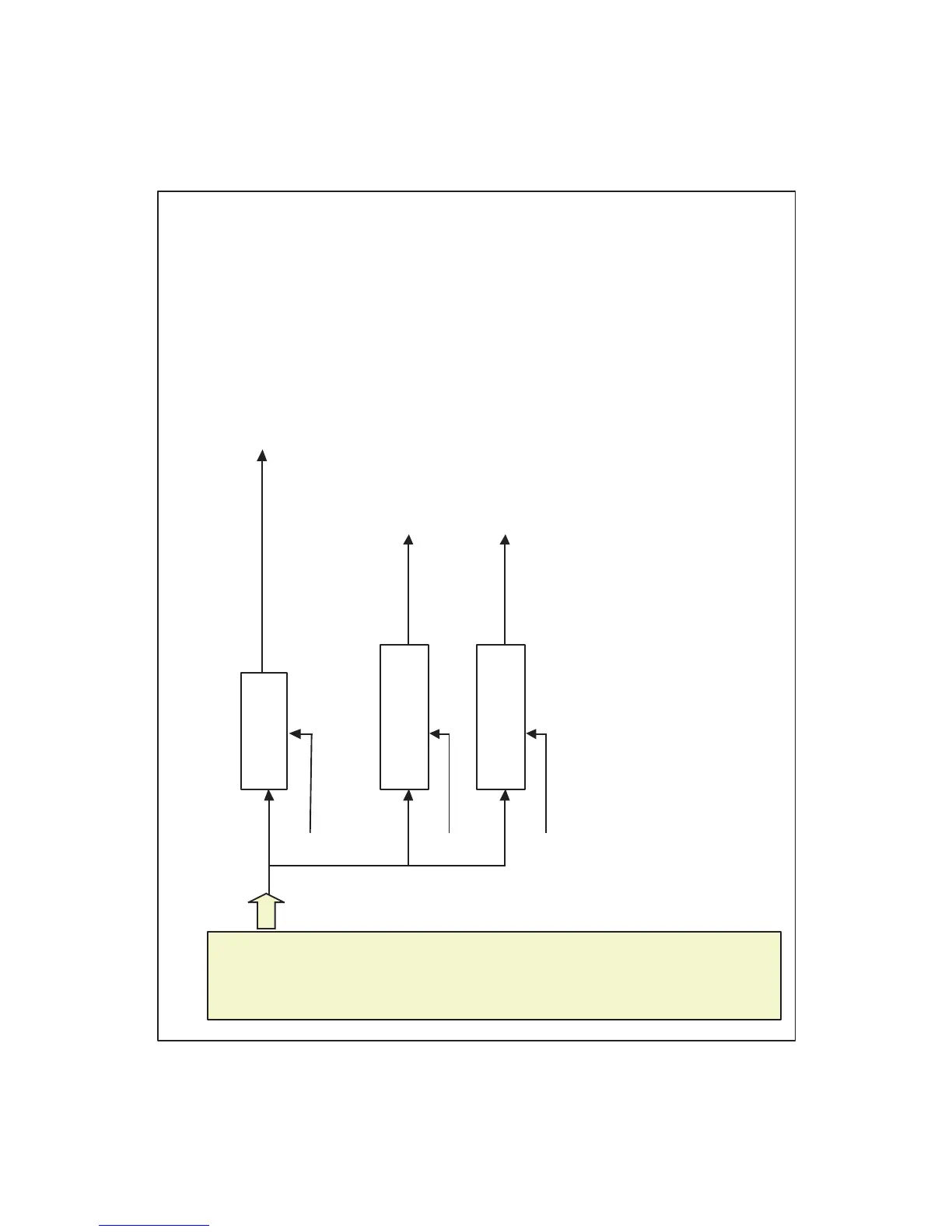

BlockDiagram
5V
KIA78R33F 1A (IC1001)
3.3V_ON
+3.3V-DOUGLAS
PQ018EZ02ZPH 0.23$ (IC1000)
+1.8V_DOUGLAS_DDR
1.8V_DOUGLAS_EN
SC4519STRT 600Khz,3A,0.41$ (IC1002)
+1.26V_DOUGLAS
1.26V_DOUGLAS_EN
