BACK COVER FOR
WIRE ARRANGEMENT
■
Image shown may differ from your TV.
After Connecting the cables as necessary, install
CABLE HOLDER as shown and bundle the cables.
8
PREPARATION
PREPARATION

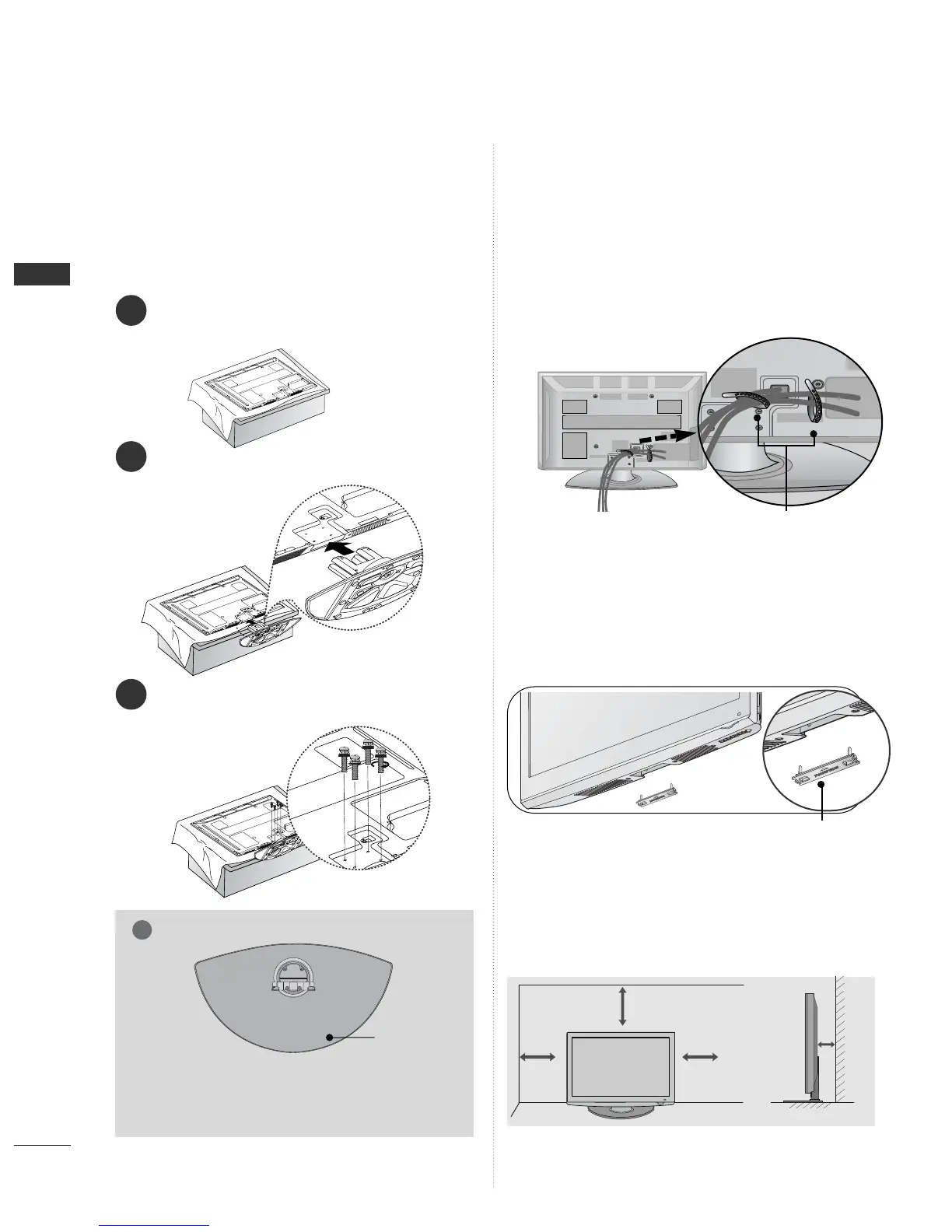

STAND INSTALLATION
1
2
3
Carefully place the TV screen side down on a cushioned
surface to protect the screen from damage.
Assemble the TV as shown.
Fix the 4 bolts securely using the holes in the
back of the TV.
■
Image shown may differ from your TV.
When installing the wall-mounted unit, use the protection
cover. Insert the
PPRROOTTEECCTTIIOONN CCOOVVEERR
into the TV
until clicking sound.
NOT USING THE DESK-TYPE STAND
protection cover
CABLE HOLDER
4 inches
4 inches
4 inches
4 inches
DESKTOP PEDESTAL INSTALLATION
For adequate ventilation allow a clearance of 4”
(10cm) all around the TV.
GG
When assembling the stand, make sure to distinguish
and assemble the front and rear side of the stand
correctly.
NOTE
FRONT
■
Image shown may differ from your TV.
■
When assembling the desk type stand, check
whether the bolt is fully tightened. (If not tight-
ened fully, the product can tilt forward after the
product installation.) If you tighten the bolt with
excessive force, the bolt can deviate from abrasion
of the tightening part of the bolt.
