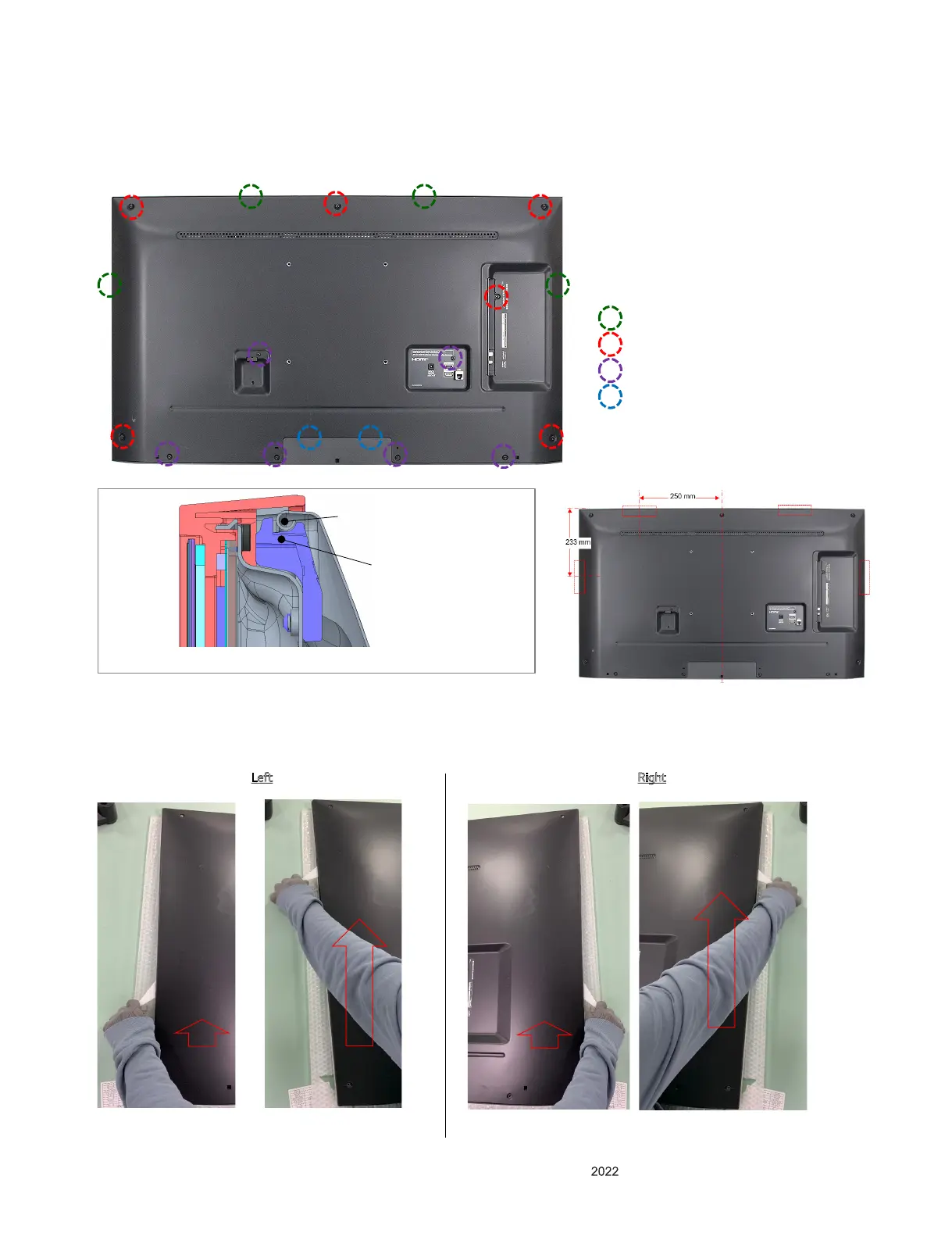

2. Rear Cover Disassemble Guide
(1) Lay the set on a flat Pad. And than remove Screw.
(2) Recognize B/C Latch Points, and ready remove B/C.
(3) Lift the rear Cover with Stripper to make space between rear Cover and Module. Disassemble the rear cover and module while
moving the stripper in the direction of the arrow. (from Bottom to Top)
* Stripper direction to remove : from Bottom to Top
Holder 4 Points
Screw M3xL5.5 (Machine) 6 Points
Screw M4xL10 (Taptite) 6 Points
Latch 2 Points
B/C Assembly = Module (Holder) + B/C (Curling)
Holder
Rear Cover Curling shape
Left Right
<Step1>
<Step2>
Up
Stripper
Up
Stripper
<Step1> <Step2>
Up
Stripper
Up
Stripper
