- 15 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

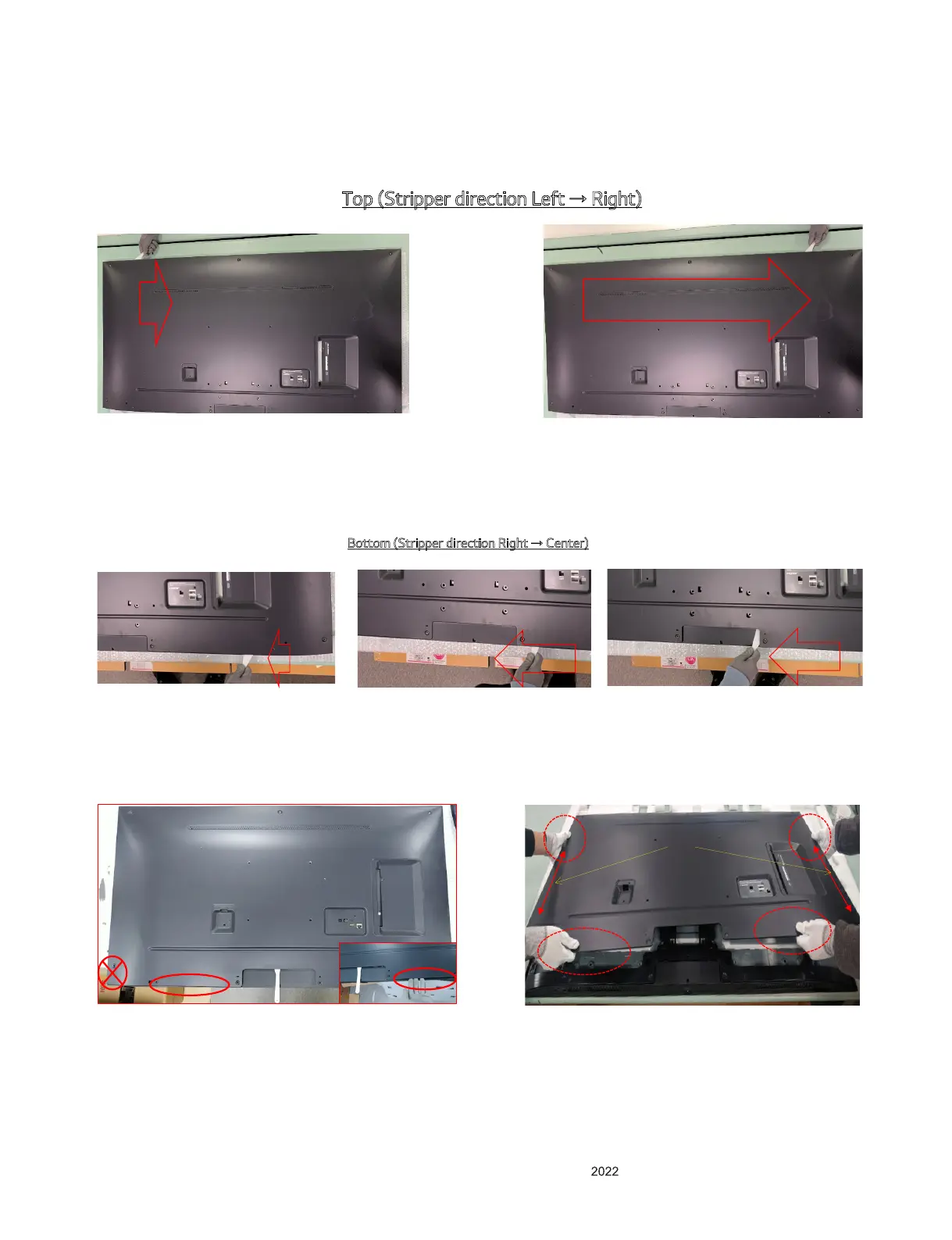

(4) Lift the rear Cover with Stripper to make space between rear Cover and Module. Disassemble the rear cover and module while
moving the stripper in the direction of the arrow. (from Left to Right)
* Stripper direction to remove direction : from Left to Right
(5) Lift the rear Cover with Stripper to make space between rear Cover and Module. Disassemble the rear cover and module while
moving the stripper in the direction of the arrow. (from Right to Center)
* Stripper direction to remove direction : from Right to Center
(6) Grab slightly on specified area of rear cover and remove.
-. Grab area “A” : 43/50: 300~400mm, 55/65: 600~800mm
(7) Check 14 page for detailed handling guide on B/C.
Top (Stripper direction Left → Right)
Stripper
Stripper
In
In
<Step1>
<Step2>
Bottom (Stripper direction Right → Center)
Stripper
In
Stripper
In
Stripper
In
<Step1>
<Step2>
<Step3>
<Step2>
<Step1>
* Use stripper while grabbing bottom side of rear cover.
(To prevent flexure, “DO NOT” grab bottom edge)
A
To Next Page
