LG 47LM760T User Manual

Standard Repair Process Detail Technical Manual

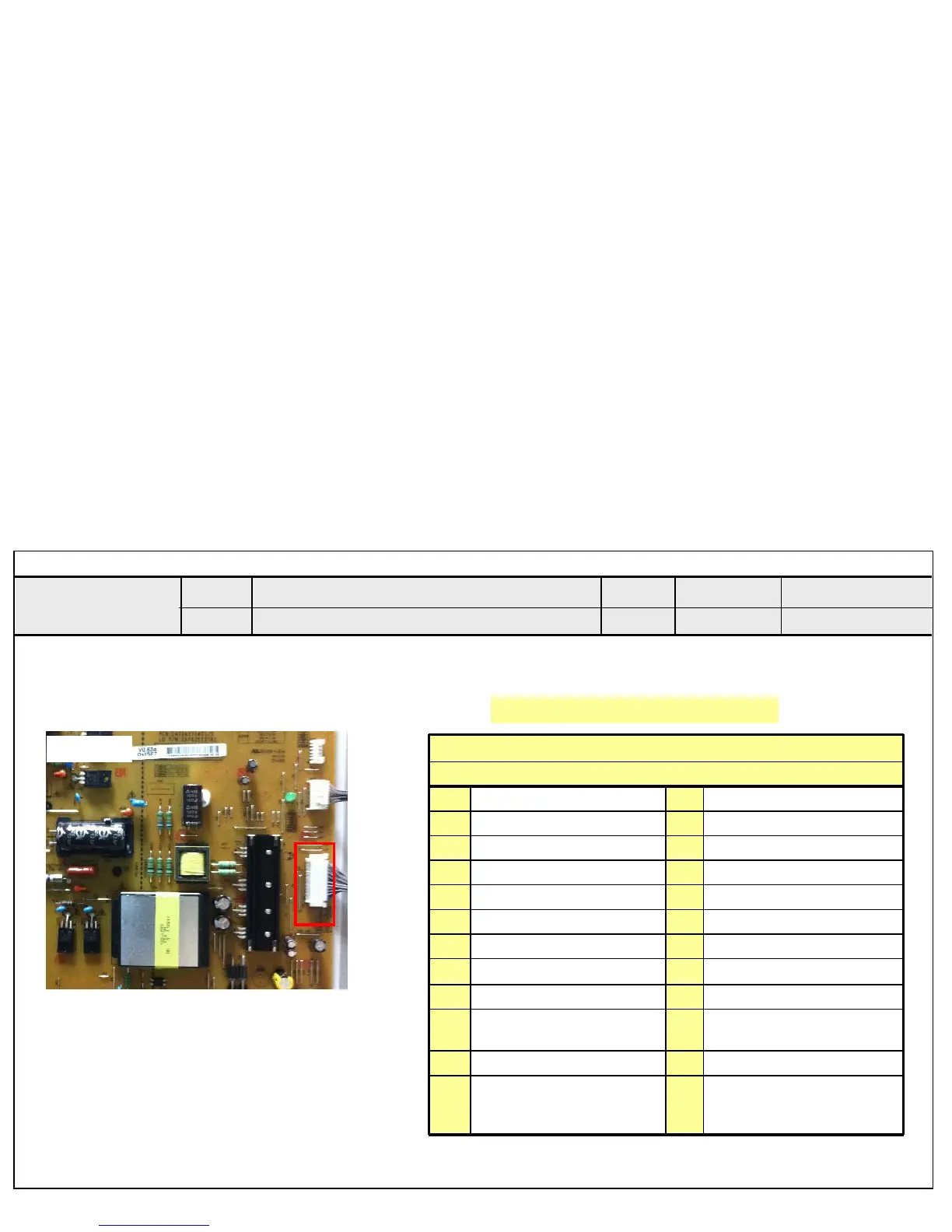

Power Board voltage measuring method
A. Video error_No video/ Audio
A5
Established
date
Revised
date
Error
symptom
Content
LCD TV
Check the DC 24V, 12V, 3.5V.
24 Pin (Power Board ↔ Main Board)
SMAW200-H24S (YEONHO)
1
Power on
2
24V
3
24V
4
24V
5
GND
6
GND
7
GND
8
GND
9
3.5V
10
3.5V
11
3.5V
12
3.5V
13 GND 14
GND
15 GND 16
GND
17 12V 18
Inverter On/off
19 12V 20
Lamp : A-Dim
LED : N.C
21 12V 22
PWM Dim #1
23 GND/P_DIM2
• Lamp SCANNING Model
: PWM Dim #2
24 Error-out
Edge LED
2010. 12 .14
