SPECIFICATION
1. Application range
This specication is applied to the LW43B chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F),
CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100 - 240 V~, 50 / 60 Hz)
* Standard Voltage of each products is marked by models.
4) Specication and performance of each parts are followed
each drawing and specication by part number in accord-
ance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE Monitor test method followed.
2) Demanded other specication
- Safety : CE, IEC specication
- EMC : CE, IEC
4. General Specication
No. Item Content Remark
1 HDMI Input (2EA) HDMI Rear / support D-TV&PC
resolution
2 DVI Input (1EA) DVI
3 DP Input(1EA)/Output(1EA) DP Rear / support D-TV&PC
resolution
4 Audio Input (1EA) DVI Audio L/R Input

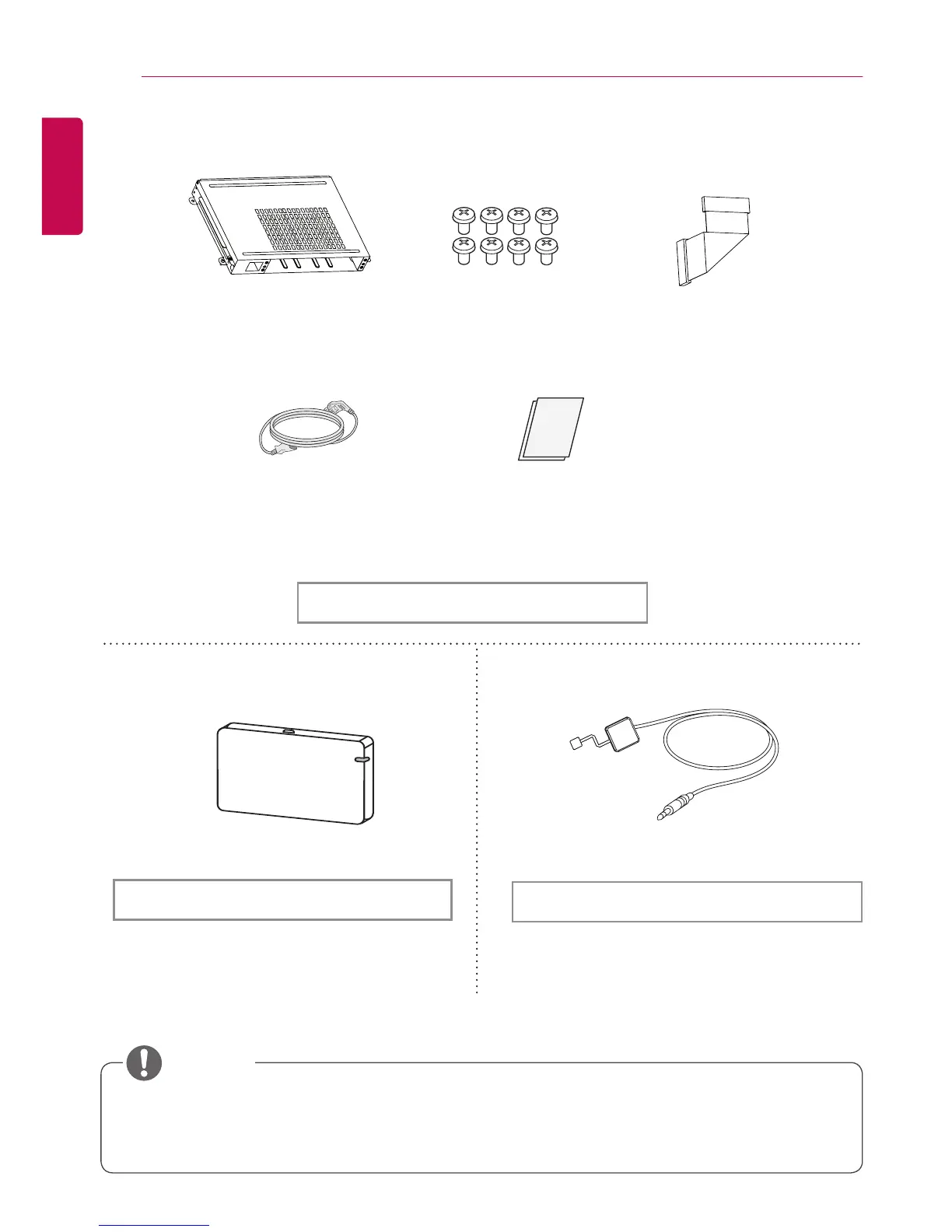

5 OPS Input(1EA) OPS(Open Pluggable Specication: Built-in PC) Optional Docking Port(OPS Kit
Accessory)
6 Speaker Output (1EA) Compatible with common speaker 10W*2Ch Output
7 IR&Brightness Sensor Input
(1EA)
IR&Brightness Sensor
8 Pixel Sensor Input (1EA) Pixel Sensor Optional
9 External USB (1EA) Picture, Music, Movie, SVC Device : Memory Stick, Mouse,
Keyboard, Wi-Fi USB Dongle
10 RS-232C Input(1EA)/Out-
put (1EA)
Display Control
11 LAN(1EA) RJ45, 100BASE-T Network Connection for
SuperSign-W/SuperSign-C
12 Local Key 8 keys
4.1. General Specication
No. Item Specication Remarks
1 Supported Sync. Type Digital
2 Operating Frequency Digital
Horizontal 30 - 83 kHz
Vertical 60 Hz Only
3 Resolution Digital
Max 1920 × 1080 @ 60 Hz
Recommend 1920 × 1080 @ 60 Hz
4.2. DVI-D, HDMI, Display Port (PC) Specication
