9
ENGLISH

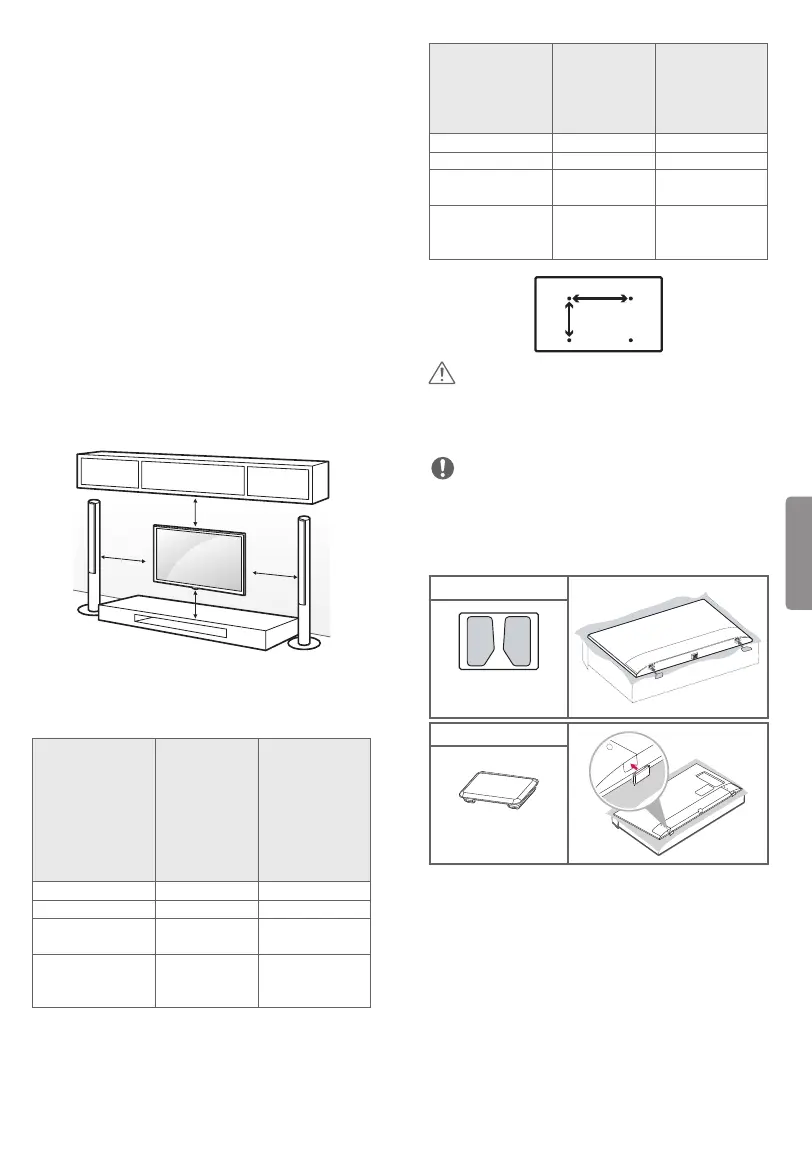

Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the wall
mount bracket on a solid wall perpendicular to the
floor. If you are attaching the TV to other building
materials, please contact qualified personnel to
install the wall mount. Detailed instructions will
be included with the wall mount. We recommend
that you use an LG brand wall mount. The LG wall
mount is easy to adjust or to connect the cables.
When you do not use LG’s wall mount bracket,
use a wall mount bracket where the device is
adequately secured to the wall with enough space
to allow connectivity to external devices. If you are
using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model
49UH7700
49UH850T
49UH8500
55UH770T
55UH7700
55UH850T
55UH8500
60UH770T
60UH7700
60UH850T
60UH8500
65UH770T
65UH7700
65UH850T
65UH8500
VESA (A x B) 300 x 300 300 x 300
Standard screw M6 M6
Number of
screws
4 4
Wall mount
bracket
(optional)
LSW350B
MSW240
LSW350B
Model
65UH950T
65UH9500
75UH8550
79UH953T
79UH9530
86UH955T
86UH9550
VESA (A x B) 300 x 200 600 x 400
Standard screw M6 M8
Number of
screws
4 4
Wall mount
bracket
(optional)
OTW420B LSW640B
A
B
CAUTION
• Remove the stand before installing the TV on a
wall mount by performing the stand attachment
in reverse.
NOTE
• When using the wall mounting bracket, apply
the adhesive protective label or protective cover
to cover the unused stand openings. This will
prevent the accumulation of dust and dirt. (Use
only when provided with your particular model.)
Provided Item
Adhesive
protective label
Provided Item
Protective cover
To Next Page
