EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP

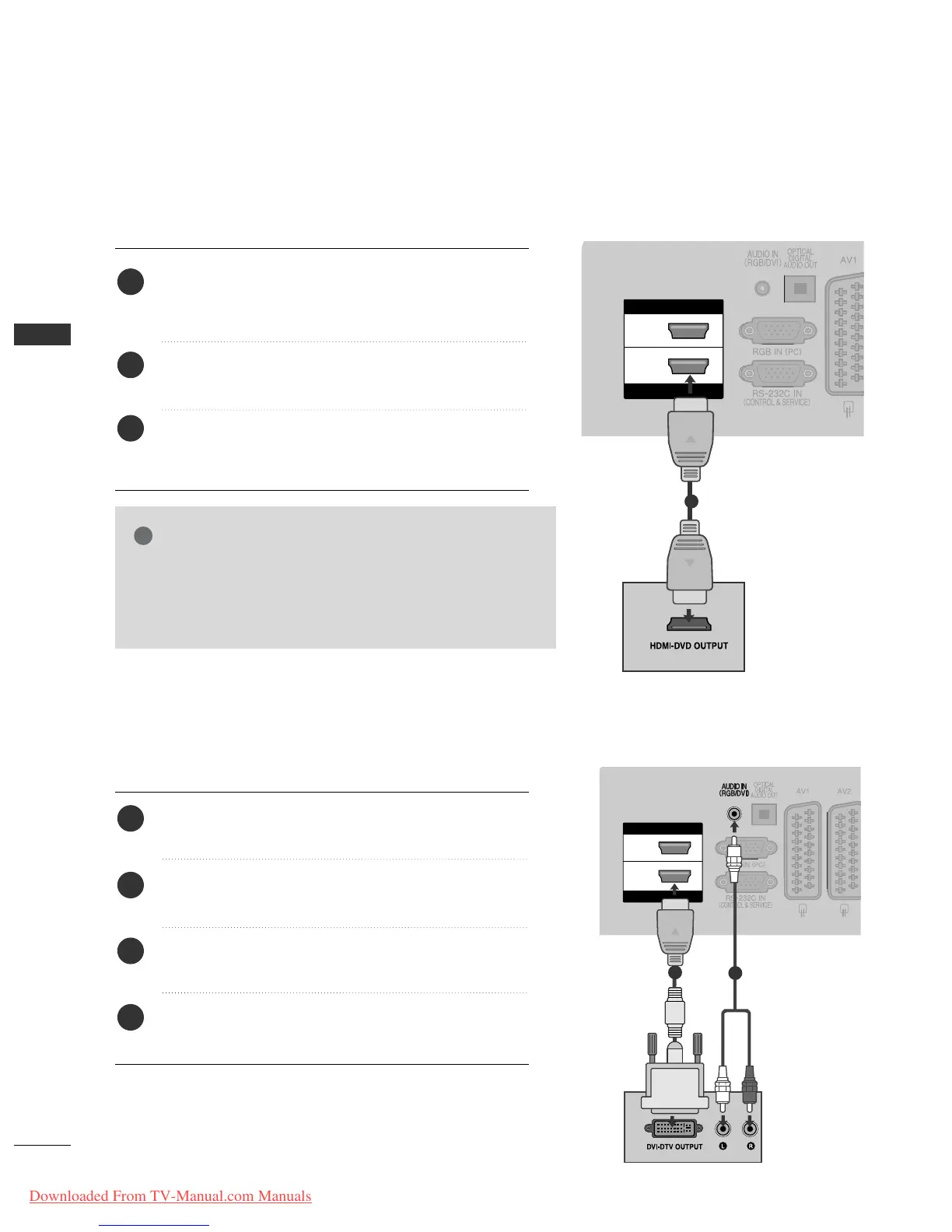

Connecting a set-top box with an HDMI cable
HDMI IN
HDMI/DVI IN
2
1
1
Connecting with an HDMI to DVI cable
(Except for 42/50PQ10
**,
42/50PQ11
**
)
HDMI IN
HDMI/DVI IN
2
1
1
2
Connect the digital set-top box to
HHDDMMII//DDVVII IINN 11
,
HHDDMMII IINN,, HHDDMMII IINN 22
or
HHDDMMII IINN 33
jack on the
TV.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input source using
the
IINNPPUUTT
button on the remote control.
2
3
1
Connect the digital set-top box to
HHDDMMII//DDVVII IINN 11
jack on the TV.
Connect the audio output of the digital set-top box to
the
AAUUDDIIOO IINN ((RRGGBB//DDVVII))
jack on the TV.
Turn on the digital set-top box.
(
Refer to the owner’s
manual for the digital set-top box.
)
Select
HHDDMMII11
input source using the
IINNPPUUTT
button
on the remote control.
2
3
4
1
GG
Check that your HDMI cable is version 1.3 or higher.
If the HDMI cables don’t support HDMI version 1.3, flicker-
ing or no screen display can result. Please use the latest
cables that support at least HDMI version 1.3.
