LG Electronics. Inc.2010
Making
전자 -6-2
PDP TV

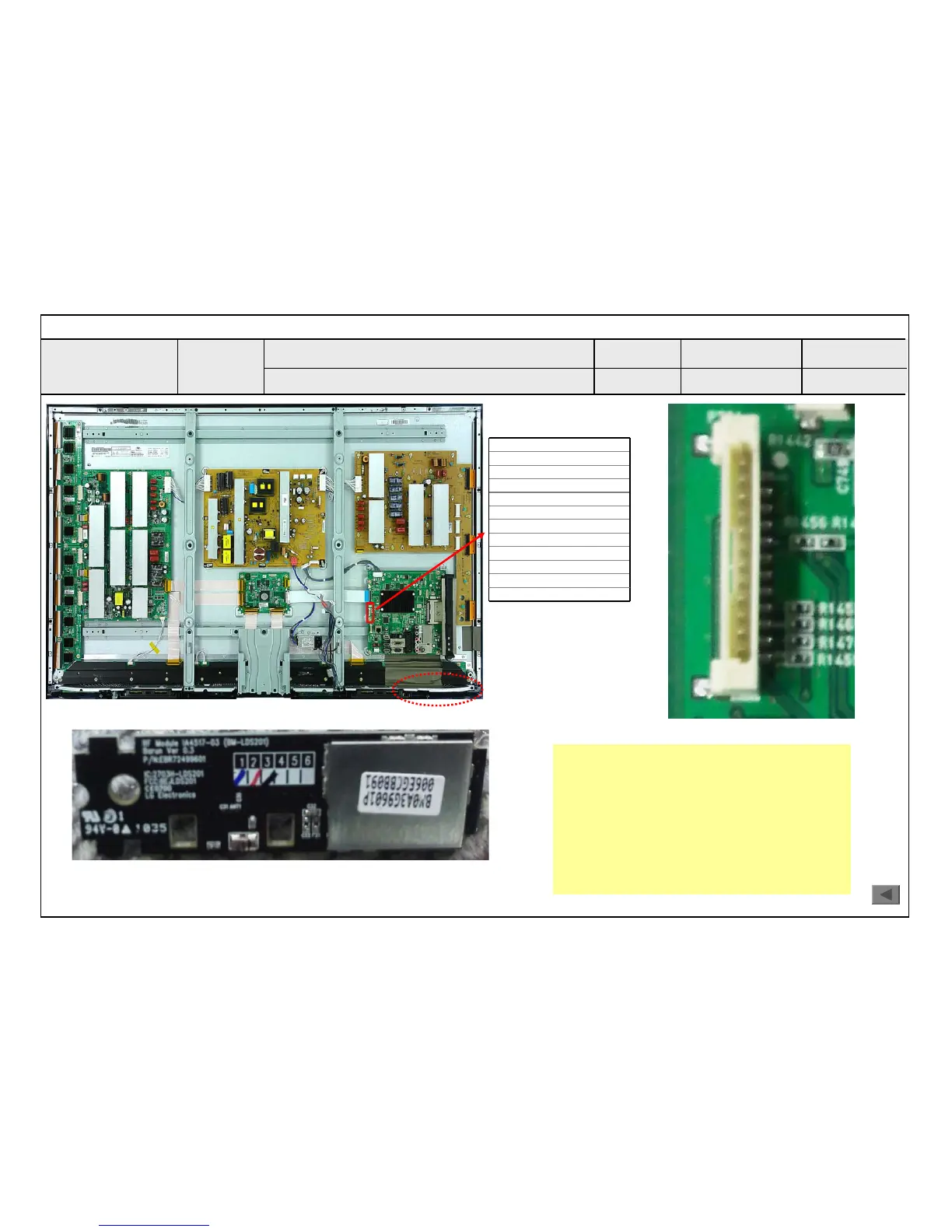

Repair Process-Reference data
1.Check connector was inserted properly
on Main board and RF emitter board.
2. Check whether appear voltage on multi meter
when operate RF emitter board.
Test Condition for case 3
Check Point: Pin 12
TV: power on status
Multi meter: Select DC 10V
A28
D. General function defect
Check RF emitter operation
Symptom
A28
3D_L/R_SYNC
3D_RF_GPIO2
+3.3V
GND
3D_RF_RXD
3D_RF_TXD
3D_RFMODULE_RESET
3D_RFMODULE_DC
3D_RFMODULE_DD
GND
3D_RF_GPIO0
3D_RF_GPIO1
RF emitter Board
2010. 11. 16
