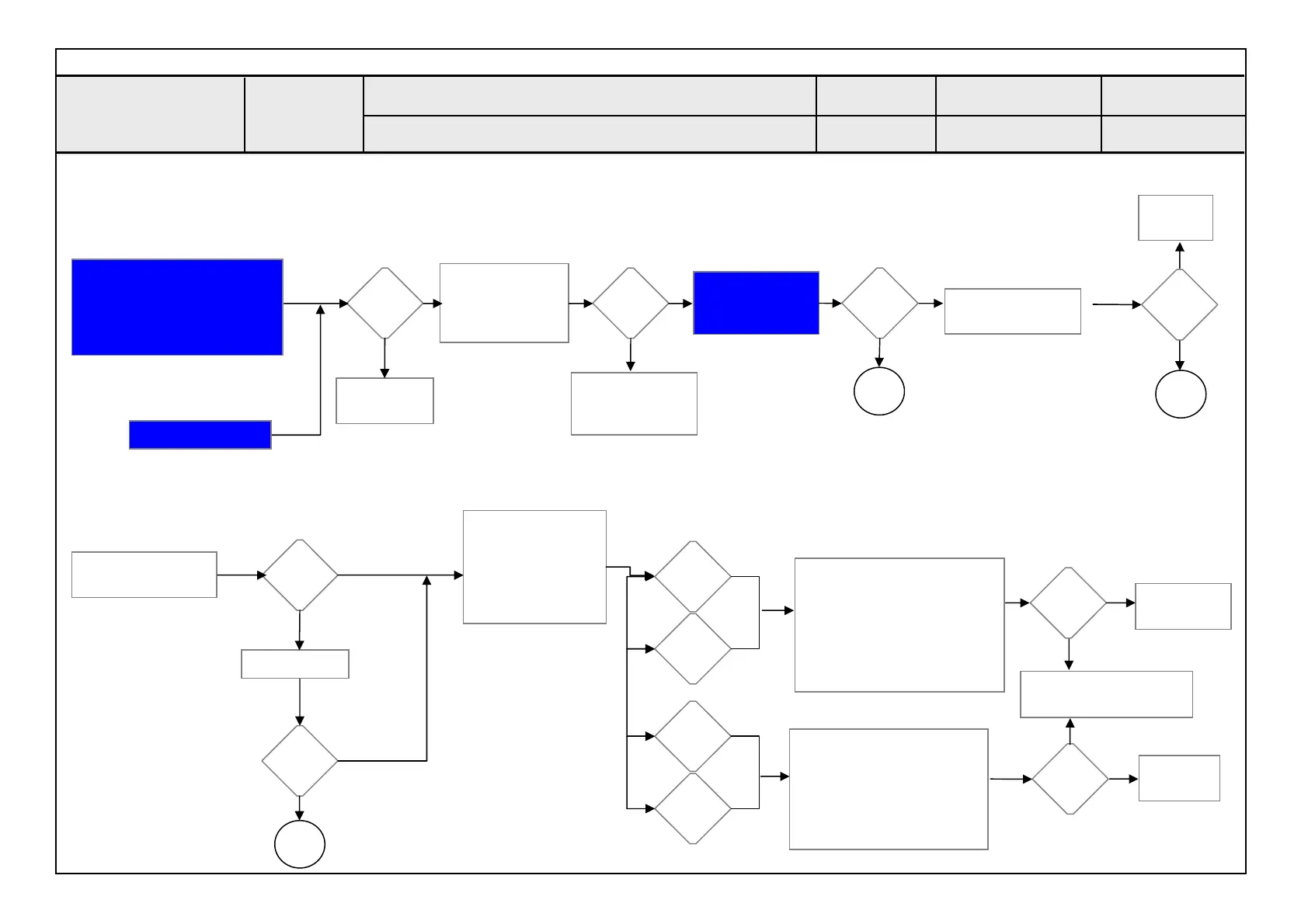

LG 55G2 - A. Video error: Vertical;Horizontal bar, residual image, light spot; A. Video error: External device screen error-Color error

Screen
normal?
N
Y
Check external
device
connection
condition
Y
N
Check and
replace Link
Cable
Normal?
Y
N
Screen
normal?
Replace Main B/D
(adjust VCOM)
Replace
module
Check color condition by input
-External Input
-Component
-RGB
-HDMI/DVI
End
Vertical/Horizontal bar, residual image, light spot
Request repair
for external
device
A. Video error
Vertical / Horizontal bar, residual image,
light spot, external device color error
☞A12
External device screen error-Color error
External
Input
error
Connect other external
device and cable
(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.
N
Y
Replace
Main B/D
Screen
normal?
Check screen
condition by input
-External Input
-Component
-RGB
-HDMI/DVI
Request repair for
external device
Component
error
RGB
error
HDMI/
DVI
Connect other external
device and cable
(Check normal operation of
External Input, Component,
RGB and HDMI/DVI by
connecting Jig, pattern
Generator ,Set-top Box etc.
Replace
Main B/D
Screen
normal?
N
Y
Check S/W Version
Y
N
Check
version
S/W Upgrade
Y
N
Normal
screen?
End
Y
N
Replace
Module
Screen
normal?
End
Established
date
Revised date
LCD TV
Error
symptom
Standard Repair Process
☞A9
☞ A10
Check Test pattern
38
2012.01.16
2012.03.21
