MAKING CONNECTIONS
Composite Connection

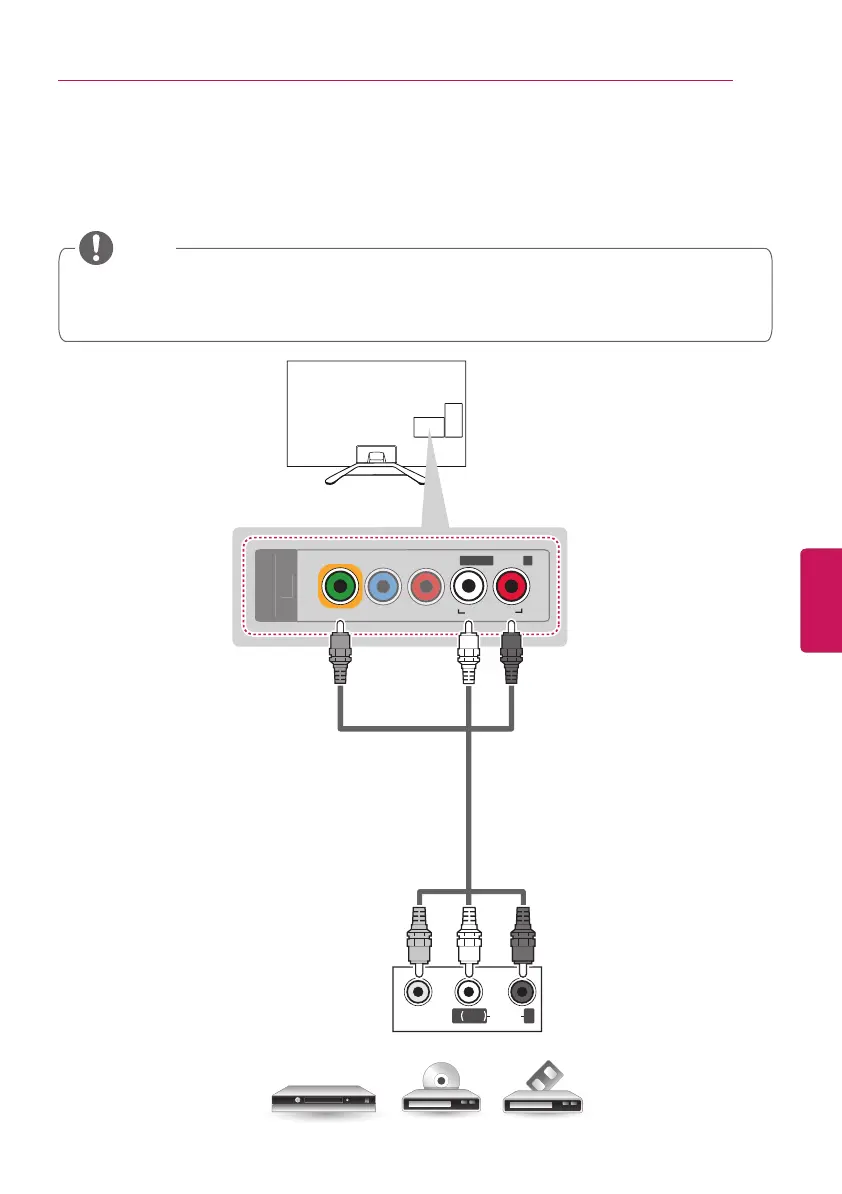

Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown in the following illustration.
y
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of
the TV.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
P
B
P
R
VIDEO /Y
PC-AUDIO IN
L/MONO AUDIO R
CO
MP
O
NENT I
N
/
AV IN
VIDEO
MONO
( )
AUDIOL R
VCR / DVD / Blu-Ray / HD Cable Box
YELLOW RED WHITE
YELLOW
RED
WHITE
(*Not Provided)
