ENGLISH
24
MAKING CONNECTIONS

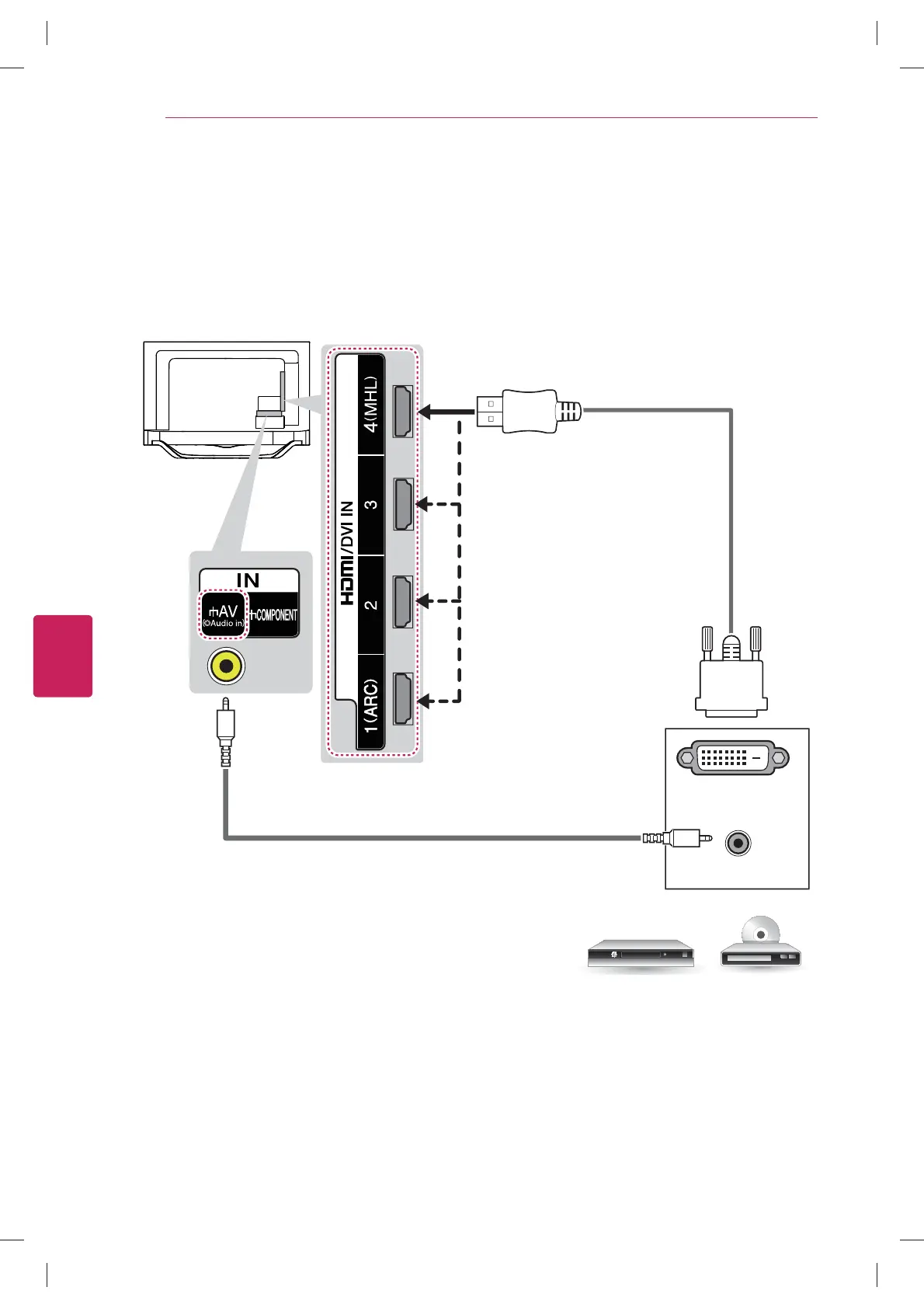

DVI to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the
DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.
AUDIO OUT
DVI OUT
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
YELLOW
Choose any HDMI/DVI input port to connect.
It does not matter which port you use.
