Standard Repair Process Detail Technical Manual

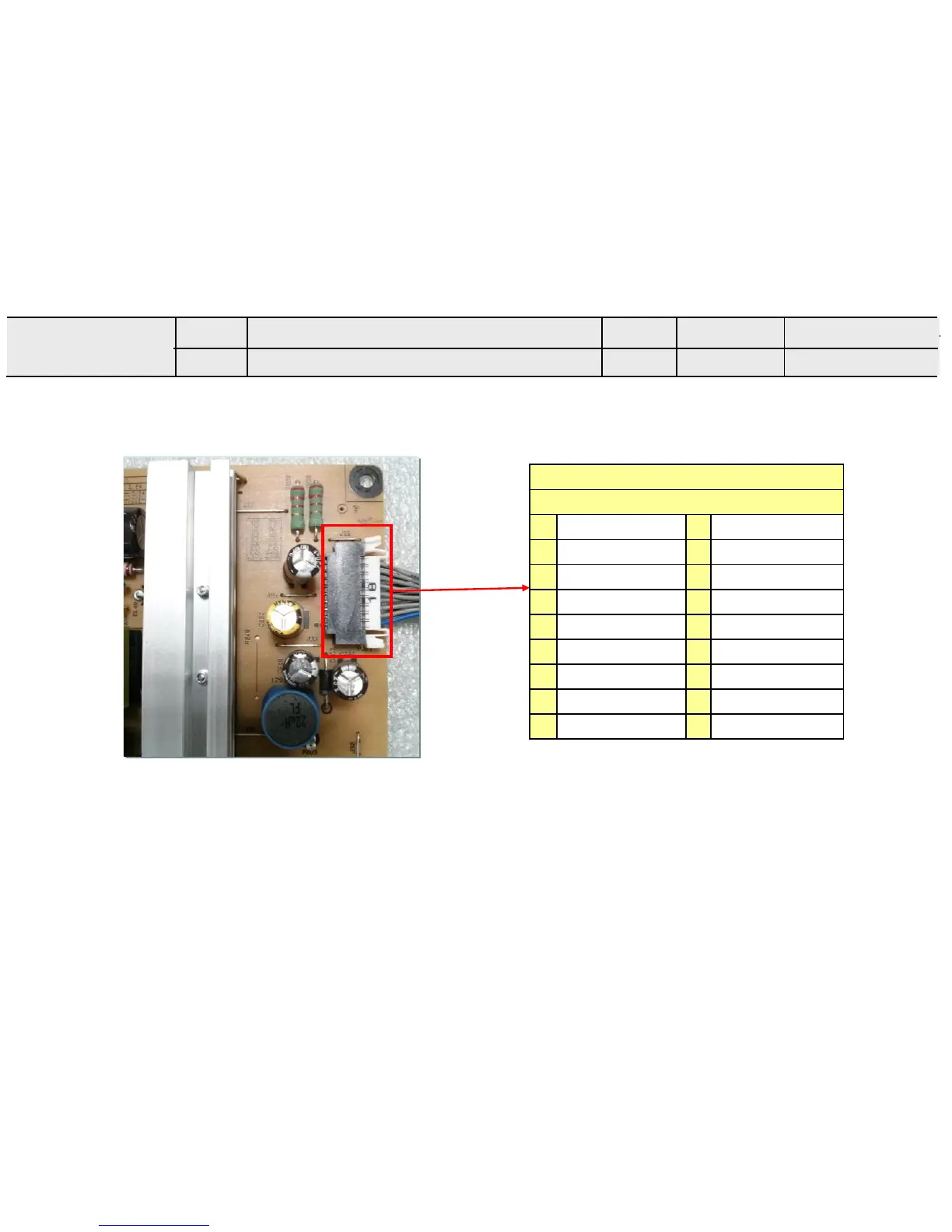

Power Board voltage measuring method
A. Video error_No video/ Audio
A4
Established
date
Revised
date
Error
symptom
Content
LCD TV
2012. 01 .14
18 Pin (Power Board ↔ Main Board)
SMAW200-H18S5
1
Power on
2
DRV ON
3
3.5V
4
PDIM#1
5
3.5V
6
3.5V
7
GND
8
PDIM#2
9
24V
10
24V
11
GND
12
GND
13 12V 14
12V
15 12V 16
NC
17 GND 18
GND
Check DC 3.5V, 12V, 24V
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
