LG 55LM640T User Manual

- 11 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

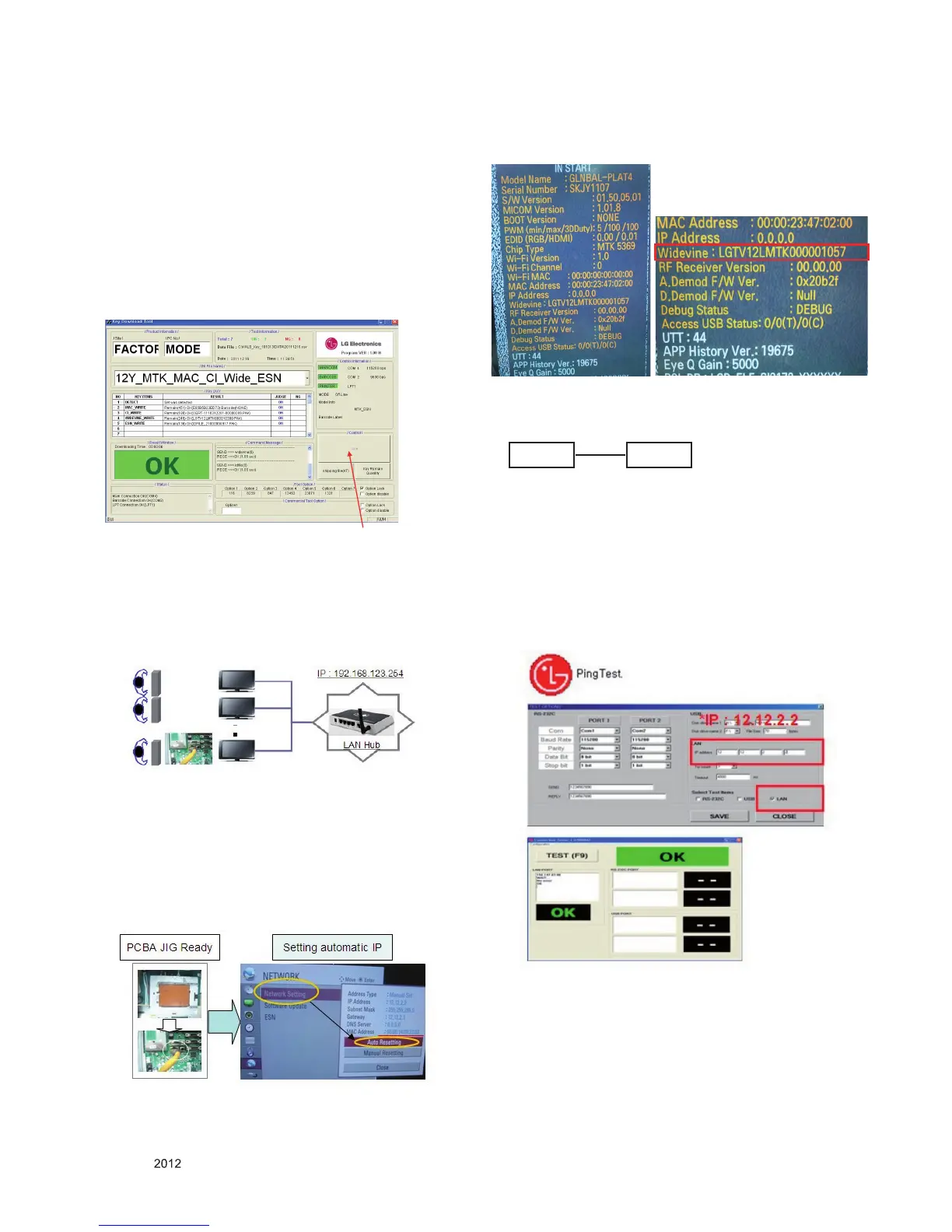

3.2. MAC address D/L, CI+ key D/L, Widevine
key D/L, ESN D/L
Connect: USB port
Communication Prot connection
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ check the test process: DETECT -> MAC -> CI -> Widevine
-> ESN
▪. Play: START
▪. Result: Ready, Test, OK or NG
▪. Printer Out (MAC Address Label)
3.3. LAN
3.3.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
3.3.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation
→ If automatic setting is finished, you confirm IP and MAC
Address.
3.3.3. WIDEVINE key Inspection
- Confirm key input data at the "IN START" MENU Mode.
3.4. LAN PORT INSPECTION(PING TEST)
Connect SET → LAN port == PC → LAN Port
3.4.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.4.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
Play: Start
G
SET PC

LG 55LM640T Specifications

General

3D	Yes
Annual energy consumption	104 kWh
Display diagonal	55 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-T2, ISDB-C
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
Lifestyle apps	Skype
Audio formats supported	AC3, MP3
Image formats supported	JPG
Video formats supported	DIVX, MPEG2, MPEG4
Product color	Black
Panel mounting interface	400 x 400, 400 x 600 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	71 W

Weight and Dimensions

Depth (with stand)	331 mm
Height (with stand)	795 mm
Depth (without stand)	33.6 mm
Width (without stand)	1232 mm
Height (without stand)	723 mm
