LG 55LM640T User Manual

- 13 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

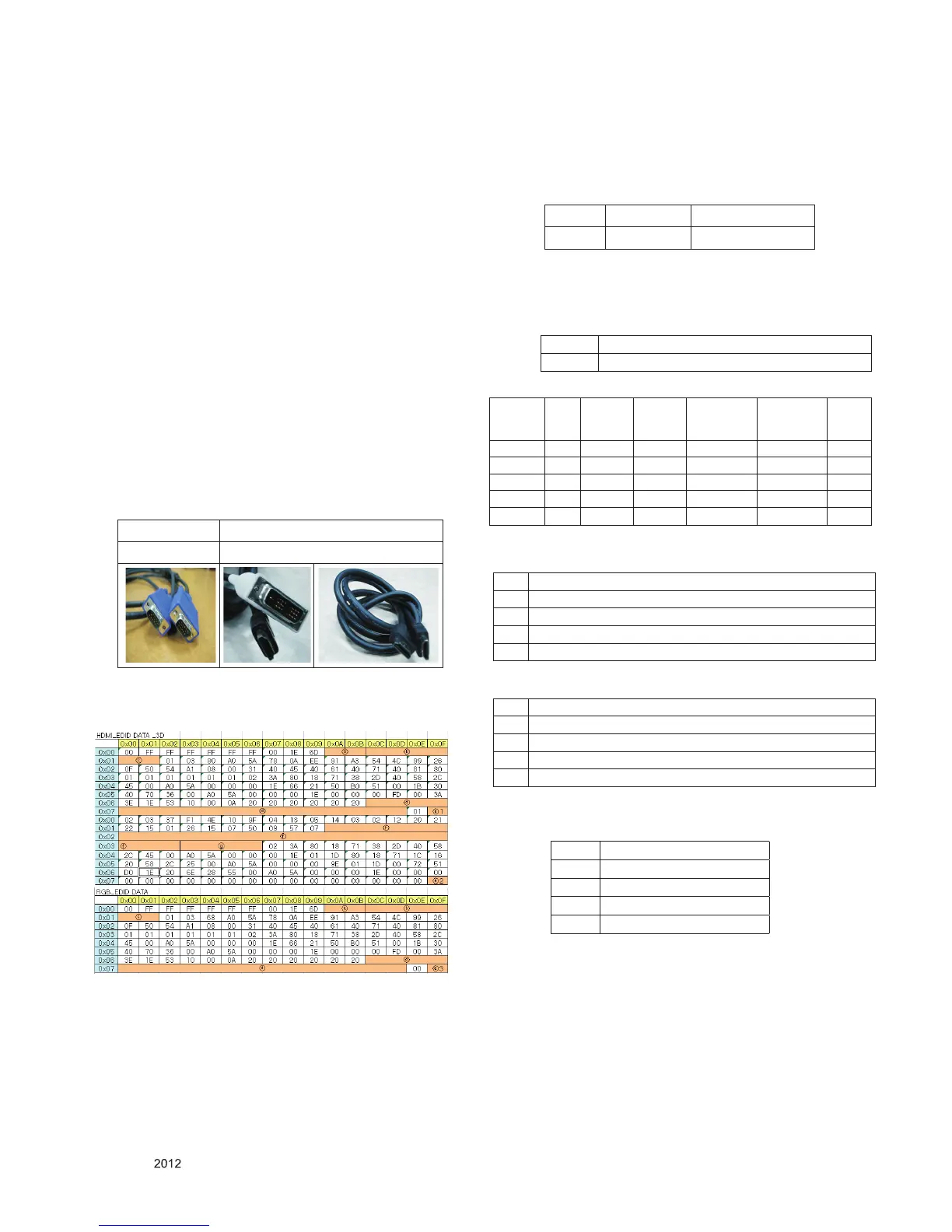

4. Manual Adjustment
* ADC adjustment is not needed because of OTP(Auto ADC
adjustment)
4.1 EDID(The Extended Display Identification
Data)/DDC(Display Data Channel) download
4.1.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of "Plug and Play".
4.1.2. Equipment
- Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
- Adjustment remote control
4.1.3. Download method
(1) Press "ADJ" key on the Adjustment remote control then
select "10.EDID D/L", By pressing "Enter" key, enter EDID
D/L menu.
(2) Select "Start" button by pressing "Enter" key, HDMI1/
HDMI2/ HDMI3/ HDMI4/ RGB are writing and display OK
or NG.
4.1.4. EDID DATA
(1) 3D EDID DATA
▪ Reference
- HDMI1 ~ HDMI4 / RGB
- In the data of EDID, bellows may be different by S/W or
Input mode.
ⓐ. Product ID
ⓑ. Serial No: Controlled on production line.
ⓒ. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2012' -> '16' fix
ⓓ. Model Name(Hex): LGTV
ⓔ. Checksum: Changeable by total EDID data.
ⓕ. Vendor Specific(HDMI)
1) Deep color (module 10bit)
2) None deep color (module 8bit)
ⓖ Colorimetry Data Block(HDMI)
- The Model supporting XvYcc(LM7600)
For Analog For HDMI EDID
D-sub to D-sub DVI-D to HDMI or HDMI to HDMI
HEX EDID Table DDC Function
0001 01 00 Analog/Digital
Chassis MODEL NAME(HEX)
LD22E 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
INPUT MODEL NAME(HEX)
HDMI1 78 03 0C 00 10 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI2 78 03 0C 00 20 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI3 78 03 0C 00 30 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI4 78 03 0C 00 40 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
INPUT MODEL NAME(HEX)
HDMI1 78 03 0C 00 10 00 80 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI2 78 03 0C 00 20 00 80 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI3 78 03 0C 00 30 00 80 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
HDMI4 78 03 0C 00 40 00 80 2D 20 C0 0E 01 4F 3F FC 08 10 18 10 06 10 16 10 28 10
INPUT MODEL NAME(HEX)
HDMI1 E3 05 03 01
HDMI2 E3 05 03 01
HDMI3 E3 05 03 01
HDMI4 E3 05 03 01
ⓔ1
ⓔ2
10 bit/
Xvycc
ⓔ2
8 bit/
Xvycc
ⓔ2
10 bit/
none XvYcc
ⓔ2
8 bit/
none XvYcc
ⓔ3
HDMI1 43 11 49 15 4D X
HDMI2 43 01 39 05 3D X
HDMI3 43 F1 29 F5 2D X
HDMI4 43 E1 19 E5 1D X
RGB X X X X X 5C

LG 55LM640T Specifications

General

3D	Yes
Annual energy consumption	104 kWh
Display diagonal	55 \
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	-
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-T2, ISDB-C
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
Lifestyle apps	Skype
Audio formats supported	AC3, MP3
Image formats supported	JPG
Video formats supported	DIVX, MPEG2, MPEG4
Product color	Black
Panel mounting interface	400 x 400, 400 x 600 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	71 W

Weight and Dimensions

Depth (with stand)	331 mm
Height (with stand)	795 mm
Depth (without stand)	33.6 mm
Width (without stand)	1232 mm
Height (without stand)	723 mm
