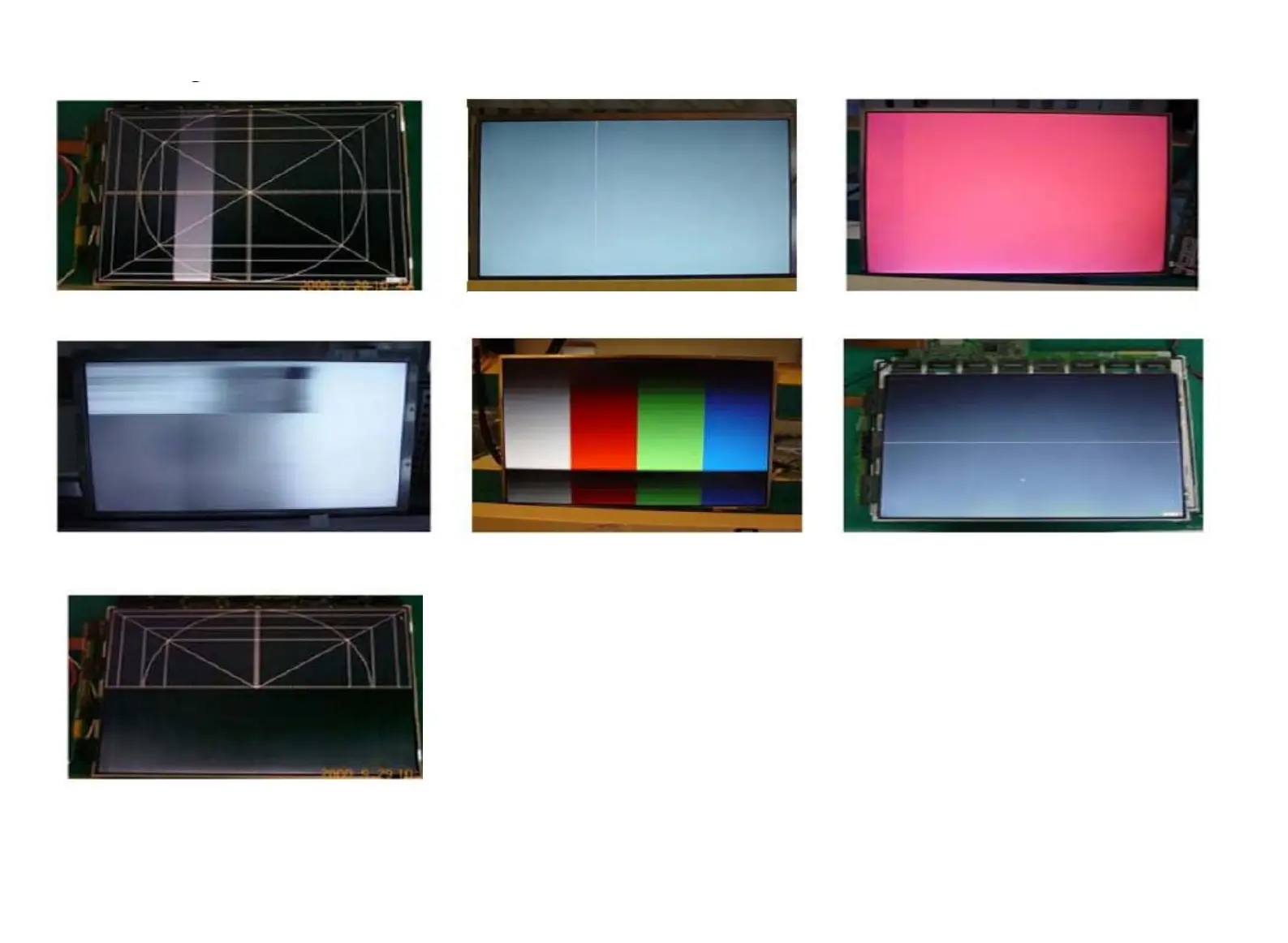

Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
Gate TAB IC Defect
Vertical Line
Source TAB IC Defect
Vertical Block
Source TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Horizontal line
Gate TAB IC Defect
Gate TAB IC Defect
Horizontal Block
Gate TAB IC Defect
Appendix : Exchange the Module (2)
A - 5/5
Un-repairable Cases
In this case please exchange the module.
