Service Manual 19

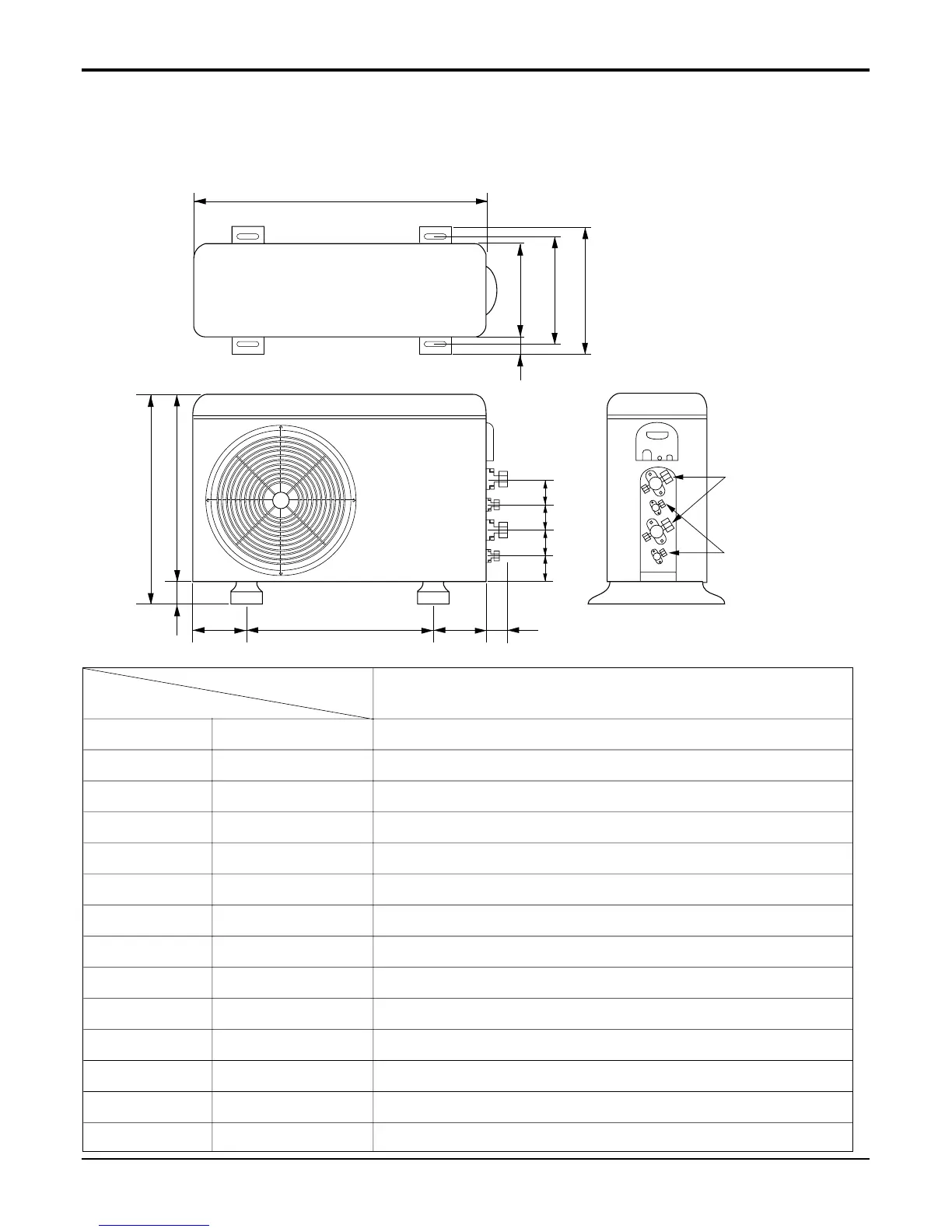

Dimensions
W
D
L1
L2
L3
L10
L5
L4
H
L11
L11
L11
L9
Gas side
3-Way valve
Liquid side
2-Way valve
L8L6L7
2-2. A2UC186FA0, A2UH186FA0
W mm 870
H mm 655
D mm 320
L1 mm 360
L2 mm 340
L3 mm 25
L4 mm 630
L5 mm 25
L6 mm 546
L7 mm 160
L8 mm 160
L9 mm 44
L10 mm 64.5
L11 mm 50
A2UC186FA0, A2UH186FA0
MODEL
DIM
